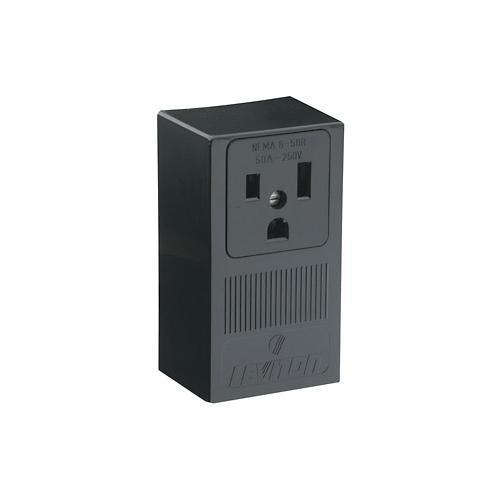

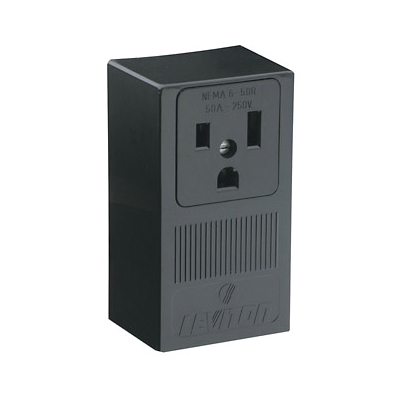

LEVITON 50-AMP 250-VOLT SURFACE RECEPTACLE LEV 5378
Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477982358
-
Manufacturer Part Number5378-P00
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
TypeGrounding Single
-
GradeIndustrial
-
NEMA RatingNEMA 6-50R
-
Voltage Rating250 V AC
-
Amperage Rating50 A
-
Horsepower3 hp
-
Number of Poles2
-
Dimensions4.82 in H x 2.68 in W x 2.04 in D
-
Number of Wires3
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to no 4 AWG conductors
- Terminals marked for easy identification and fast wiring
- All mounting hardware included
- Flush mount devices fit single or 2-gang outlet boxes
- Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 792TU6 |
-
Alternative Part Number14862382
-
UNSPSC39121406
-
IDEA Index ID14862382
-
Package DescriptionEACH
-
Standards/ApprovalsUL 498 File No. E13399|CSA C22.2 No. 42 File No. 152105|ANSI C-73|NOM 057|NEMA WD-6|UL 94 V-2 Flammability Rating
-
Warranty10 years Limited
-
Instruction/Installation Manual
-
Catalog
