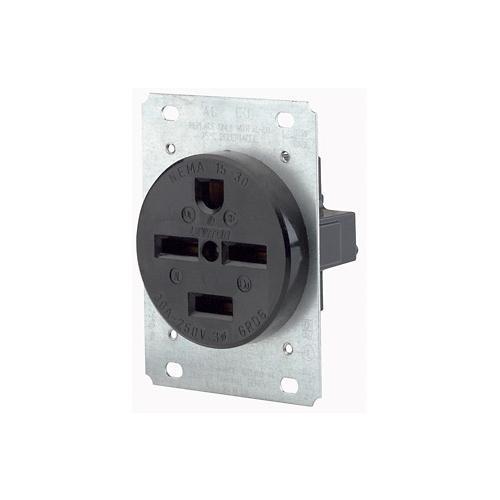

Leviton® 8430 Extra Heavy Duty Grounding Straight Blade Power Receptacle, 250 V AC, 30 A, 3 Poles, 4 Wires, Black
Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477843307
-
Manufacturer Part Number8430
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
TypeExtra Heavy Duty
-
GradeCommercial/Industrial
-
NEMA RatingNEMA 15-30R
-
Voltage Rating250 V AC
-
Amperage Rating30 A
-
Horsepower3 hp
-
Number of Poles3
-
Dimensions3.75 in H x 2.5 in W x 2.1 in D
-
Number of Wires4
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to no 4 AWG conductors
- Terminals marked for easy identification and fast wiring
- All mounting hardware included
- Flush mount devices fit single or 2-gang outlet boxes
- Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
- Maximum 30 deg C after 50 cycles OL at 150% rated current temperature rise
- 3-phase
- Fits any wallplate with 2.465 in Dia center hole
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5HZN3 |
-
Alternative Part Number7342108
-
UNSPSC39121406
-
IDEA Index ID7342108
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399/E13393|UL94 V-2 Flammability Rating
-
Warranty10 years
-
Specification Sheet
-
Specification Sheet
-
Instruction/Installation Manual
