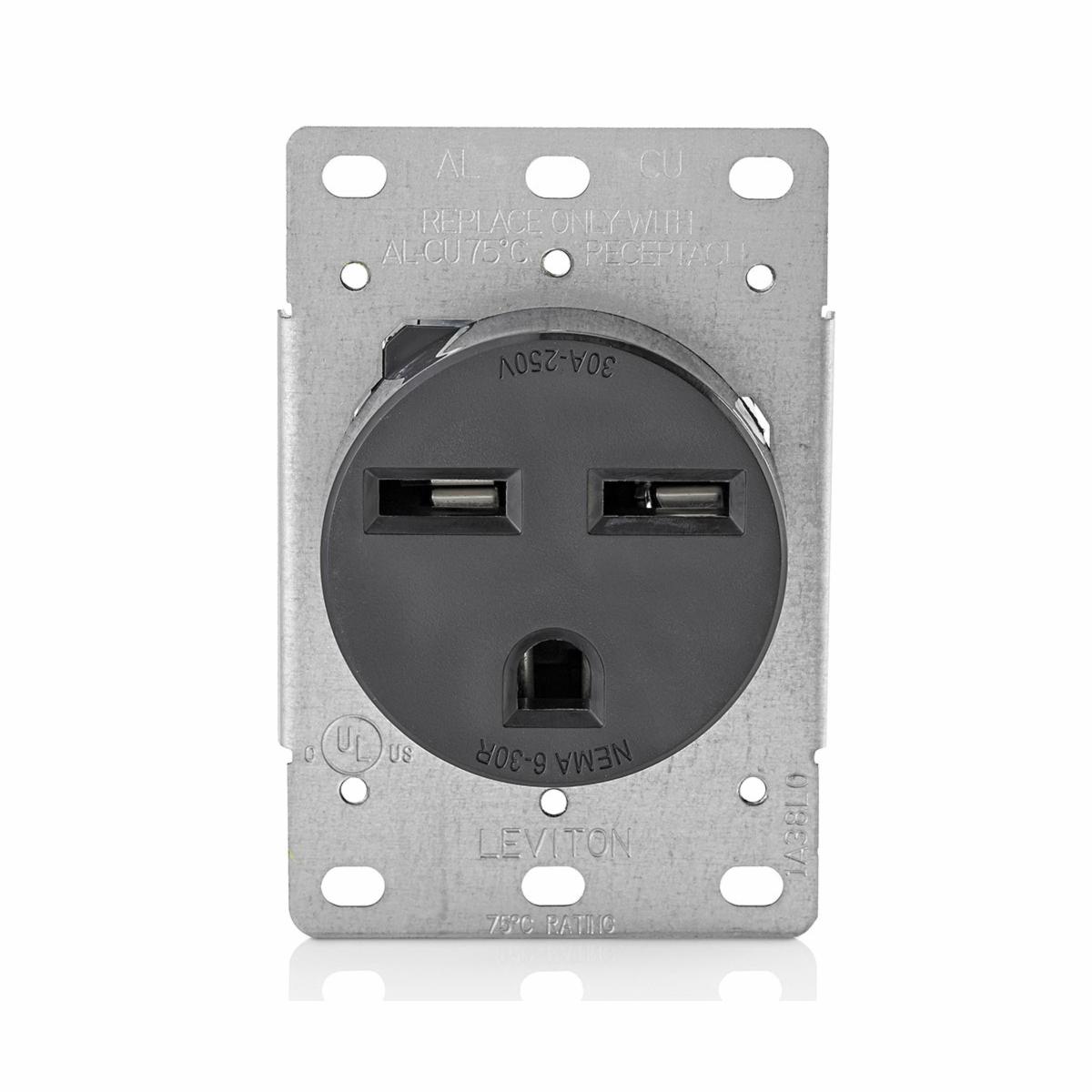

Leviton® 5372 Extra Heavy Duty Grounding Straight Blade Power Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, Black
Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade. These industrial grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477823507
-
Manufacturer Part Number5372
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
TypeExtra Heavy Duty Grounding
-
GradeCommercial
-
NEMA RatingNEMA 6-30R
-
Voltage Rating250 V AC
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions3.75 in H x 2.5 in W x 2.1 in D
-
Number of Wires3
- Flush mounting
- Upto 4 AWG wire
- 1 phase
- 2000 V dielectric strength
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 5HZL9 |
-
Alternative Part Number12167952
-
UNSPSC39121406
-
IDEA Index ID12167952
-
Package DescriptionEACH
-
Standards/ApprovalsUL 498 File No. E13399|CSA C22.2 No. 42 File No. 152105|NEMA WD-1/WD-6|NOM 057 Certified|UL94-V-2 Flammability Rating|ISO 9001 Certified|ANSI C-73
-
Warranty10 Years Limited
-
Specification Sheet
-
Instruction/Installation Manual
