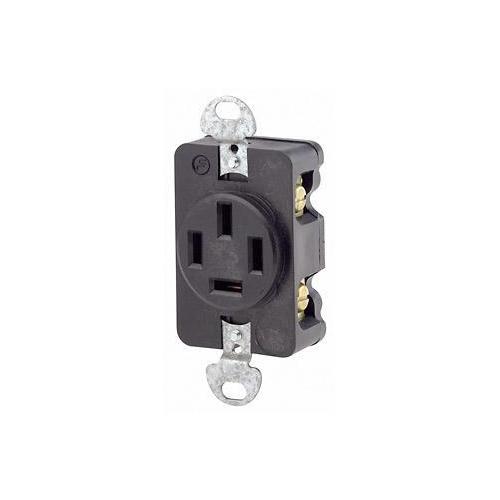

Leviton® 7250-FR 3-Phase Non-Grounding Single Straight Blade Receptacle, 120/208 V AC, 20 A, 4 Poles, 4 Wires, Black
Built of durable thermoplastic, Leviton® power receptacles - in flush mount, surface mount and panel mount versions - come equipped with heavy gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Leviton® wide range of 2.15 in dia wallplates and mounting hardware is included.
-
BrandLeviton®
-
UPC078477808733
-
Manufacturer Part Number7250-FR
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
Type3-Phase Non-Grounding Single
-
GradeCommercial
-
NEMA RatingNEMA 18-20R
-
Voltage Rating120/208 V AC
-
Amperage Rating20 A
-
Horsepower2 hp
-
Number of Poles4
-
Number of Wires4
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Large triple wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Box mounting
- Non-grounding
- 3-phase
- 2000 VAC minimum dielectric strength
- Galvanized steel strap
- 14 to 6 AWG wire terminal
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25LK73 |
-
Alternative Part Number7332107
-
UNSPSC39121406
-
IDEA Index ID7332107
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399/E13393|UL94 V-2 Flammability Rating
-
Warranty10 years Limited
-
Specification Sheet
