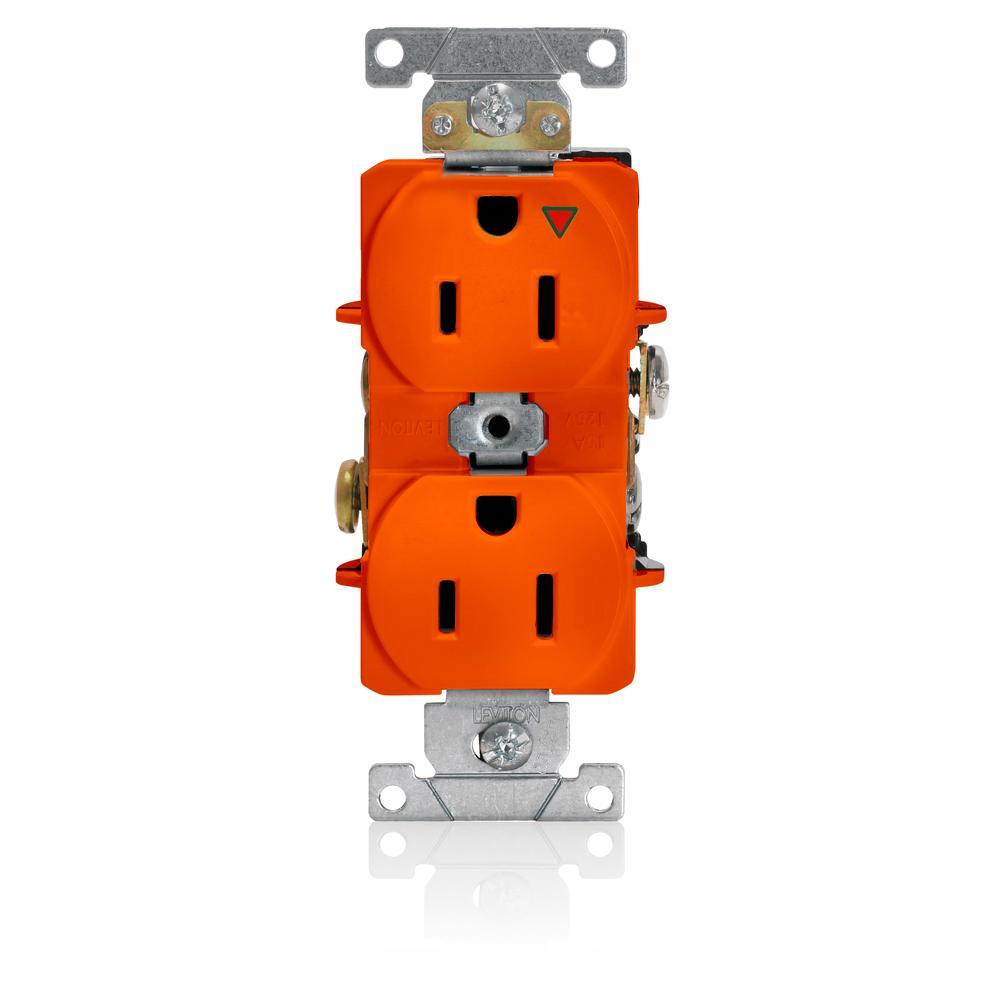

Leviton® 5262-IG Heavy Duty Isolated Ground Straight Blade Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Orange
Leviton® extra heavy-duty industrial grade series receptacles withstand the rigors of the harshest environments, such as those found in factories, schools and municipal buildings. These specification grade devices are the best choice where durability, safety and reliability are of utmost importance.
-
BrandLeviton®
-
UPC078477052440
-
Manufacturer Part Number5262-IG
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialThermoplastic
-
ColorOrange
-
TypeHeavy Duty Isolated Ground
-
GradeIndustrial/Specification
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Horsepower1/2 hp
-
Number of Poles2
-
Dimensions4.06 in H x 1.33 in W x 1.12 in D
-
Number of Wires3
-
EnclosureNEMA WD-1/WD-6
- Impact-resistant thermoplastic nylon cover and body
- Smooth face does not collect dirt
- Four corner latches securely fasten face
- Large, triple-wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-off tabs for easy two-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6LN32 |
-
Alternative Part Number7332207
-
UNSPSC39121406
-
IDEA Index ID7332207
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 42 File No. 152105|NOM 057|UL Federal Specification WC-596 File No. E13399|UL 498 File No. E13399|UL 94 Flammability Rating
-
Warranty10 years Limited
-
