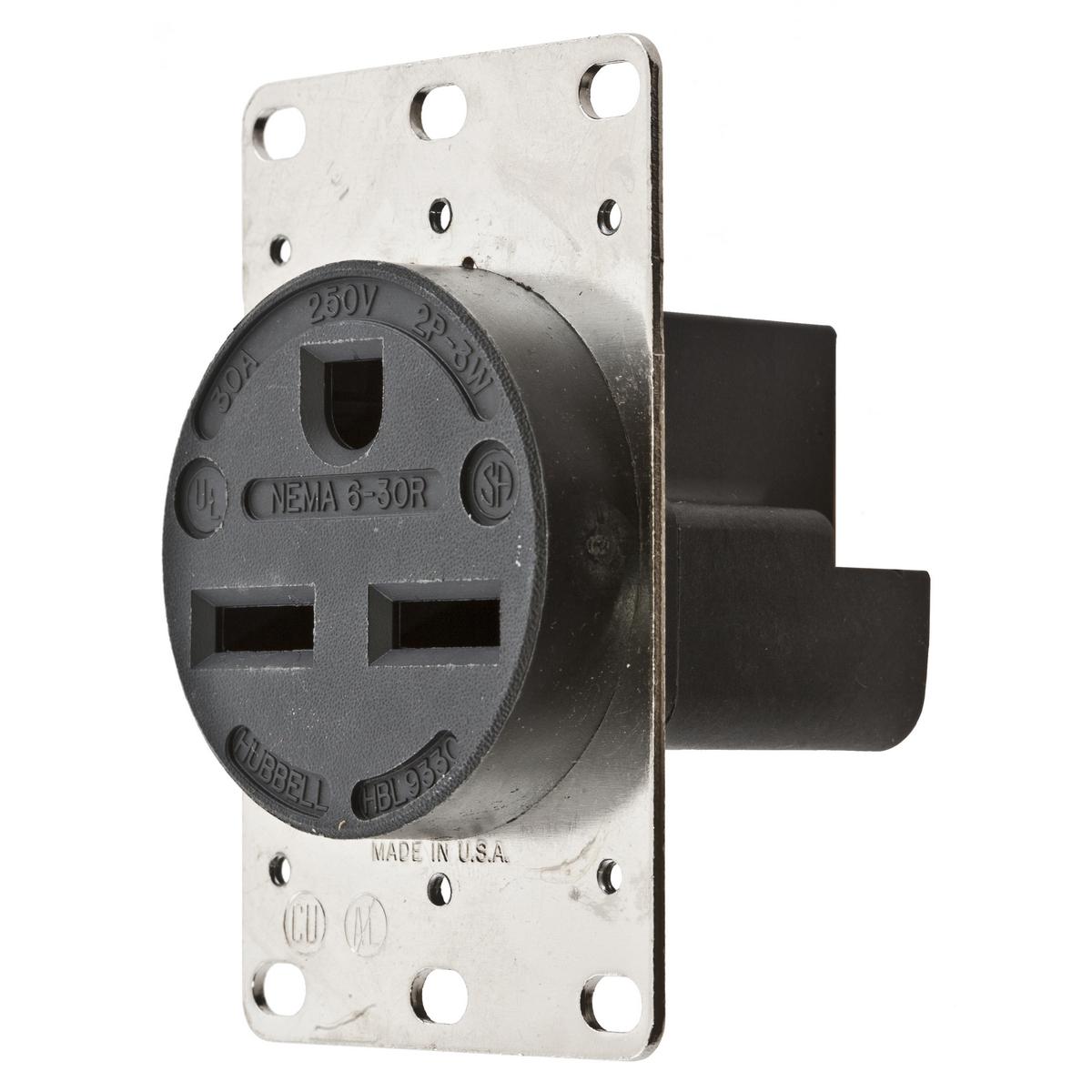

Hubbell Wiring Device-Kellems HBL9330 HBL® 1-Phase Grounding Heavy Duty Standard Single Screw Mount Straight Blade Receptacle, 250 V AC, 30 A, 2 Poles, 3 Wires, Black
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 250V, 6-30R, Black, Single Pack.
-
BrandHubbell Wiring Device-Kellems
-
UPC783585015231
-
Manufacturer Part NumberHBL9330
-
CountryUSA|Canada
-
MaterialThermoplastic/Composite
-
ColorBlack
-
GradeIndustrial
-
NEMA Rating6-30R
-
Amperage Rating30 A
-
Horsepower2 hp
-
Dimensions3.28 x 2.25 x 2.23 in
-
EnclosureIP20
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeBack and Side Wire/Screw
-
Type1-Phase Grounding Heavy Duty Standard Single Screw Mount
-
Voltage Rating250 V AC
-
Number of Poles2
-
Number of Wires3
-
SeriesHBL®
- Sequenced contacts assure protection
- One piece design power and ground contacts
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5Z895 |
-
Alternative Part Number11826496|8945194
-
UNSPSC39121406
-
IDEA Index ID8945194
-
Package DescriptionEACH
-
Standards/ApprovalsUL 498 File No. E2186 Listed|UL 94 V-0 Flammability Rating|CSA Certified|NEMA WD1/WD5|RoHS Compliant
-
WarrantyLimited
-
