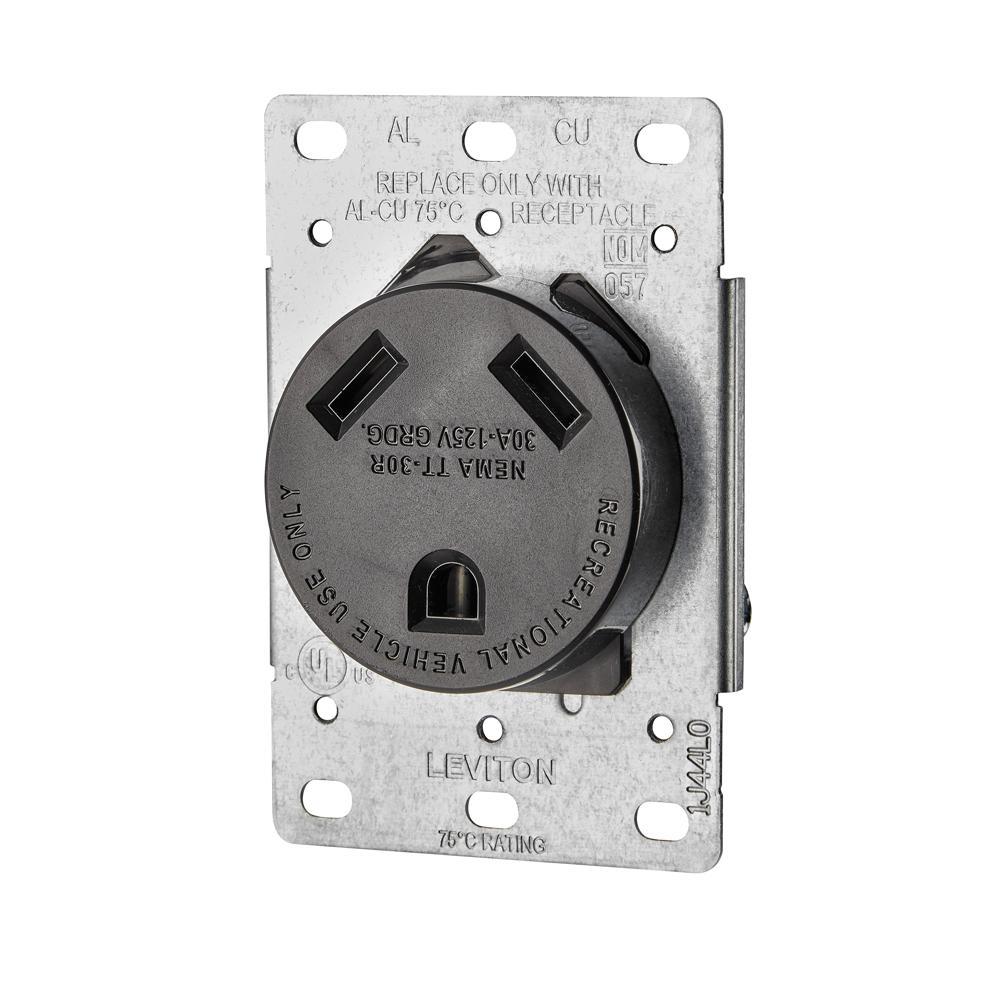

Leviton® 7313 Flush Mount Grounding Straight Blade Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Built of durable thermoplastic, Leviton® power receptacles - come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings. Flush mount receptacles fit Levitons wide range of 2.15 in diameter wallplates and mounting hardware is included.
-
BrandLeviton®
-
UPC078477259658
-
Manufacturer Part Number7313
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
TypeFlush Mount Grounding
-
GradeCommercial
-
NEMA RatingNEMA TT-30R
-
Voltage Rating125 V AC
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions3.7 in H x 2.25 in W x 1.75 in D
-
Number of Wires3
- Flush mounting
- Grounding
- 2000 V (min) dielectric strength
- UL 94V-2 flammability rated
- Industrial grade
- Galvanized steel strap material
- 14 to 6 AWG wire
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 792TY1 |
-
Alternative Part Number7315463
-
UNSPSC39121406
-
IDEA Index ID7315463
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 File No. 42|CSA File No. 152105|NEMA WD-6|NOM 057 Certified|UL 498|UL File No. E13399|UL File No. E13393
-
Warranty10 Years Limited
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
