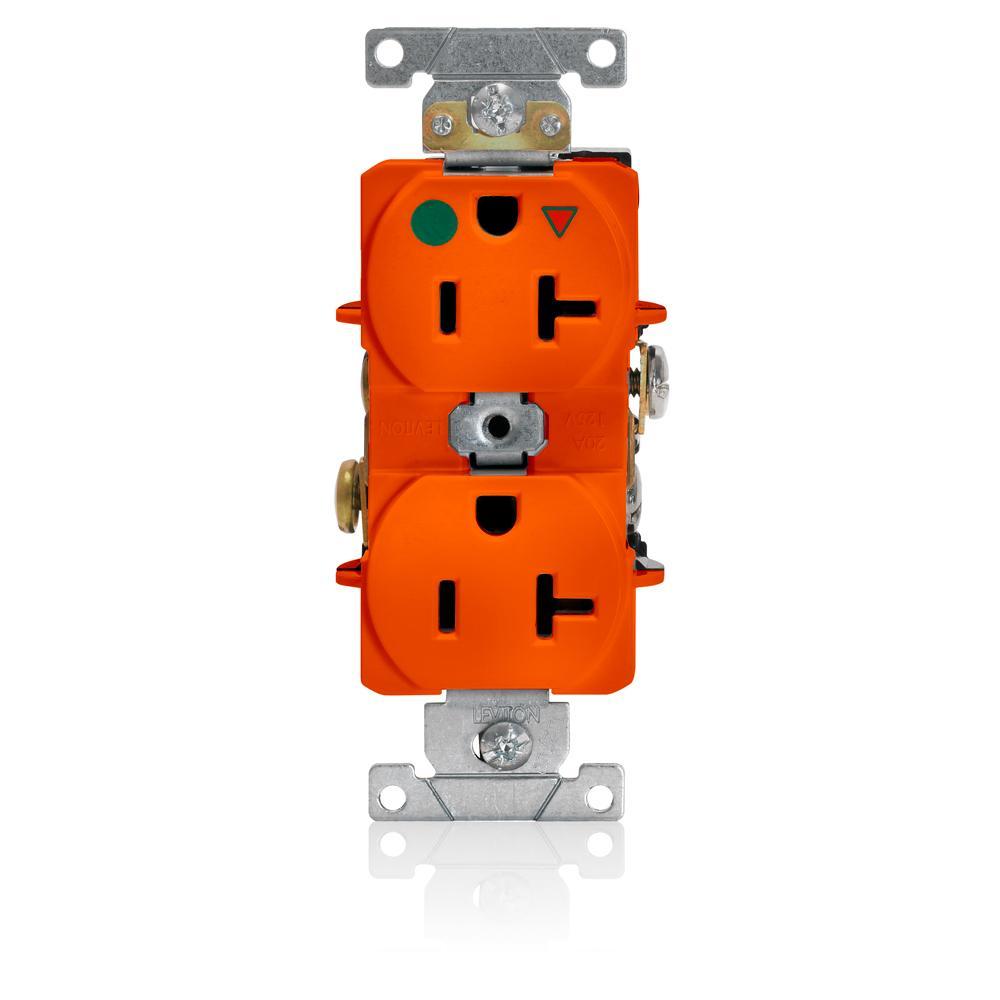

Leviton® 8300-OIG 1-Phase Duplex Heavy Duty Isolated Grounding Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Orange
Leviton® offers a large selection of 15 and 20 A devices including residential, commercial and industrial grade receptacles, plugs and connectors, snap-in devices, as well as flanged inlets and outlets.
-
BrandLeviton®
-
UPC078477057384
-
Manufacturer Part Number8300-OIG
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialThermoplastic
-
ColorOrange
-
Type1-Phase Duplex Heavy Duty Isolated Grounding
-
GradeHospital
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
Horsepower1 hp
-
Number of Poles2
-
Dimensions46 in H x 1.53 in W x 1.11 in D
-
Number of Wires3
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Extra heavy duty triple-wipe, brass T contacts for superior contact and conductivity
- High performance brass #10-32 terminal screws to reduce conductor oxidation
- Back and side wire ground termination brass strap version
- Back and side wiring options
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Power Indication™ provides permanent green dot lens with 100000 hr LED status indicator
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1GC29 |
-
Alternative Part Number7334007
-
UNSPSC39121406
-
IDEA Index ID7334007
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498HG File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 Years
-
Specification Sheet
-
Instruction/Installation Manual
-
Technical Bulletin
-
Technical Bulletin
