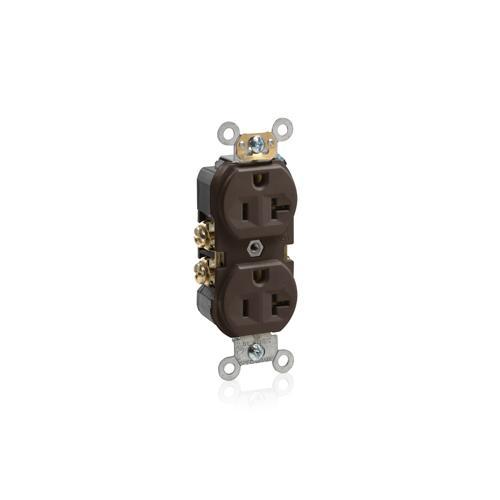

Leviton® BR20 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown
Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477819791
-
Manufacturer Part NumberBR20
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialNylon
-
ColorBrown
-
Type1-Phase Duplex Heavy Duty
-
GradeCommercial
-
NEMA RatingNEMA 5-20R
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
Horsepower1 hp
-
Number of Poles2
-
Dimensions46 in H x 1.56 in W x 19 in D
-
Number of Wires3
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
- Self-grounding
- 2000 VAC minimum dielectric strength
- Narrow body
- Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
- 14 to 10 AWG wire terminal
- Brass triple wipe 0.031 THK line contacts
- #10-32 brass terminal screws
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25HE61 |
-
Alternative Part Number7336228
-
UNSPSC39121406
-
IDEA Index ID7336228
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Warranty10 years
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
