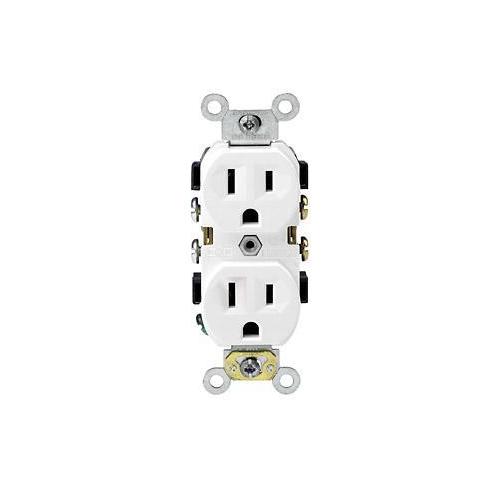

Leviton® BR15-W 1-Phase Heavy Duty Narrow Body Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
-
BrandLeviton®
-
UPC078477819777
-
Manufacturer Part NumberBR15-W
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialNylon
-
ColorWhite
-
Type1-Phase Heavy Duty Narrow Body
-
GradeCommercial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Horsepower1/2 hp
-
Number of Poles2
-
Dimensions46 in H x 1.56 in W x 19 in D
-
Number of Wires3
-
EnclosureNEMA WD-1/WD-2/WD-6
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25HE60 |
-
Alternative Part Number7336215
-
UNSPSC39121406
-
IDEA Index ID7336215
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 File No. 42|CSA File No. 152105|NOM 057 Certified|UL 498|UL File No. E13399|UL 94
-
Warranty10 Years
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
