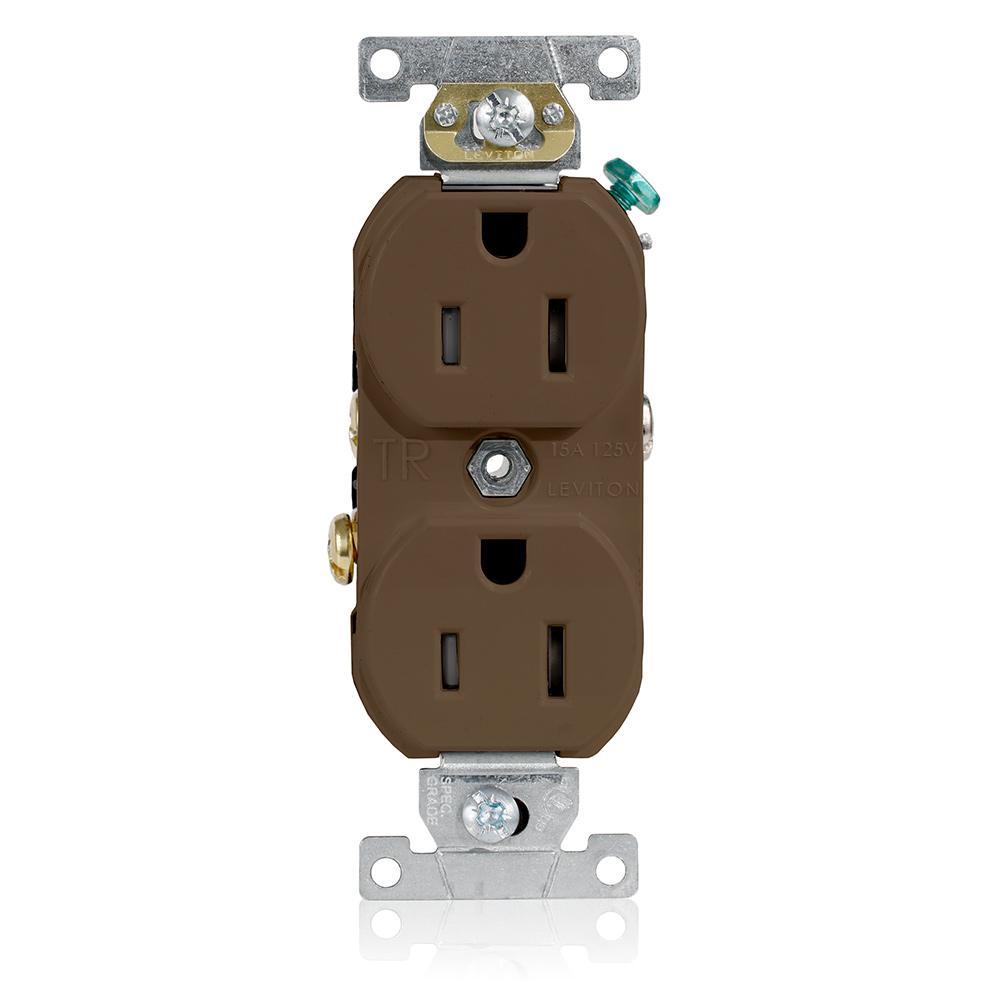

Leviton® TBR15 1-Phase Duplex Tamper Resistant Straight Blade Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Brown
Leviton® offers a large selection of 15 and 20 A commercial spec grade receptacles, including Decora® devices available in a wide variety of colors, wiring options and other features. Leviton® commercial receptacles are manufactured to withstand the demands of commercial and institutional applications. These commercial receptacles provide long lasting service life and are a cost saving alternative to the industrial devices.
-
BrandLeviton®
-
UPC078477392027
-
Manufacturer Part NumberTBR15
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialNylon
-
ColorBrown
-
Type1-Phase Duplex Tamper Resistant
-
GradeCommercial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions46 in H x 1.56 in W x 19 in D
-
Number of Wires3
- Manufactured to withstand the demands of commercial and institutional applications
- 2000 VAC minimum dielectric strength
- Brass 0.031 THK line contacts
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
- Self-grounding
- Tamper resistant
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25JV22 |
-
Alternative Part Number9866836|12135562
-
UNSPSC39121406
-
IDEA Index ID9866836
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C-73|CSA C22.2 No. 42 File No. 152105|ANSI C73|UL Federal Specification WC-596 File No. E13399|NOM 057 Certified|NEMA WD2/WD-6 Compliant|UL 94 V-2 Flammability Rating
-
Warranty10 Years
-
Specification Sheet
-
Owners/User Manual
-
Owners/User Manual
