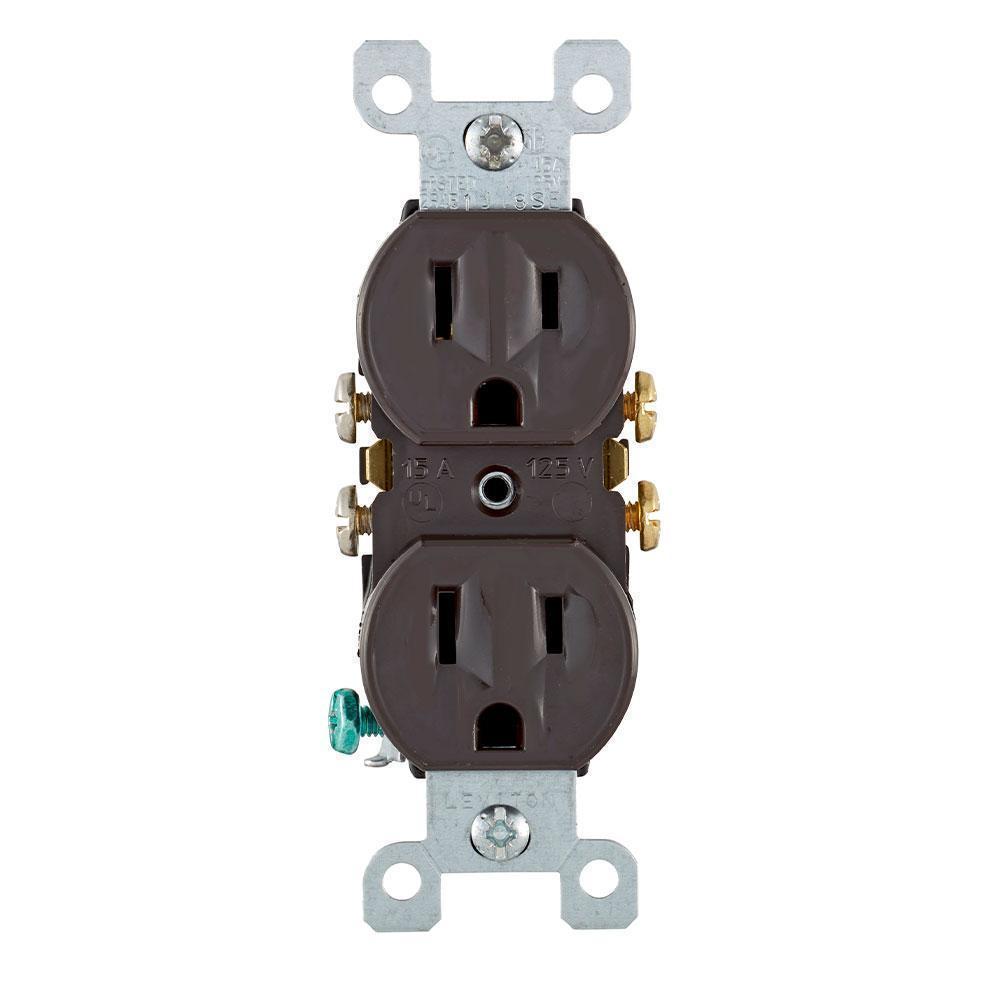

LEVITON BROWN DUPLEX ELECTRICAL RECEPTACLE LEV 5320-CP
Leviton® comprehensive residential grade receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora® and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two circuit conversion.
-
BrandLeviton®
-
UPC078477151303
-
Manufacturer Part Number5320-CP
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeQuick-Wire® Push-In/Side Wire
-
MaterialThermoplastic
-
ColorBrown
-
TypeDuplex Grounding
-
GradeCommercial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions4.2 in H x 1.33 in W x 19 in D
-
Number of Wires3
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25KU42 |
-
Alternative Part Number7353645
-
UNSPSC39121406
-
IDEA Index ID7353645
-
Package DescriptionEACH
-
Standards/ApprovalsNOM Certified (057);CSA Certified (File LR-406);UL Listed 498;UL Listed 1561
-
Warranty2 years Limited
-
Specification Sheet
-
Specification Sheet
