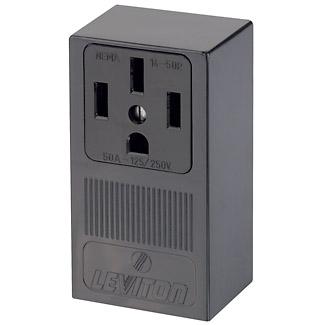

Leviton® 55050 Grounding Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
Built of durable thermoplastic, Leviton® power receptacles - come equipped with heavy gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.
-
BrandLeviton®
-
UPC078477100257
-
Manufacturer Part Number55050
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeSide Wire
-
MaterialThermoplastic
-
ColorBlack
-
TypeGrounding
-
GradeCommercial
-
NEMA RatingNEMA 14-50R
-
Voltage Rating125/250 V AC
-
Amperage Rating50 A
-
Horsepower7-1/2 hp
-
Number of Poles3
-
Dimensions4.82 in H x 2.68 in W x 24 in D
-
Number of Wires4
- Heavy gauge, double wipe copper alloy contacts
- Easy-to-wire terminals accept up to no 4 AWG conductors
- Terminals marked for easy identification and fast wiring
- All mounting hardware included
- Flush mount devices fit single or 2-gang outlet boxes
- Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25MG72 |
-
Alternative Part Number7341039
-
UNSPSC39121406
-
IDEA Index ID7341039
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399/E13393|UL94 V-2 Flammability Rating
-
Warranty10 Years Limited
-
Specification Sheet
-
Instruction/Installation Manual
