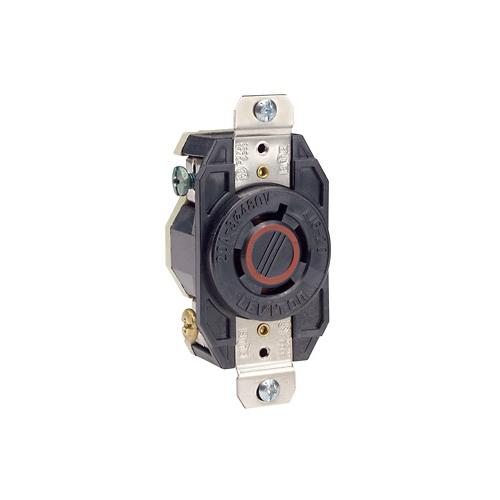

LEVITON 20-AMP 4W FLUSH LOCKING RECEPTACLE LEV 2430
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
-
BrandLeviton®
-
UPC078477809365
-
Manufacturer Part Number2430
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialPolybutylene Terephthalate
-
ColorBlack
-
Type3-Phase Y Grounding
-
GradeIndustrial
-
NEMA RatingNEMA L16-20R
-
Voltage Rating480 V AC
-
Amperage Rating20 A
-
Horsepower5 hp
-
Number of Poles3
-
Dimensions3.63 in H x 1.69 in W x 1.31 in D
-
Number of Wires4
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5HYP9 |
-
Alternative Part Number7332376
-
UNSPSC39121406
-
IDEA Index ID7332376
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
-
RoHS
-
Instruction/Installation Manual
