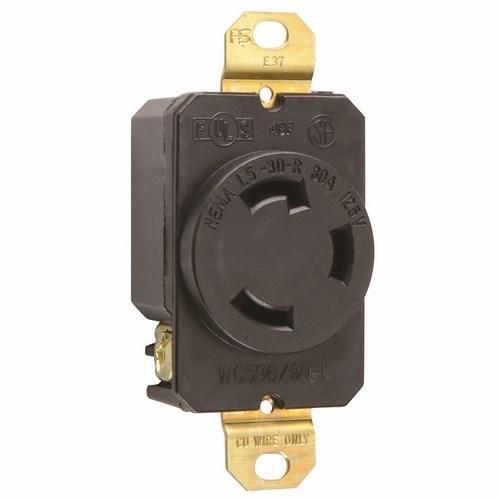

Pass & Seymour® Turnlok® L530-R Single Locking Receptacle, 125 V AC, 30 A, 2 Poles, 3 Wires, Black
Pass & Seymour® Turnlok® L530-R Single Locking Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
-
BrandPass & Seymour®
-
UPC785007253054
-
Manufacturer Part NumberL530R
-
CountryUSA
-
Temperature Rating-40 to 75 deg C
-
MaterialNylon
-
ColorBlack
-
TypeSingle
-
GradeIndustrial
-
NEMA RatingNEMA L5-30R
-
Voltage Rating125 V AC
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions3.3 in Dia x 3.28 in H x 1.61 in W x 1.28 in D
-
Number of Wires3
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength
- Face color coding by voltage facilitates locating and mating of proper devices
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands
- Side and external screw-pressure-plate back wire capability
-
Alternative Part Number8678985
-
UNSPSC39121406
-
IDEA Index ID8678985
-
Package DescriptionEACH
-
Standards/ApprovalsUL 498
-
Catalog
-
Specification Sheet
-
Owners/User Manual
