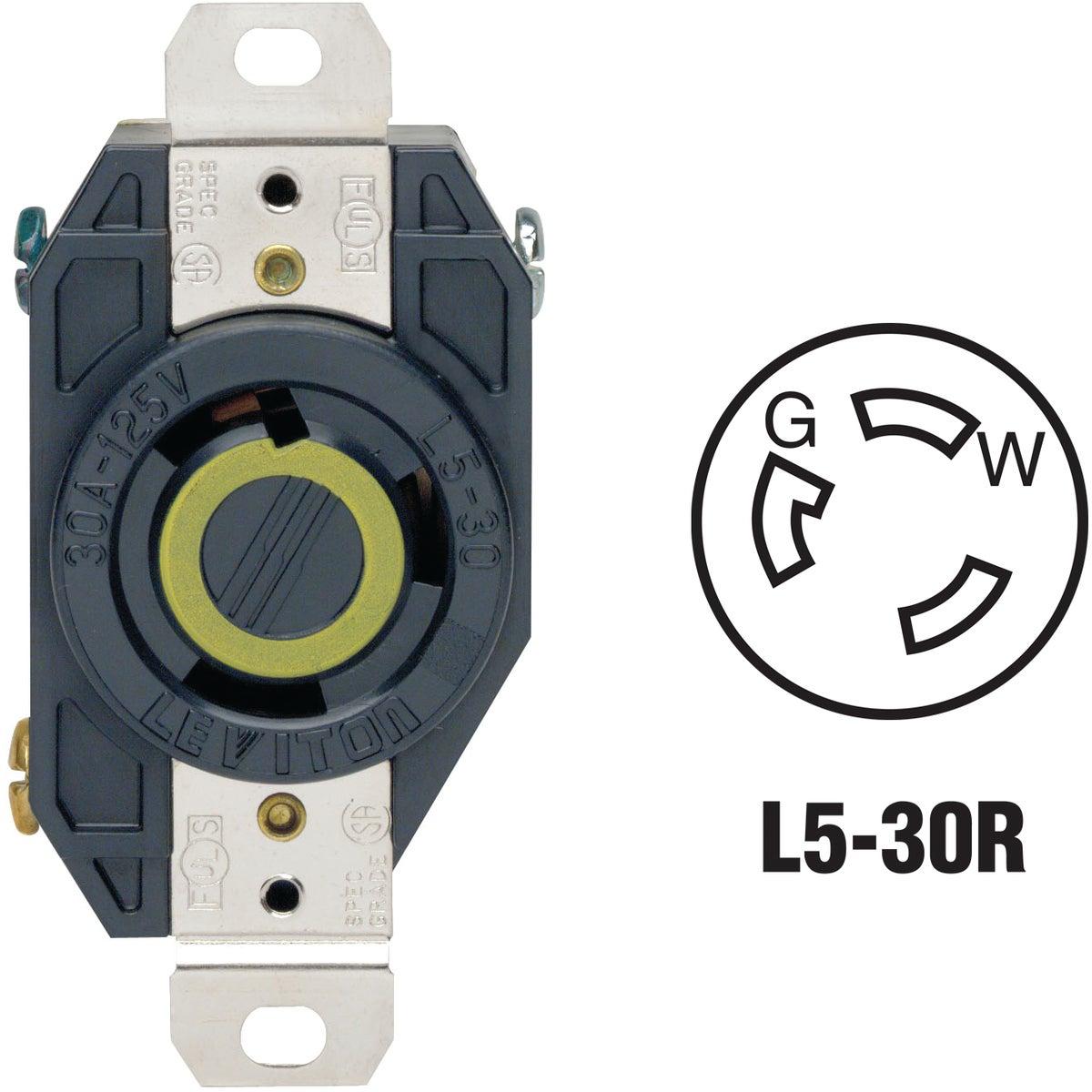

Leviton® 2610 Grounding Locking Receptacle, 125 V AC, 30 A, 2 Poles, 3 Wires, Black
Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
-
BrandLeviton®
-
UPC078477809471
-
Manufacturer Part Number2610
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeBack/Side Wire
-
MaterialPolybutylene Terephthalate
-
ColorBlack
-
TypeGrounding
-
GradeIndustrial
-
NEMA RatingNEMA L5-30R
-
Voltage Rating125 V AC
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions3.63 in H x 1.69 in W x 1.31 in D
-
Number of Wires3
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1PKJ7 |
| 501735 |
-
Alternative Part Number7332468
-
UNSPSC39121406
-
IDEA Index ID7332468
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
-
Specification Sheet
