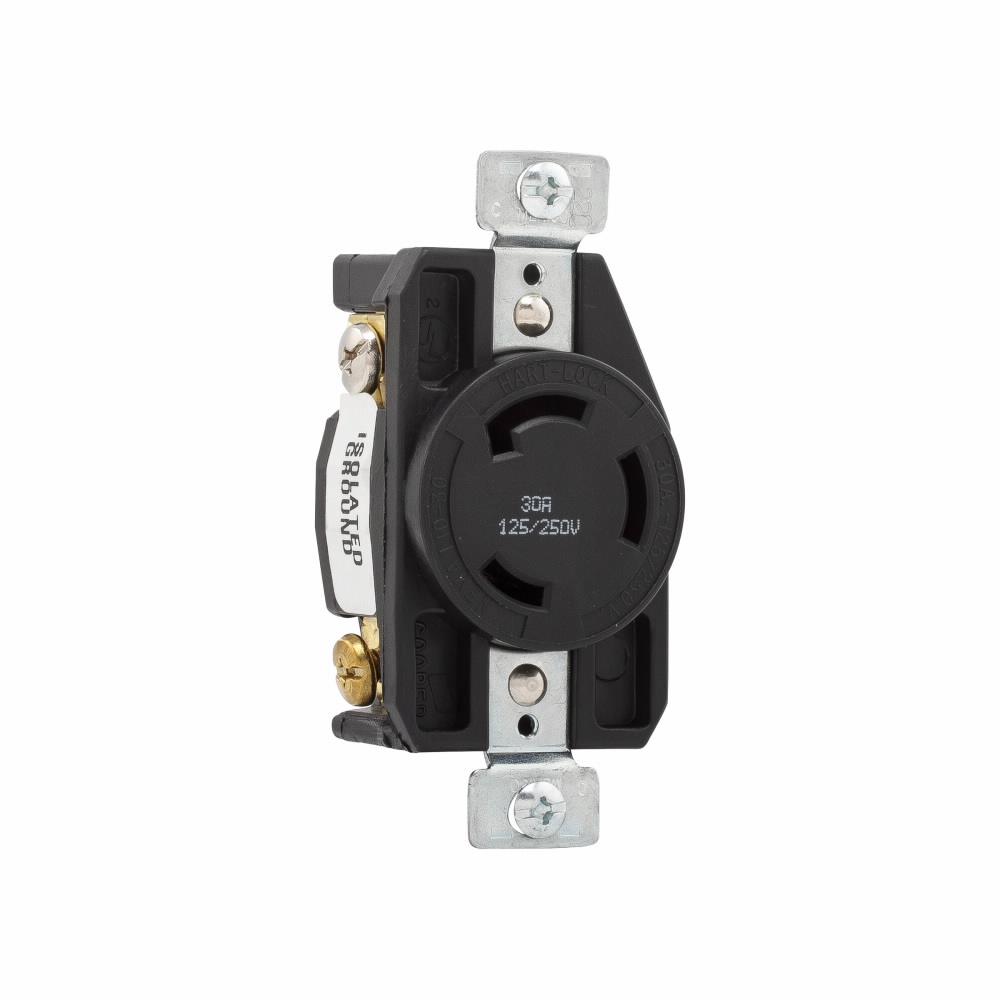

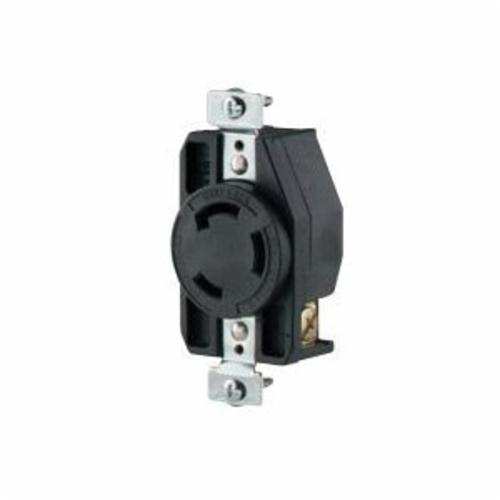

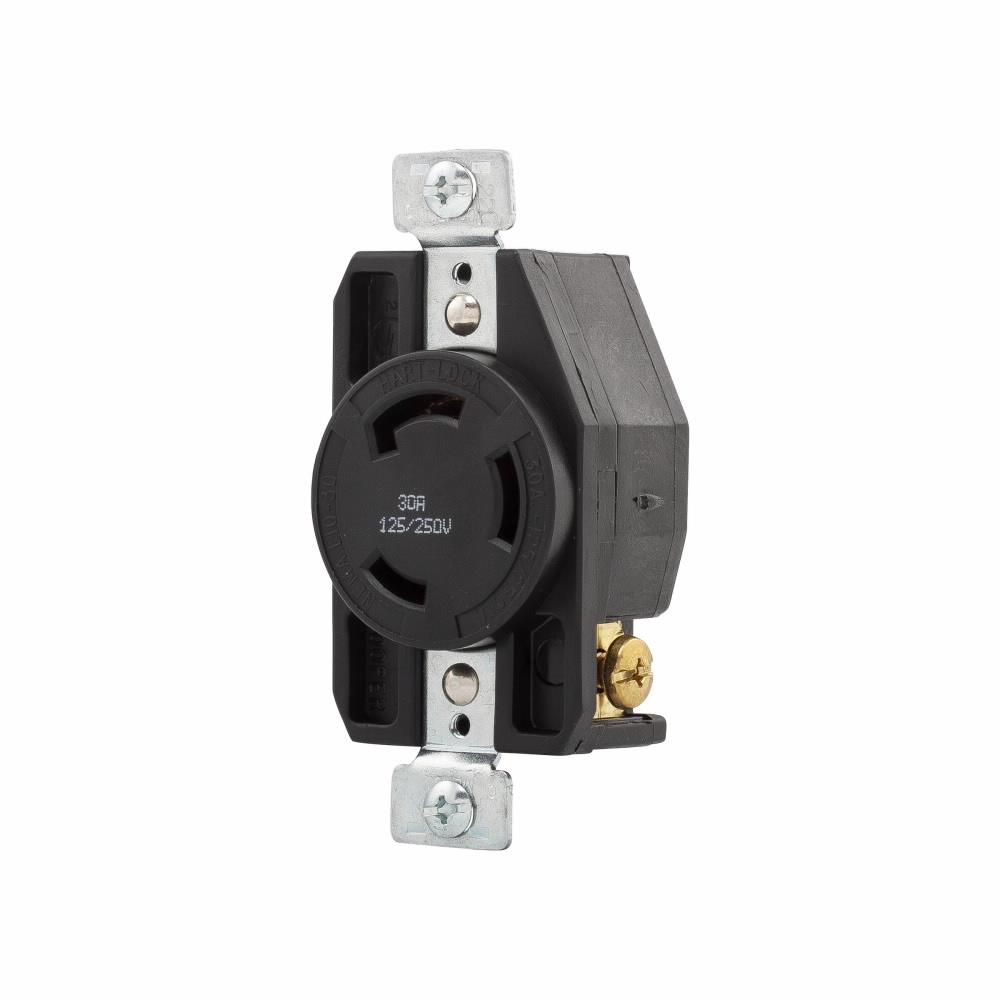

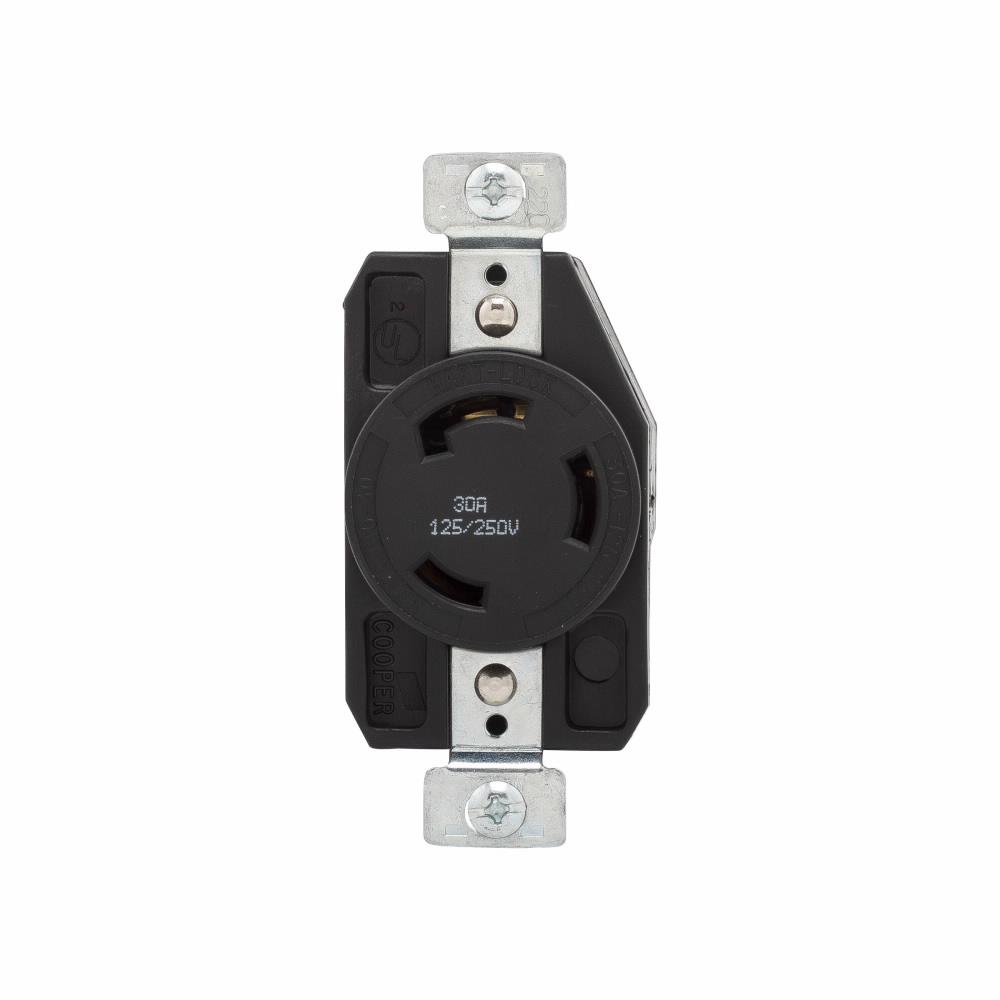

EATON Arrow Hart™ Hart-Lock® AHL1030R-OBS Single Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Black
Industrial specification grade locking devices - receptacles 30 A, 125/250 VAC NEMA L10-30 3-pole 3-wire. The widest range of NEMA and non-Nema devices, designed and built with superior materials for long-lasting performance.
-
BrandEATON
-
UPC040893677323
-
Manufacturer Part NumberAHL1030R-OBS
-
CountryUSA
-
Temperature Rating-40 to 105 deg C
-
Terminal TypeScrew
-
MaterialGlass Filled Nylon
-
ColorBlack
-
TypeSingle
-
GradeIndustrial
-
NEMA RatingNEMA L10-30
-
Voltage Rating125/250 V AC
-
Amperage Rating30 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions3.63 in H x 1.62 in W x 1.12 in D
-
Number of Wires3
-
Cord Diameter0.38 to 1 in
- Power-Lock devices are designed for safety
- Energizing within a chamber to eliminate the possibility of exterior arcing
- They are ideal for high abuse industrial and specialized hospital applications
- 14 to 8 AWG wire
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 25MD94 |
-
Alternative Part Number9593200|19798682
-
UNSPSC39121403
-
IDEA Index ID19798682
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
-
Specification Sheet
-
Instruction/Installation Manual
