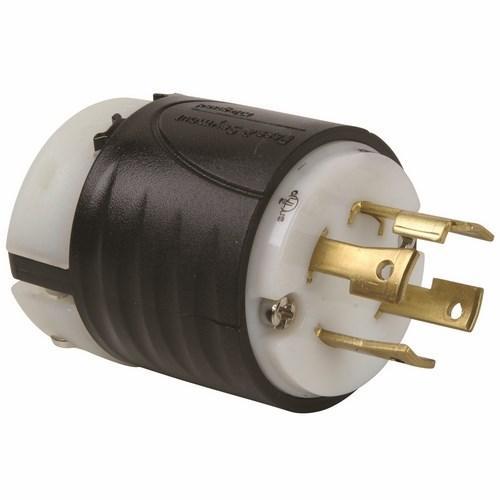

Pass & Seymour® Turnlok® L1630-P Locking Plug, 480 V AC, 30 A, 2 Poles, 3 Wires, Black/White
Pass & Seymour® Turnlok® L1630-P Locking Plug, 480 VAC, 30 A, 2 Poles, 3 Wires, Black/White
-
BrandPass & Seymour®
-
UPC785007163049
-
Manufacturer Part NumberL1630P
-
CountryUSA
-
Temperature Rating-40 to 75 deg C
-
MaterialNylon
-
ColorBlack/White
-
GradeIndustrial
-
NEMA RatingNEMA L16-30P
-
Voltage Rating480 V AC
-
Cord Diameter0.385 to 1.15 in
-
Amperage Rating30 A
-
Number of Poles2
-
Dimensions2.2 in Dia x 3.8 in L
-
Number of Wires3
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact- and corrosion-resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New-design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber
-
Alternative Part Number8671019
-
UNSPSC39121403
-
IDEA Index ID8671019
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|Federal Specification|UL 498
-
Catalog
-
Specification Sheet
-
Owners/User Manual
