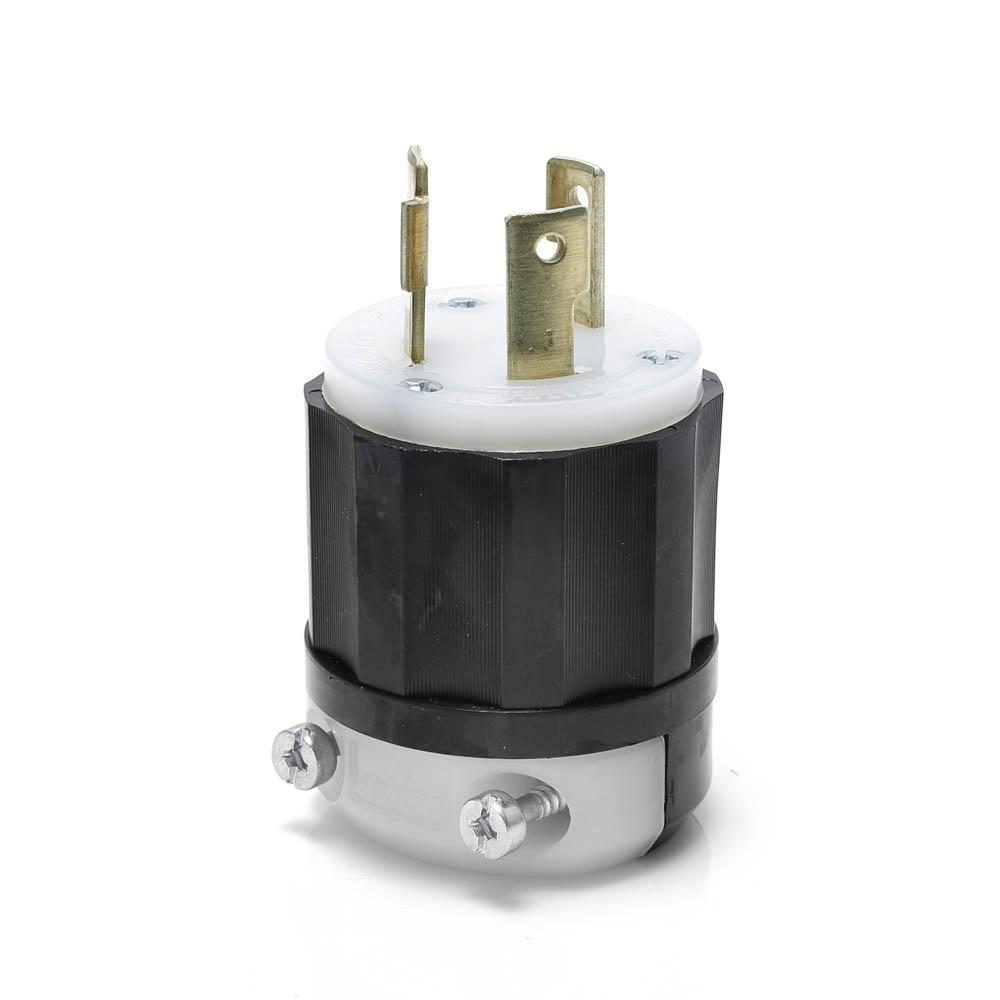

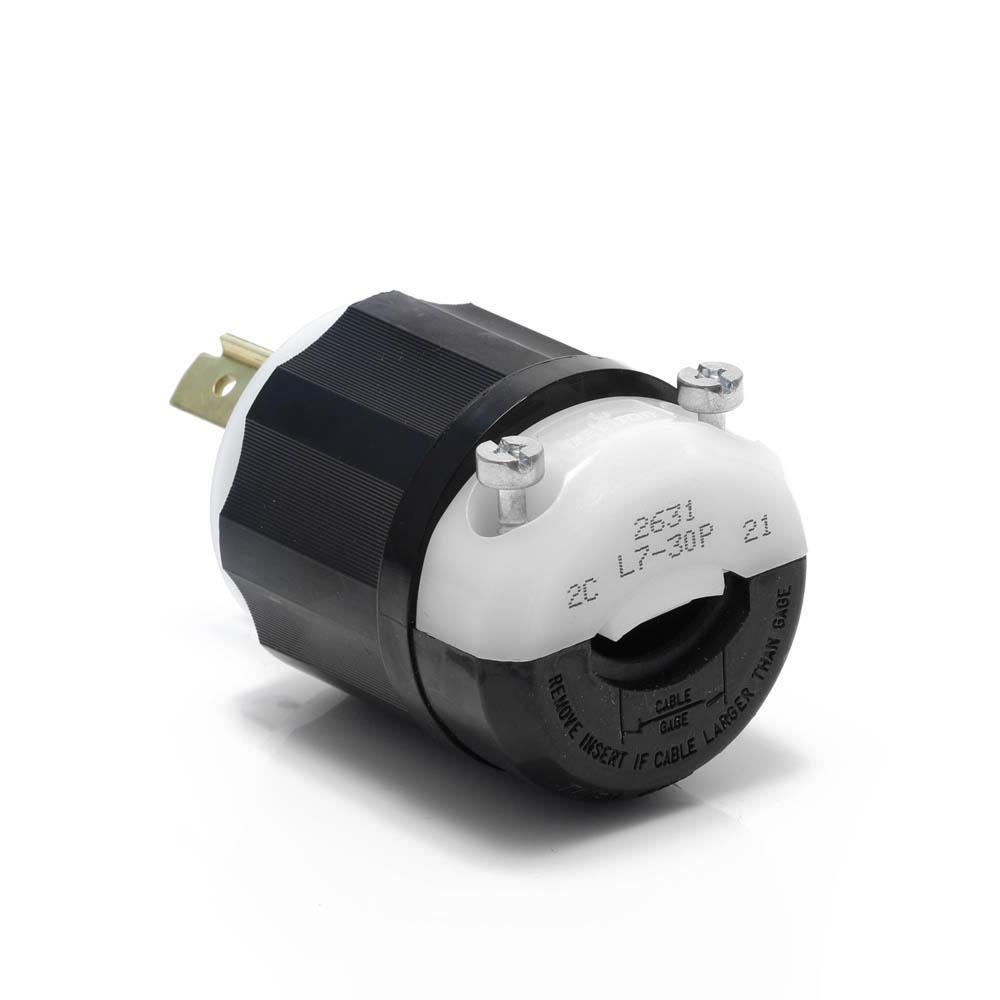

LEVITON LEV 2631 30-AMP 277-VOLT BLACK/WHITE 2-POLE 3-WIRE LOCKING ELECTRICAL MALE PLUG
LevitonĀ® industry leading locking devices, such as our Black & WhiteĀ® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
-
BrandLevitonĀ®
-
UPC078477807941
-
Manufacturer Part Number2631
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type1-Phase Grounding Cable Mount
-
GradeIndustrial
-

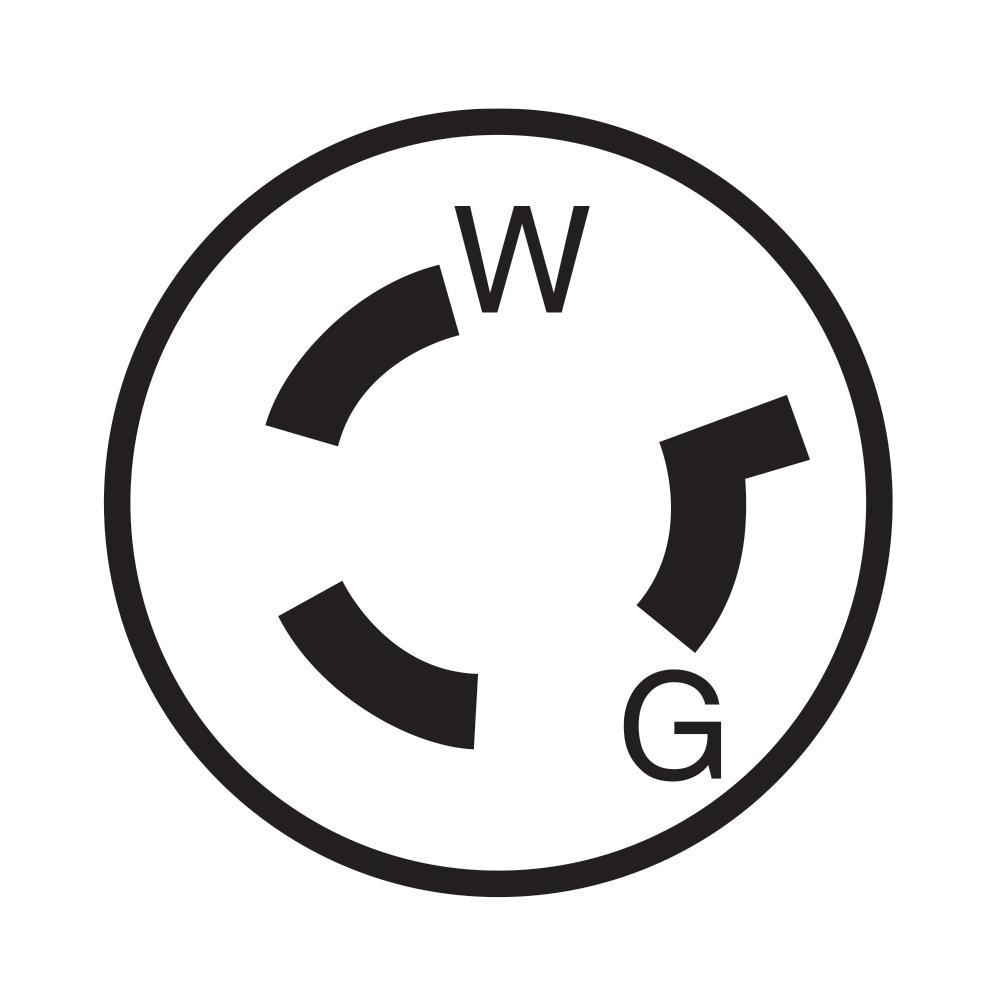

NEMA RatingNEMA L7-30P
-
Voltage Rating277 V AC
-
Cord Diameter0.385 to 0.93 in
-
Amperage Rating30 A
-
Horsepower3 hp
-
Number of Poles2
-
Dimensions2.08 Dia x 2.47 in L
-
Number of Wires3
-
Alternative Part Number7331554
-
UNSPSC39121402
-
IDEA Index ID7331554
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
