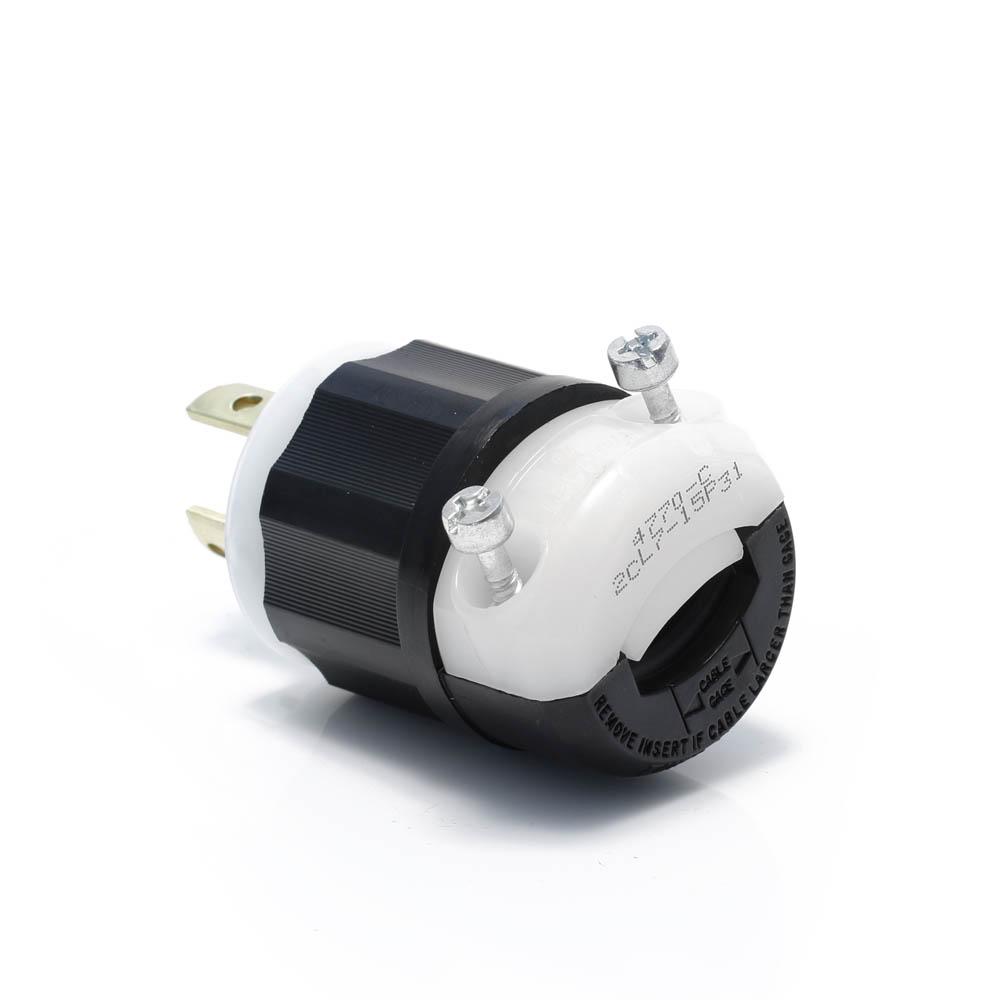

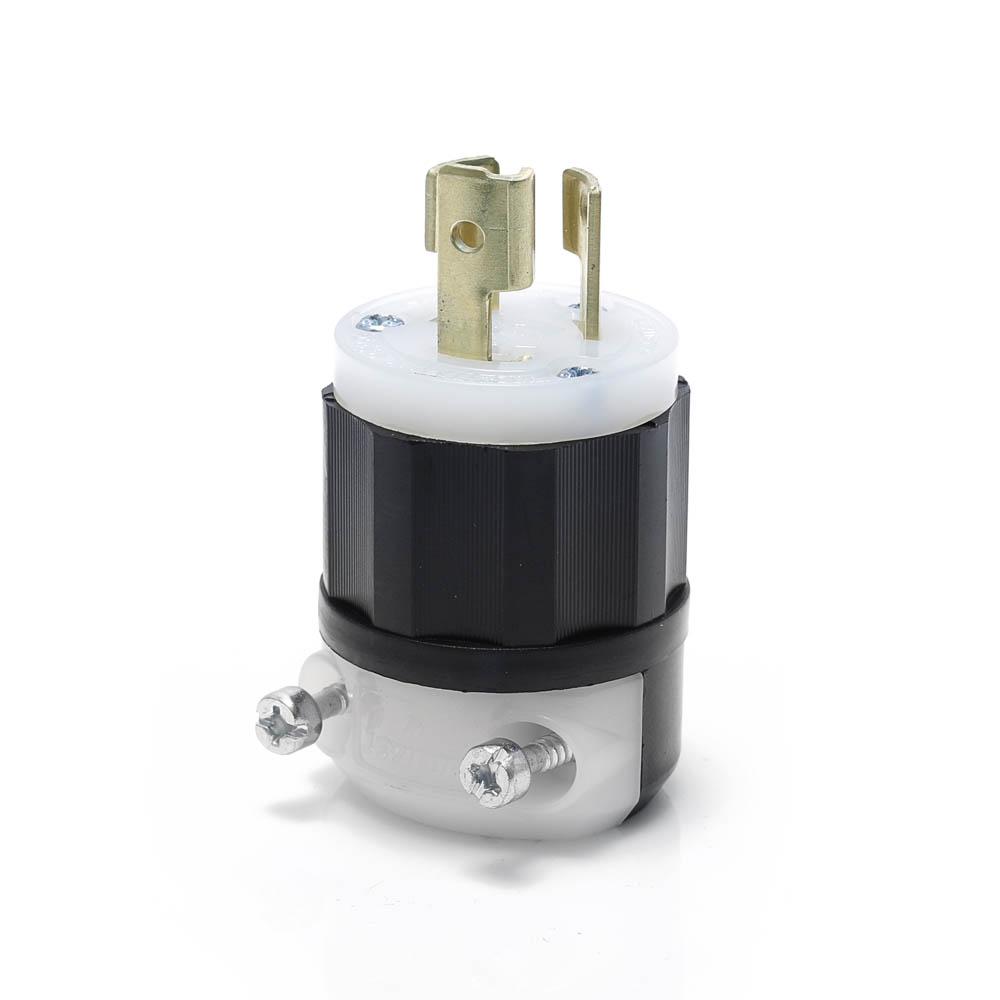

Leviton® 4770-C Cable Mount Grounding Locking Plug, 277 V AC, 15 A, 2 Poles, 3 Wires, Black/White
Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
-
BrandLeviton®
-
UPC078477795767
-
Manufacturer Part Number4770-C
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeCable Mount Grounding
-
GradeIndustrial
-

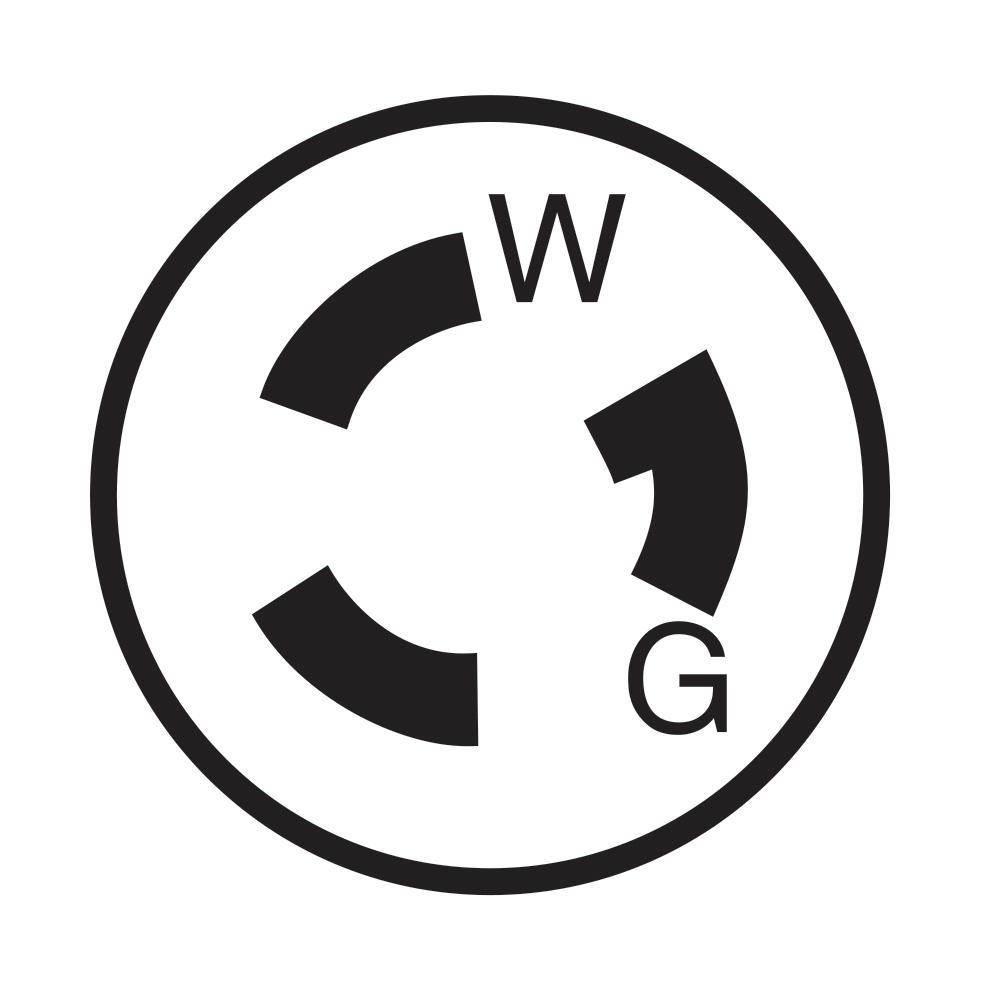

NEMA RatingNEMA L7-15P
-
Voltage Rating277 V AC
-
Cord Diameter0.24 to 0.7 in
-
Amperage Rating15 A
-
Horsepower2 hp
-
Number of Poles2
-
Dimensions1.53 in Dia x 1.98 in H
-
Number of Wires3
- Certified for current interrupting at full rated current
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1PKL7 |
-
Alternative Part Number7326588
-
UNSPSC39121402
-
IDEA Index ID7326588
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|Federal Specification WC596|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Specification Sheet
