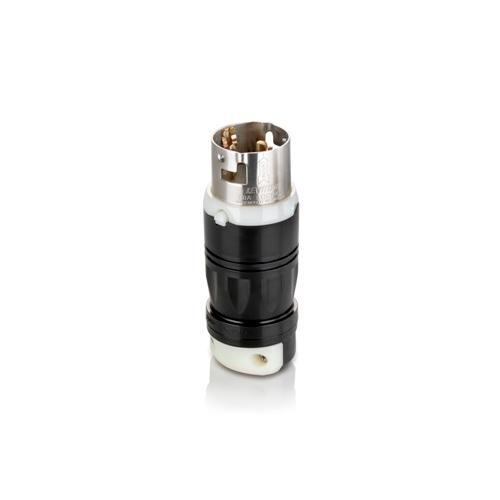

LEVITON 50-AMP 250-VOLT LOCKING ELEC/PLUGS LEV CS-82-65-C
Leviton® Black & White® 50 A non-NEMA line of industrial grade locking blade devices feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts and blades are solid 1-piece construction for superior conductivity. Corrosion resistant versions feature nickel plated contacts and blades, plus stainless steel shrouds and screws. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477326060
-
Manufacturer Part NumberCS8265C
-
CountryUSA
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeGrounding
-
GradeIndustrial
-
Voltage Rating250 V AC
-
Cord Diameter0.68 to 1.125 in
-
Amperage Rating50 A
-
Number of Poles2
-
Dimensions2.59 in Dia x 6.74 in L
-
Number of Wires3
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 5DLN3 |
-
Alternative Part Number9865228
-
UNSPSC39121413
-
IDEA Index ID9865228
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-0 Flammability Rating
-
WarrantyLifetime
-
Specification Sheet
-
Owners/User Manual
