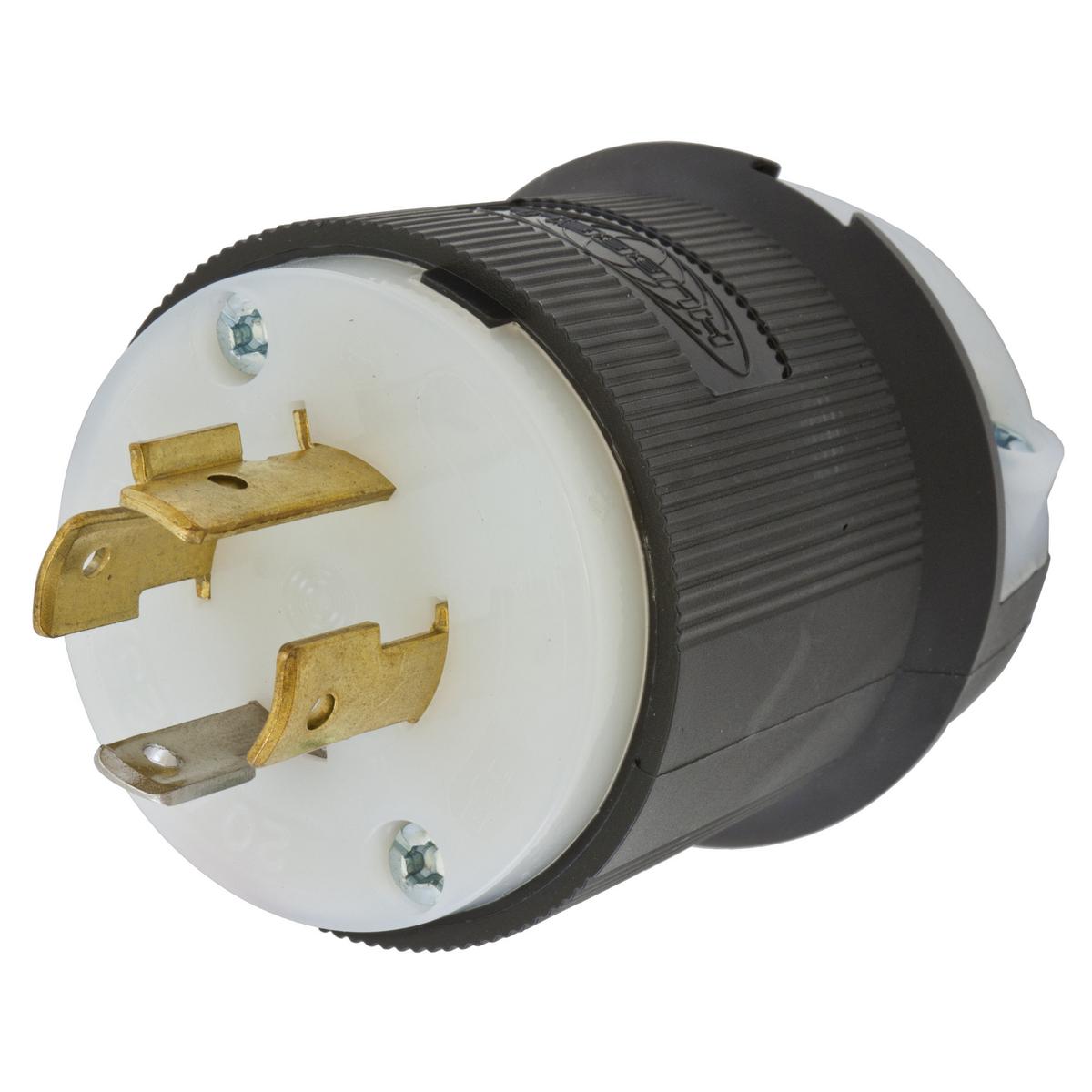

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2411 HBL® 1-Phase Grounding Cord Mount Locking Plug, 125/250 V AC, 20 A, 3 Poles, 4 Wires, Black/White
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 125/250V AC, 3- Pole 4-Wire Grounding, NEMA L14-20P, Screw Terminal, Black and White Nylon.
-
BrandHubbell Wiring Device-Kellems
-
UPC783585038131
-
Manufacturer Part NumberHBL2411
-
CountryUSA|Canada
-
Temperature Rating-40 to 75 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
Type1-Phase Grounding Cord Mount
-
GradeIndustrial
-
NEMA RatingL14-20P
-
Voltage Rating125/250 V AC
-
Cord Diameter0.35 to 1.15 in
-
Amperage Rating20 A
-
Horsepower2 hp
-
Number of Poles3
-
Dimensions2.33 x 2.33 x 2.75 in
-
Number of Wires4
-
EnclosureIP20
-
SeriesHBL®
- Integral dust shield protects wiring chamber from dust or contaminants
- Clear, funnel shaped wire entry for ease of termination
- Superior cord grip design protects terminations from excess strain
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4A265 |
-
Alternative Part Number8958158|11827166
-
UNSPSC39121402
-
IDEA Index ID8958158
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 No. 42|NEMA WD1/WD5|UL 498|Federal Specification W-C-596|RoHS Compliant
-
WarrantyLifetime
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
-
Line Drawing
