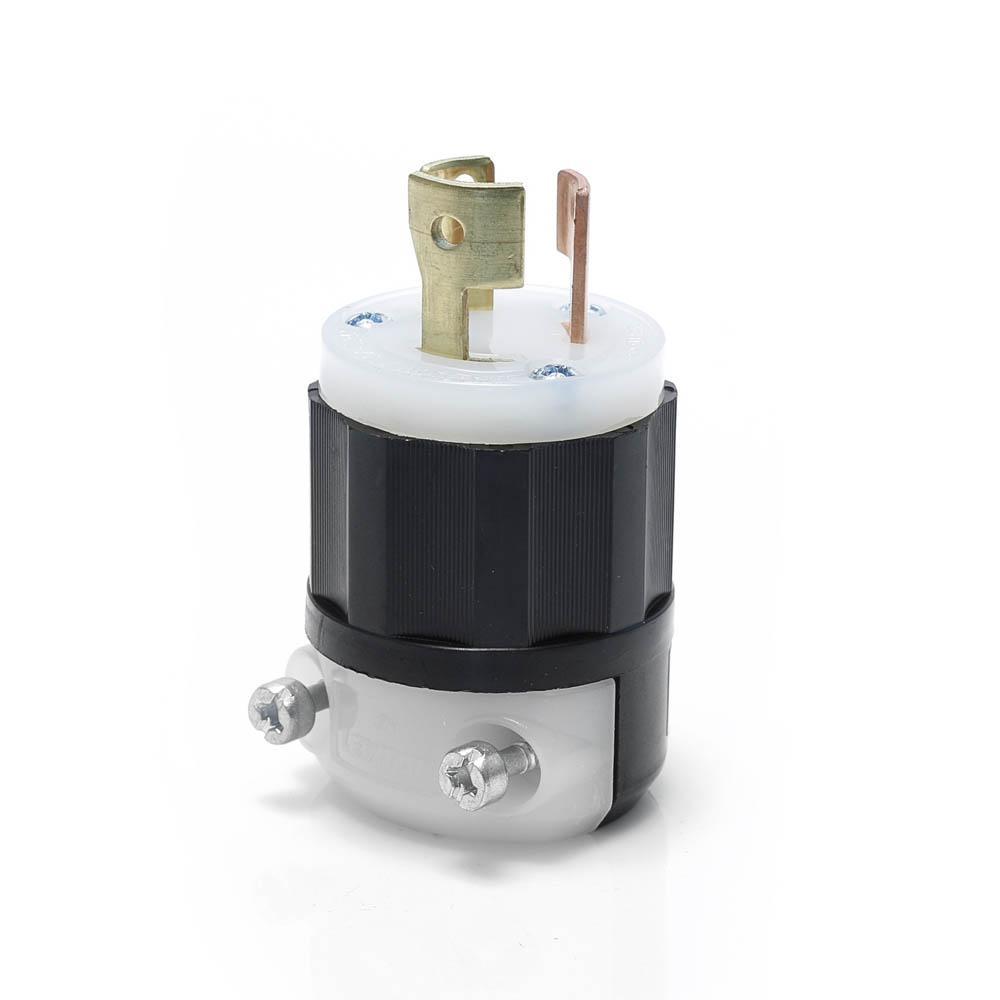

LEVITON MALE ELECTRICAL PLUGS LEV 7567-C
LevitonĀ® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. LevitonĀ® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.
-
BrandLevitonĀ®
-
UPC078477820148
-
Manufacturer Part Number7567-C
-
CountryUSA
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialNylon
-
ColorBlack/White
-
TypeCable Mount Non-Grounding
-
GradeIndustrial
-
Voltage Rating125/250 V AC
-
Cord Diameter0.24 to 0.7 in
-
Amperage Rating10/15 A
-
Number of Poles3
-
Dimensions2.22 in Dia x 2.7 in H
-
Number of Wires3
- Certified for current interrupting at full rated current
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25LL09 |
-
Alternative Part Number7336447
-
UNSPSC39121402
-
IDEA Index ID7336447
-
Package DescriptionEACH
-
Standards/ApprovalsANSI C73|CSA C22.2 No.42 File No. LR406|NOM 057|NEMA WD1/WD6|UL 498 File No. E13393|UL94 V-2 Flammability Rating
-
WarrantyLifetime
-
