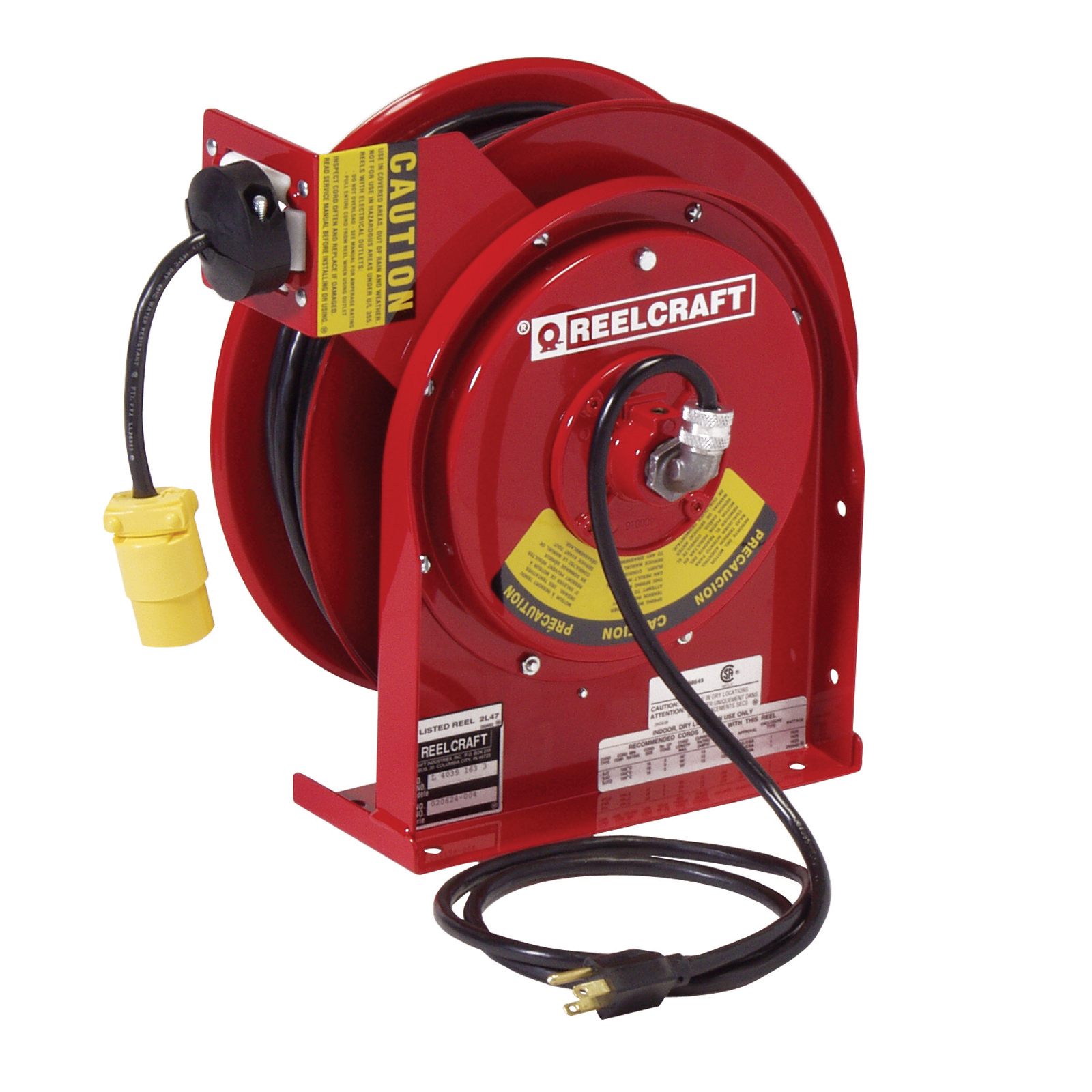

Reelcraft 50' 16/3 1-OUTLET EXT/CORD REELS REC L-4050-163-3
The heavy duty series 4000 cord reels are all steel construction and compact for a wide range of applications with critical space requirements. A robust collector ring assures maximum conductivity current flow. Guide arm adjusts to two positions.
-
BrandReelcraft®
-
UPC699567002840
-
Manufacturer Part NumberL 4050 163 3
-
CountryUSA
-
Temperature Rating0 to 125 deg F
-
Plug TypeReverse
-
Receptacle TypeNEMA 5-15R/Single
-
Reel Diameter12-5/8 in
-
Reel MaterialSteel
-
Reel Mounting TypeBench/Ceiling/Wall
-
ColorRed
-
TypeRetractable
-
GradeHeavy Duty
-
Conductor Size16 AWG
-
Voltage Rating125 V AC
-
Cord ColorBlack
-
Cord Length50 ft
-
Amperage Rating13 A
-
SeriesL 4000
-
Number of Outlets1
-

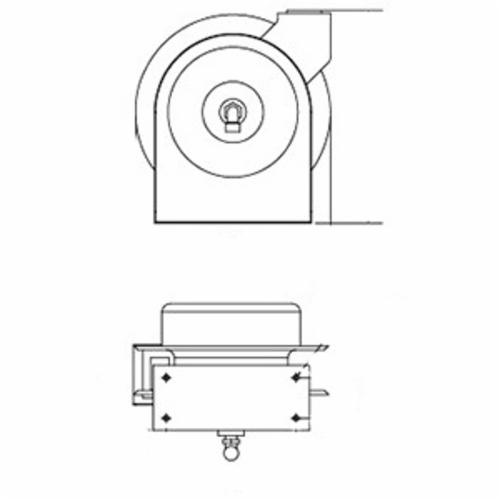

Dimensions13-1/4 in H x 12-5/8 in W x 9-3/8 in D
- The robotically steel base offers maximum strength and consistent quality
- Long life drive spring is declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosions-resistant - individually powder coated components offer the maximum protection from premature corrosion
-
UNSPSC26121635
-
Package Description1/PK
-
Standards/ApprovalsCSA Certified, UL Listed|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
-
