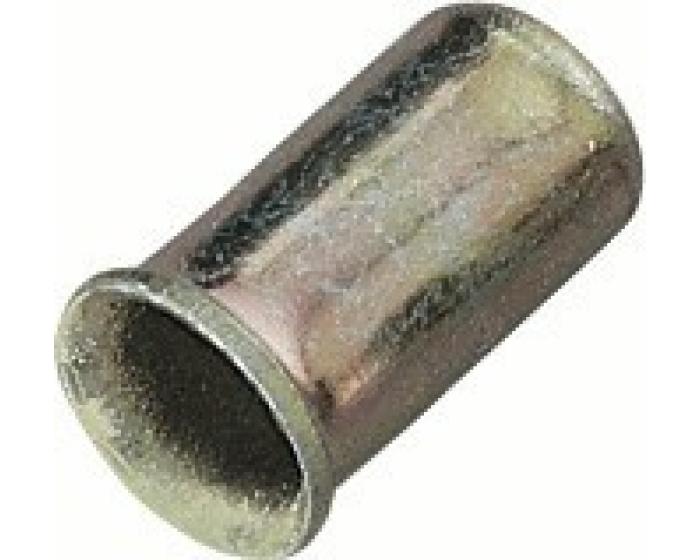

IDEAL 18 TO 8 AWG STEEL CRIMP CONNECTOR IDL 30-411
Crimp connectors from IDEAL are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
-
BrandIDEAL®
-
UPC783250304110
-
Manufacturer Part Number30-411
-
CountryUSA
-
Temperature Rating221 deg F
-
FinishZinc Plated
-
MaterialCopper/Steel
-
Voltage Rating600 V AC
-
Series411®
-
Wire Size18 to 8 AWG
-
Dimensions5/8 in L x 1/4 in W
-
Specifications(3) 12 AWG Minimum, (4) 10 AWG Max Conductor Range
- Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available
- The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock
-
Alternative Part Number8316252
-
UNSPSC39121448
-
IDEA Index ID8316252
-
Standards/ApprovalsRoHS Compliant|CSA C22.2 No. 188 Certified|UL 486C|W-S-610E Federal Specification
-
RoHS
-
