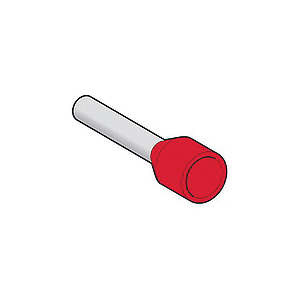

Square D™ Linergy DZ5CE010 Insulated Cable End Ferrule, 1.6 mm Dia x 8.2 mm L Pin, Red
Square D™ Linergy DZ5CE010 Insulated Cable End Ferrule, 1.6 mm Dia x 8.2 mm L Pin, Red
-
BrandSquare D™
-
UPC785901444664
-
Manufacturer Part NumberDZ5CE010
-
CountryUSA
-
Temperature Rating-4 to 221 deg F
-
ColorRed
-
TypeInsulated
-
SeriesDZ5
-
Overall Length0.55 in
-
Pin Diameter1.6 mm
-
Pin Length8.2 mm
- Single conductor cable end
- 1 number of cable
- 18 AWG wire
- 0.07 in Dia x 0.31 in L tube
- Halogen-free plastic bezel
-
UNSPSC39121410
-
Package Description1000/PK
-
Standards/ApprovalsUL Listed|RoHS Compliant
-
Warranty18 months
-
Catalog
-
Specification Sheet
