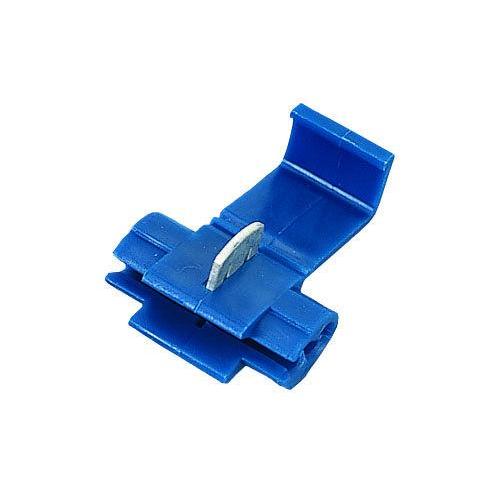

IDEAL 16-14 AWG SPLICE CONNECTOR PK/25 IDL 83-3271
Butted seam-construction prevents splitting under maximum pressureInternal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistanceTin-plated brass construction for corrosion resistanceShouldered barrel insulation quickly positions terminal for proper crimpingExpanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation supportThe complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.
-
BrandIDEAL®
-
UPC783250490813
-
Manufacturer Part Number83-3271
-
CountryUSA
-
Temperature Rating75 deg C
-
ColorBlue
-
Conductor Size16 to 14 AWG
-
Voltage Rating600 V AC
-
Dimensions1.063 in L x 0.787 in W
- Butted seam-construction prevents splitting under maximum pressure
- Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
- Tin-plated brass construction for corrosion resistance
- Shouldered barrel insulation quickly positions terminal for proper crimping
- Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 25C170 |
-
Alternative Part Number8340819
-
UNSPSC39121449
-
IDEA Index ID8340819
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL Listed
-
RoHS
