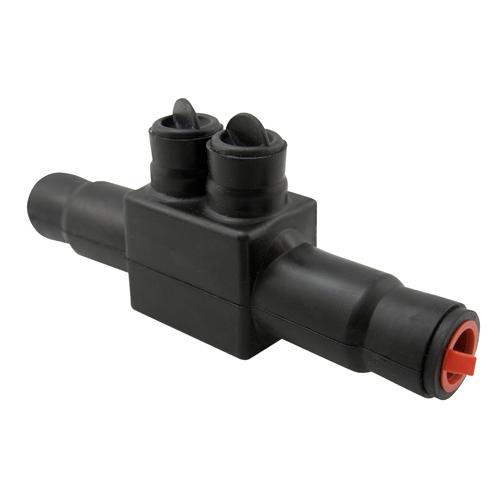

ILSCO® SafetySub® USPA-500SS-DB Type USPA-SS Dual Rated In-Line Waterproof Splice, 10 AWG to 500 kcmil Aluminum/Copper Conductor, Aluminum
ILSCO® SafetySub® USPA-500SS-DB Type USPA-SS Dual Rated In-Line Waterproof Splice, 10 AWG to 500 kcmil Aluminum/Copper Conductor, Aluminum
-
BrandILSCO®
-
UPC783669941128
-
Manufacturer Part NumberUSPA-500SS-DB
-
CountryUSA
-
Temperature Rating90 deg C
-
FinishElectro-Plated Tin
-
MaterialAluminum
-
TypeType USPA-SS Dual Rated
-
Conductor Size10 AWG to 500 kcmil
-
Conductor TypeAluminum/Copper
-
Voltage Rating600 V AC
-
Dimensions9-13/16 in L
-
Specifications450 in-lb Torque, 5/16 in Hex
- Encapsulated in EPDM rubber with a nominal thickness of 125 mil and a dielectric strength of 240 V/mil
- Pre-marked end insert allows broad wire range
- O-ring design screw cap inserts
- Connector is produced from high strength 6061-T6 aluminum alloy
- Range taking reduces inventory
- Dual rated for aluminum and copper conductor
- Connector has solid wire stop
- Simply cut end inserts to appropriate marked wire size and insert conductor into connector
- Ensures connector integrity while allowing ease of access to set screws, ensuring excellent sealing
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
-
Alternative Part Number7781778
-
UNSPSC39121408
-
IDEA Index ID7781778
-
Package DescriptionEACH
-
Standards/ApprovalsCSA LR-29601|UL 486D/88X4/E125087|ANSI 119.1/119.4|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
-
Specification Sheet
