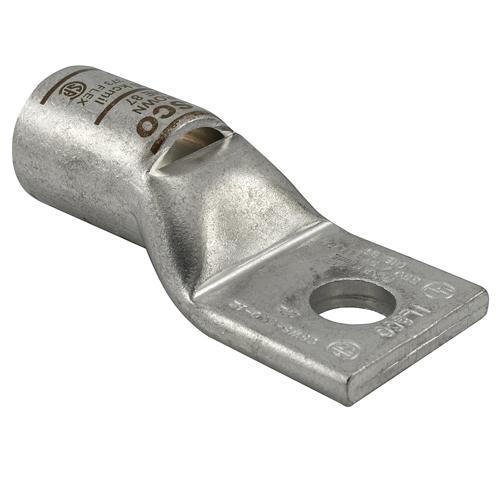

ILSCO® SureCrimp® CSWS-250-12 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 1/0 AWG to 250 kcmil Flex Copper Conductor, Die Code: ILD-62, 1/2 in Stud, Tin Plated Copper

Name: ILSCO® SureCrimp® CSWS-250-12 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 1/0 AWG to 250 kcmil Flex Copper Conductor, Die Code: ILD-62, 1/2 in Stud, Tin Plated Copper
Brand: ECM Industries
SKU: ILSCSWS25012
Price: 13.3 USD
Availability: InStock

0 Ratings

$13.30

SKU: ILSCSWS25012

GTIN (EAN,ISBN): 00783669640779

ILSCO® SureCrimp® CSWS-250-12 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 1/0 AWG to 250 kcmil Flex Copper Conductor, Die Code: ILD-62, 1/2 in Stud, Tin Plated Copper

In Stock

HCI of Jackson: 7

HCI of Dyersburg: 0

HCI of Humboldt: 0

HCI of Union City: 24

HCI of Gallatin: 0

Back to: Lug Compression Connectors

Main specs

Brand

ILSCO®
UPC

783669640779
Manufacturer Part Number

CSWS-250-12
Country

USA

Specification

Temperature Rating

90 deg C
Material

Tin Plated Copper
Color

Yellow
Type

1-Hole
Conductor Size

1/0 AWG to 250 kcmil
Conductor Type

Flex Copper
Mounting Hole Size

0.562 in
Voltage Rating

600 to 35 kV V AC
Series

CSWS
Dimensions

1.088 in W
Specifications

1-1/8 in L Wire Strip
Stud Size

1/2 in
Overall Length

2.844 in

Features

Manufactured from high strength seamless copper tubing, electro-tin plated
Color coded
Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
Offers maximum conductivity and excellent crimping characteristics
Provides low contact resistance
For easy conductor insertion
Identifies the proper compression die
Application versatility
Reduces inventory requirements
For grounding and bonding applications
Chamfered barrel for visual inspection of proper cable insertion
4/0 flexible alternate conductor size
Electro-tin plated
Standard barrel length with chamfered entry

Additional Information

Alternative Part Number

9843334
UNSPSC

39121448
IDEA Index ID

9843334
Package Description

EACH
Standards/Approvals

NEBS Level 3|UL 453G|UL 486A-486B File No. E6207|CSA File No. LR29601|ECCN EAR99

Attachments

Warranty Information

Click here
Specification Sheet

Click here

Reviews

There are yet no reviews for this product.
