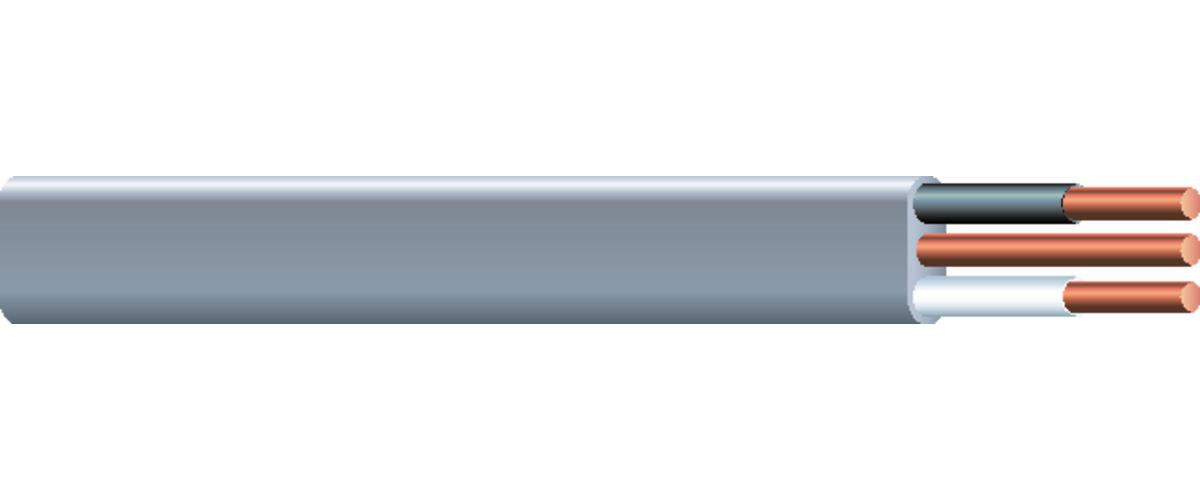

Southwire® 13055955 Type UF-B Underground Feeder and Branch Circuit Cable, Coil Packaging, 600 V AC, (2) 12 AWG Solid Copper Conductor, 250 ft L, Gray
Southwire® copper UF-B cable is generally used as feeder to outside post lamps, pumps, and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 National Electrical Code. UF-B cable may be used underground, including direct burial. Multiple conductor UF-B cable may be used for interior branch circuit wiring in residential or agricultural buildings at conductor temperatures not to exceed 90C (with ampacity limited to that for 60C conductors) as specified by the National Electrical Code. UF-B can be used in applications permitted for NMC in Section 334.10(B) of the National Electrical Code. Voltage rating for UF-B cable is 600 volts.
-
BrandSouthwire®
-
UPC032886166051
-
Manufacturer Part Number13055955
-
CountryUSA
-
Temperature Rating90 deg C
-
TypeType UF-B
-
Conductor Size12 AWG
-
Conductor TypeSolid Copper
-
Voltage Rating600 V AC
-
Amperage Rating20 A
-
Number of Conductors2
-
Insulation MaterialPVC
-
Jacket ColorGray
-
Jacket MaterialNylon
-
Strands1
-
Outside Diameter0.463 x 0.183 in
-
Length250 ft
- Brand received (Cerrowire or Southwire) varies by zip code
- Available with 2 or 3 conductors with or without a ground wire
- Conductors are made of annealed (soft) copper
| Cross-Reference Number |
|---|
| 507071 |
-
Alternative Part Number8876254
-
UNSPSC26121517
-
IDEA Index ID8876254
-
Package DescriptionEACH
-
Standards/ApprovalsASTM B3/B8|Federal Specification A-A-59544|NEC Certified|NFPA 70-2011 Edition|REACH Compliant|UL 83/493
-
Warranty1 Year
-
Specification Sheet
