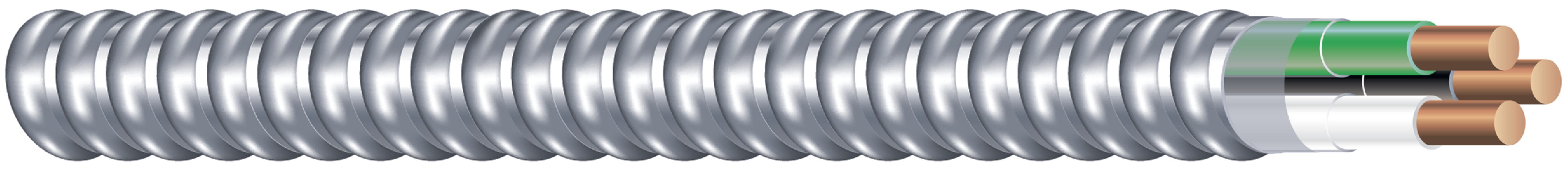

Southwire® 68580023 Type MC THHN Interlocked Armored Cable, Reel Packaging, 600 V AC, (2) 12 AWG Solid Copper Conductor, 100 ft L
Southwire Armorlite Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.
-
BrandSouthwire®
-
UPC032886345456
-
Manufacturer Part Number68580023
-
CountryUSA
-
Temperature Rating90 deg C
-
TypeType MC THHN
-
Conductor Size12 AWG
-
Conductor TypeSolid Copper
-
Voltage Rating600 V AC
-
Amperage Rating30 A
-
Number of Conductors2
-
Jacket MaterialPVC
-
Outside Diameter0.474 in
-
Length100 ft
- Concealed or exposed installations
- Installation in cable tray and approved raceways
- When pulling from coils, pull from inside to ensure ease of installation
- Concealed or exposed installations
- Installation in cable tray and approved raceways
| Cross-Reference Number |
|---|
| 521643 |
-
Alternative Part Number8879572
-
UNSPSC26121517
-
IDEA Index ID8879572
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|REACH Compliant|UL File No.83/156/1685|Federal Specification A-A59544|NFPA 70 Article 330|FT4/IEEE 1202|ARRA Compliant|Buy American Act Compliant
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
