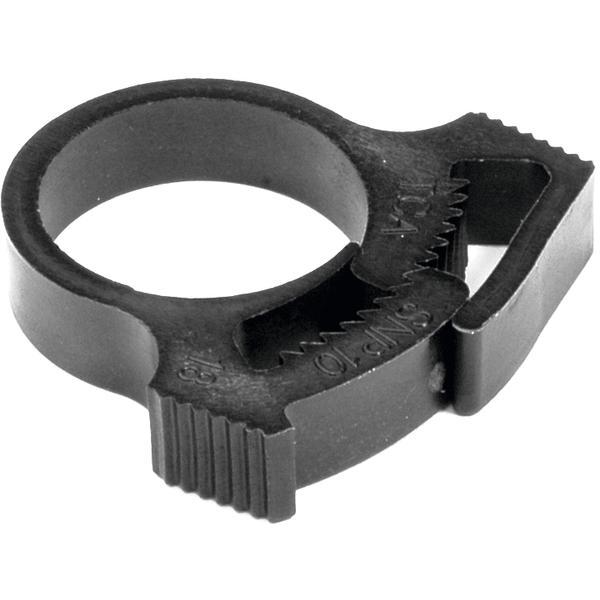

HellermannTyton SNP22GHS0C2 Type SNP22 Closed Snapper Hose Clamp, 0.933 to 1.079 in Cable, Plug-In Mount, Polyamide 6.6
The Snapper Hose Clamp features a ratchet-style closure for reduced assembly time. It can be added after connection of the hose. Release by sliding the ratchet ends apart. Snappers can be used in under-hood applications and are stable in a wide variety of chemicals including salts, bases, alcohols, ethers, detergents, gasoline, lubricating oils and greases. They are manufactured in black PA66 glass filled, impact modified, heat stabilized material. Custom design and color options are available based upon application and volume requirements.
-
BrandHellermannTyton
-
UPC089306053453
-
Manufacturer Part NumberSNP22GHS0C2
-
CountryUSA|Canada
-
Cable Size0.933 to 1.079 in
-
Temperature Rating-40 to 221 deg F
-
MaterialPolyamide 6.6
-
TypeType SNP22 Closed
-
Mounting TypePlug-In
-
Dimensions6 mm H x 23.9 mm W
-
Specifications1 in Dia Nominal, 0.071 in THK Wall, Black
- Installation and removal can be five times faster
- than conventional clamps
- Completely reusable
- Will not rust or corrode
- Safety engineered
-
Alternative Part Number192-10220|8811644
-
UNSPSC39121702
-
IDEA Index ID8811644
-
Package DescriptionBAG
-
Standards/ApprovalsARRA Compliant|RoHS Compliant|REACH Compliant (Article 33)|UL 94 HB Flammability Rating
-
Specification Sheet
-
Full Engineering Drawing
