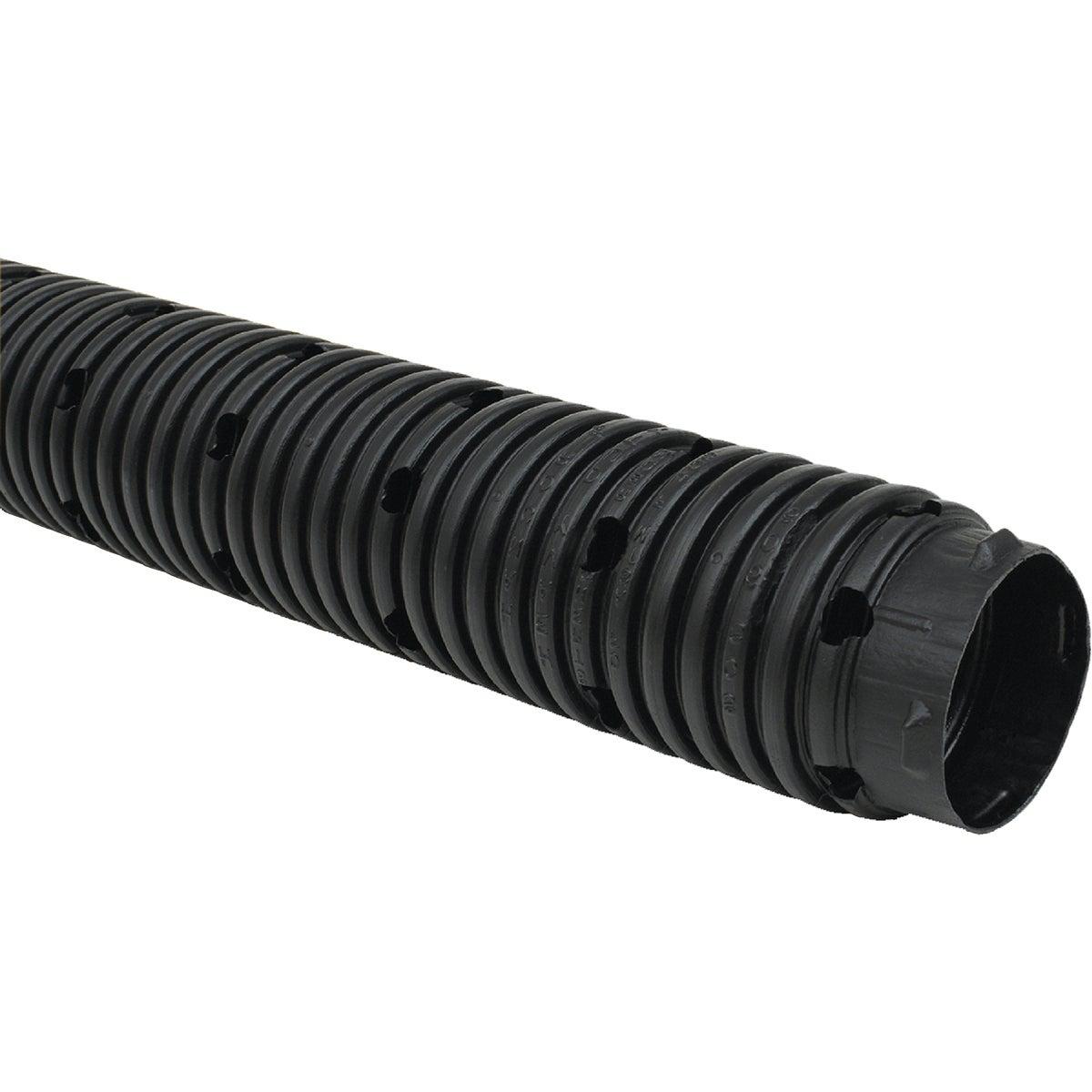

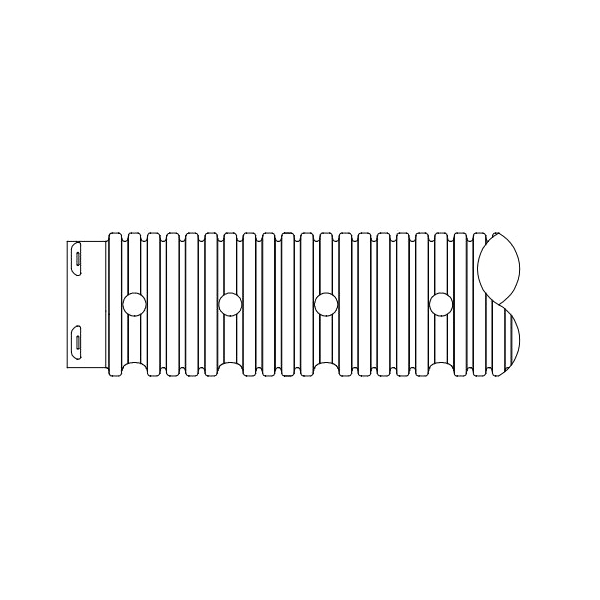

ADS® Channel-Flow® 04020010 120 deg 3-Hole Pattern Perforated Bell End Drainage Pipe, 4 in Dia x 10 ft L, Single Wall, HDPE, Domestic
Our single wall HDPE Pipe is specially designed and perforated to be the perfect component for Pipe and gravel leaching field systems. The single wall corrugated Pipe and gravel system is one of many leaching system options designed and sold by Advanced Drainage Systems. While newer, more advanced alternatives to this traditional gravel absorption system are offered, many prefer its tried and true reliability and reputation. In this conventional gravel absorption system, an area of gravel and natural voids surrounds the ADS® corrugated Pipe, providing storage for effluent. The gravel does not digest or eliminate the waste, instead, it causes "masking" which blocks some effluent from leaching directly into the soil.
-
BrandADS®
-
UPC096942032902
-
Manufacturer Part Number04020010
-
CountryUSA
-
MaterialHDPE
-
Type120 deg 3-Hole Pattern Perforated Bell End
-
Wall TypeSingle
-
Diameter4 in
-
Domestic/ImportDomestic
-
Length10 ft
- Reliable
- Reputable
- Long term performance
- Fit for gravel systems
-
UNSPSC40171500
-
Standards/ApprovalsASTM F667|SCS 606
-
WarrantyLimited
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
