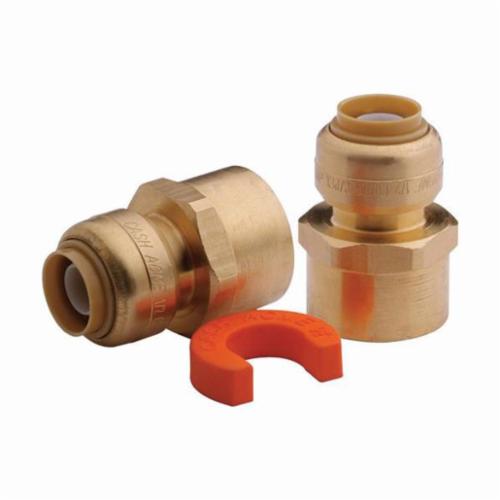

Sharkbite® 22441LF Water Heater Installation Kit, Import
SharkBite Push-to-Connect x Female Pipe Thread Water Heater Connection Kit is the easiest way to join copper, CPVC or PEX pipe in any combination with no soldering, clamps, unions or glue. Just insert the pipe and the stainless steel teeth bite down and grip tight, while a specially formulated O-ring compresses to create a perfect seal. Disassembly is just as fast using the simple disconnect tool. So fittings and valves can be easily changed and reused. They can even be rotated after assembly for easier installation in tight spaces. Get SharkBite and get a grip on your next plumbing project.
-
BrandSharkbite®
-
UPC697285224414
-
Manufacturer Part Number22441LF
-
CountryUSA
-
Domestic/ImportImport
-
Specifications200 psi Pressure, 200 deg F Temperature, Potable Water Service, FNPT End Connection
- Instant push-to-connect connection for increased ease-of-use: No soldering, clamps, unions or glue required
- Proven durability and quality
- Fits copper tubing and CTS CPVC, PEX PE-RT: connects all four types in any combination
- Integral pipe liner for PEX installations: Integrated design means no loose components, ensures secure, reliable connection
- Design certified and agency listed: Inspector friendly, peace of mind
- Compact, robust DZR brass body: robust DZR brass body, foundation of a strong, corrosion resistant, durable fitting
- Design certified to ANSI/NSF 61 and ASSE 1061 product standard for use in potable water and hydronic heating water distribution: quality engineered and manufactured
- Designed for hydronic heating as well as potable water distribution
- Approved to be used underground and behind walls without access panels
- Stainless steel grab teeth
- EPDM O-ring
- Veradel tube support liner
-
UNSPSC40101800
-
Package Description2/BG
-
WarrantyLimited
-
