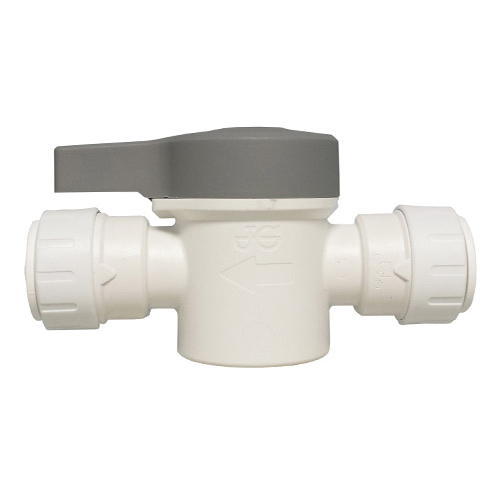

John Guest® Speedfit® PSEISV28P Shut-off Valve, 3/4 in, CTS x NPT, Polypropylene Body
The JG CTS Shut-off valve ensures an immediate water supply cut-off with a simple turn of the valve handle. The valve is designed to work with both copper and Speedfit plastic pipe. To lock the pipe in place, simply push the pipe into the fitting and turn the nut clockwise. Should the need arise to release the pipe, turn the locking nut anti-clockwise, push the collet towards the fitting and pull the pipe to release.
-
BrandJohn Guest®
-
UPC665628039186
-
Manufacturer Part NumberPSEISV28P
-
CountryUSA
-
Temperature Rating200 deg F
-
Pressure Rating160 psi
-
Nominal Size3/4 in
-
Body MaterialPolypropylene
-
End StyleCTS x NPT
- Push-fit connections
- Suitable for use with Pex, CPVC and copper pipe
- Lead Free and non toxic
- Truly demountable without damage to pipe or fitting
- No risk of fire or flames
- Corrosion free and no scale build-up
- 1/4 in turn valves these valves have been designed to allow temporary servicing of downstream equipment and must only be used in the fully open or fully closed position
- Working pressures and temperatures: 160 psi at 73 deg F, 100 psi at 180 deg F, 80 psi at 200 deg F
-
UNSPSC40141600
-
Package Description75/BX
-
Standards/ApprovalscUPC Listed|ICC ESR 1931|NSF 61
-
