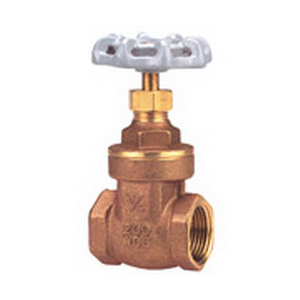

NIBCO® N001166 TI-8 Gate Valve, 1/2 in Nominal, FNPT End Style, Brass Body, Handwheel Actuator, Import
The solid wedge, integral seats and bi-directional service make the gate valve a good choice for irrigation services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® gate valves for the most specified, versatile and economical valve option in light commercial and residential applications. The gate valve is backed by the NIBCO 2-year limited warranty.
-
BrandNIBCO®
-
UPC039923608734
-
Manufacturer Part NumberN001166
-
CountryUSA
-
Port TypeFull
-
Pressure Rating200 psi
-
Top to Inlet Center2.83 in
-
Trim MaterialBrass
-
Hand Wheel Diameter2.13 in
-
Actuator TypeHandwheel
-
Nominal Size1/2 in
-
SeriesTI-8
-
Inlet to Outlet Length1.69 in
-
Softgoods MaterialGraphite/Rubber
-
Domestic/ImportImport
-
Body MaterialBrass
-
End StyleFNPT
- Valve pressure rating 200 psi/14 bar non-shock cold working pressure
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- The NIBCO brass gate valve features a screw-in bonnet for a durable, pressure-tight seal
- The non-rising stem gate valve with the cast iron handwheel offers positive shutoff
- Threaded ends allow for ease of installation
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | NTI8D |
-
Alternative Part NumberTI8 1/2
-
UNSPSC40141613
-
Package DescriptionEACH
-
Standards/ApprovalsASTM B 584 Alloy C85700 Body|ASTM B 16 Alloy C36000 Stem
-
WarrantyLimited
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Owners/User Manual
