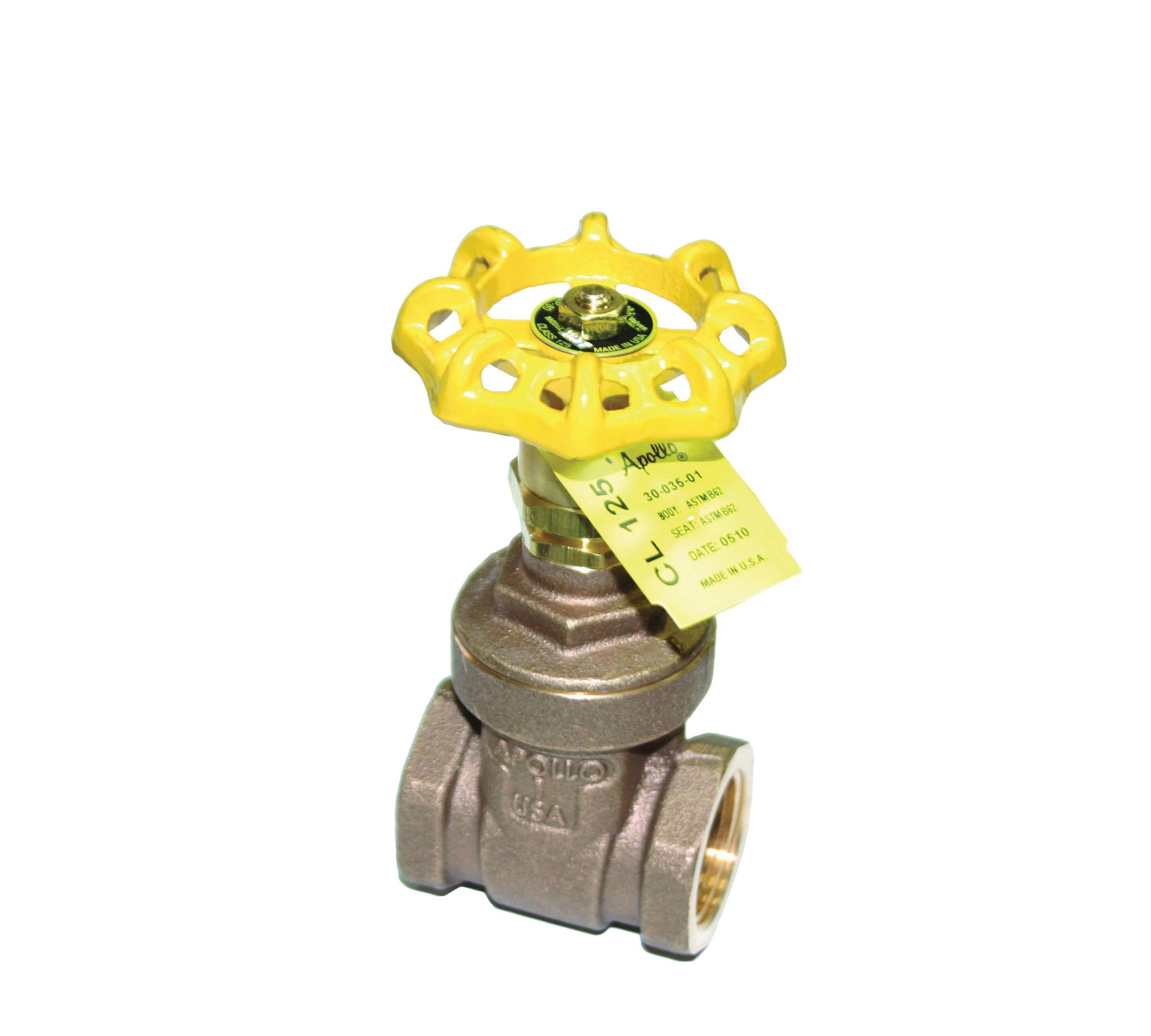

NIBCO T-113-1/2 102T Non-Rising Stem Gate Valve, 1/2 in Nominal, NPT End Style, 125 lb, Bronze Body, Handwheel Actuator, Domestic
The Apollo™ Model 102T (30 Series) Gate Valve provides a cost effective Made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled, and tested in South Carolina. The Apollo™ gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
-
BrandApollo™
-
UPC670750613371
-
Manufacturer Part Number3003301
-
CountryUSA
-
Temperature Rating-20 to 406 deg F
-
Port TypeFull
-
Pressure Class125 lb
-
Pressure Rating200 psi CWP
-
Flow Rate12.5 gpm
-
Top to Inlet Center3.56 in Open
-
Trim MaterialBrass/Bronze
-
TypeNon-Rising Stem
-
Actuator TypeHandwheel
-
Nominal Size1/2 in
-
Series102T
-
Dimensions2.03 in L
-
Softgoods MaterialGrafoil
-
Domestic/ImportDomestic
-
Body MaterialBronze
-
End StyleNPT
- Guided solid bronze disc
- Adjustable graphite stem packing
- Dezincification resistant
- All bronze construction
- Screw-in bonnet
- Malleable iron rugged hand wheel
- Back seat protection
- Brass stem/bronze disc wedge
- Grafoil packing
-
Alternative Part Number102T12
-
UNSPSC40141613
-
Package Description8/BX
-
Standards/ApprovalsARRA Compliant|ASME B1.20.1|ASTM B62 Body|ASTM B21 UNS C46400 Stem|ASTM B62 Disc Wedge|CRN 0C14667.5|MSS SP-80|PROP65: Cancer and Reproductive Harm
-
Warranty5 Years
-
