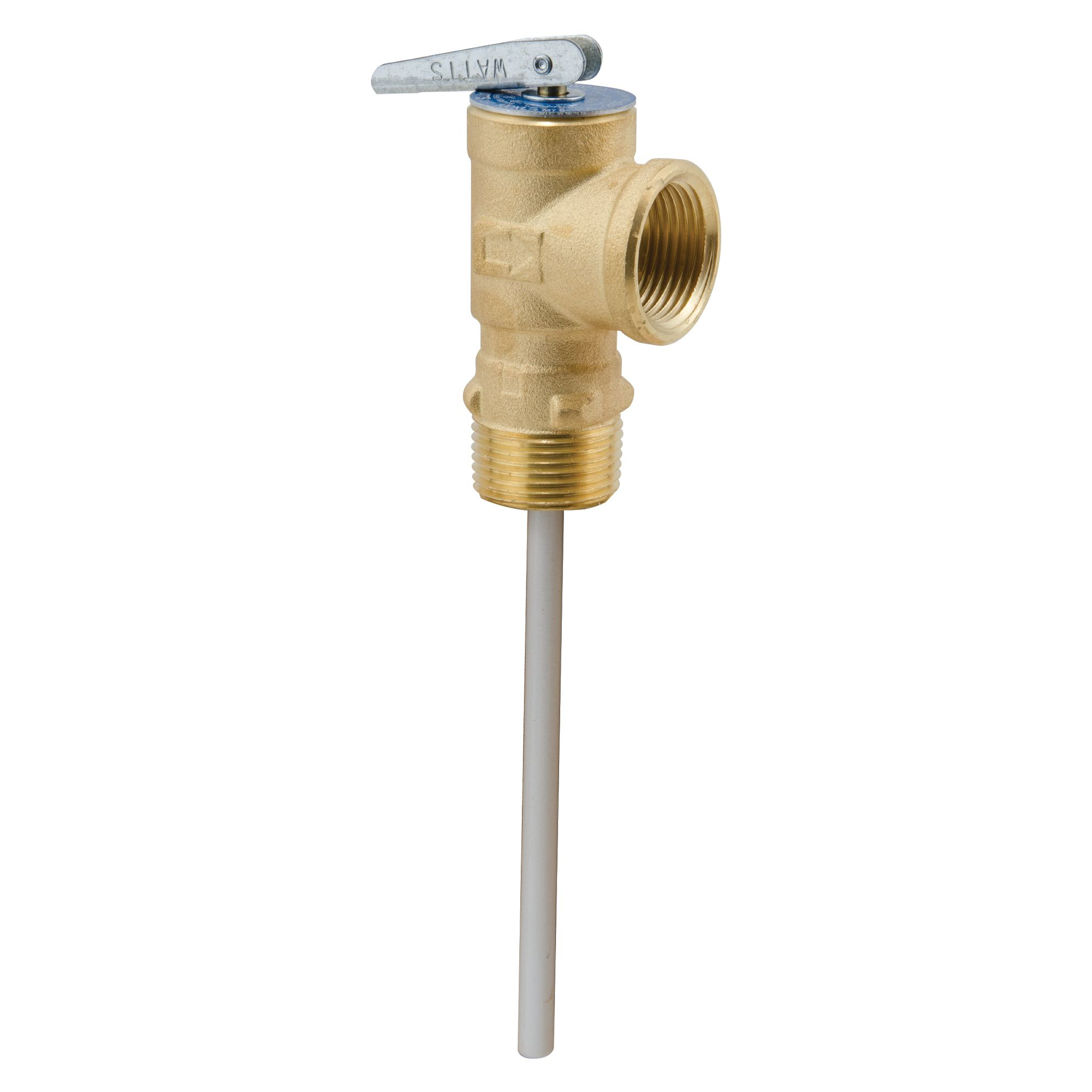

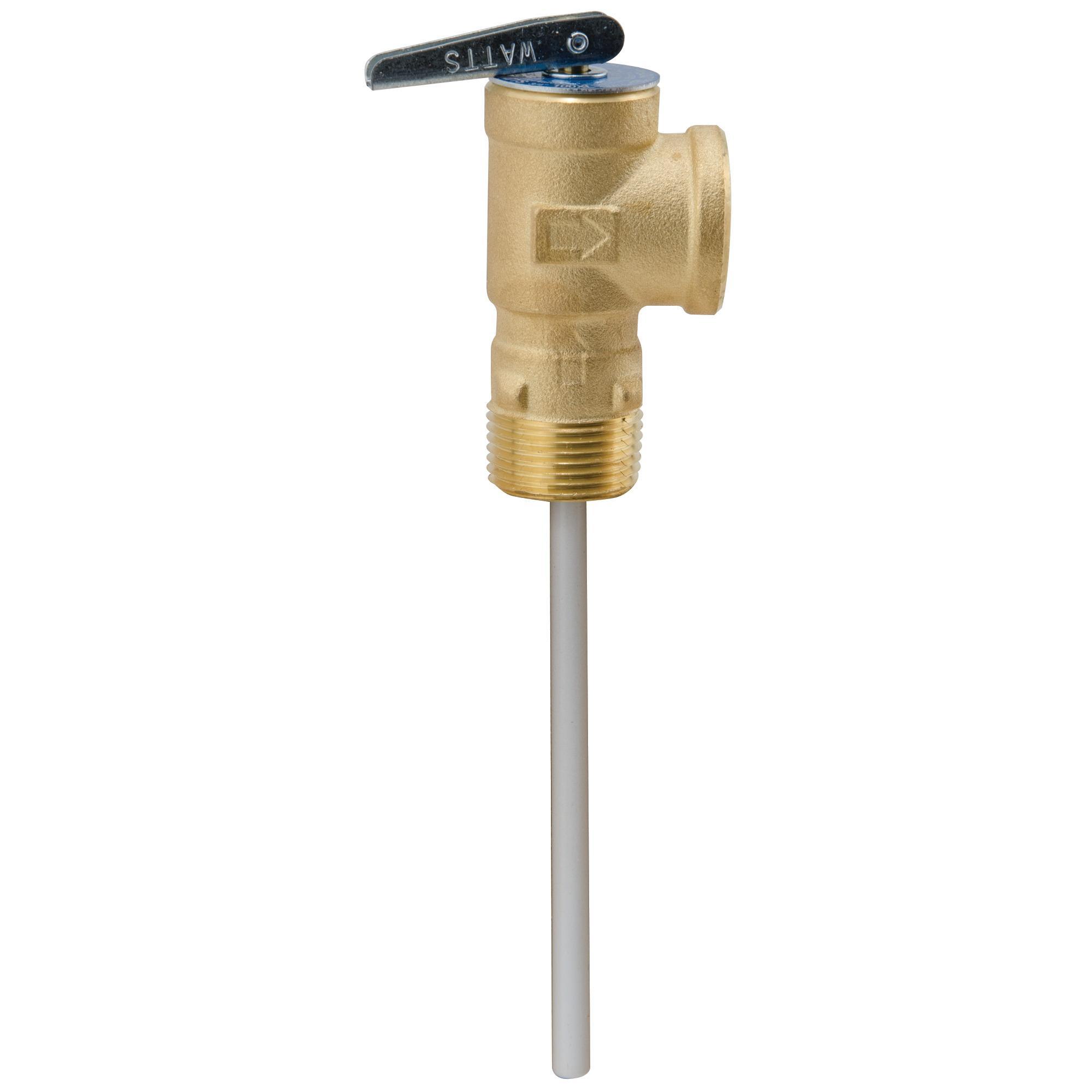

WATTS® 0066100 100XL Self-Closing Temperature/Pressure Relief Valve, 3/4 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, Brass Body
This 3/4 inch temperature and pressure relief valve is used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. This valve is ASME rated and CSA listed. Temperature relief is 210 degree F (99 degree C). Pressure relief is set at 150 psi.
-
BrandWATTS®
-
UPC098268000016
-
Manufacturer Part Number0066100
-
CountryUSA
-
Temperature Rating210 deg F
-
Pressure Rating150 psi
-
MediaWater
-
Trim MaterialStainless Steel Spring
-
TypeSelf-Closing
-
Actuator TypeTest Lever
-
Nominal Size3/4 in
-
Series100XL
-
Body MaterialBrass
-
End StyleMNPT x FNPT
- Required safety device on all water heaters
- Prevents water heater from blowing up
- Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
- Features unique thermostat with special thermo-bonded coating
- Thermostat is accurate and proven exclusively designed and manufactured by WATTS
- Required safety device on all water heaters
- Prevents water heater from blowing up
- Features a unique thermostat with special thermo-bonded coating
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | W100XL150210F |
| Fastenal | 0476152 |
-
Alternative Part Number100XL-150 3/4|98268000016|20098268000010
-
UNSPSC40141606
-
Package DescriptionEACH
-
Standards/ApprovalsASME Specified|CSA Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
