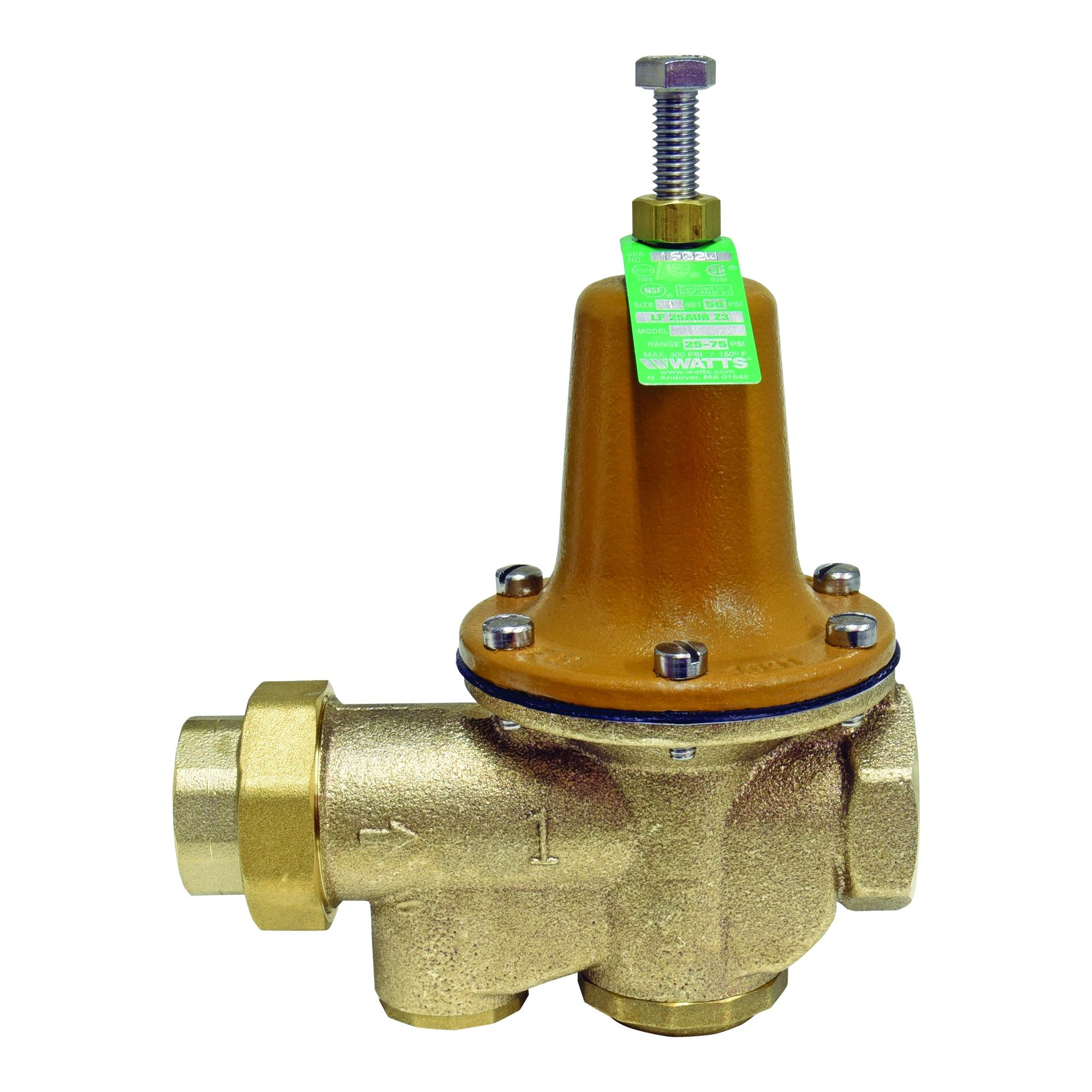

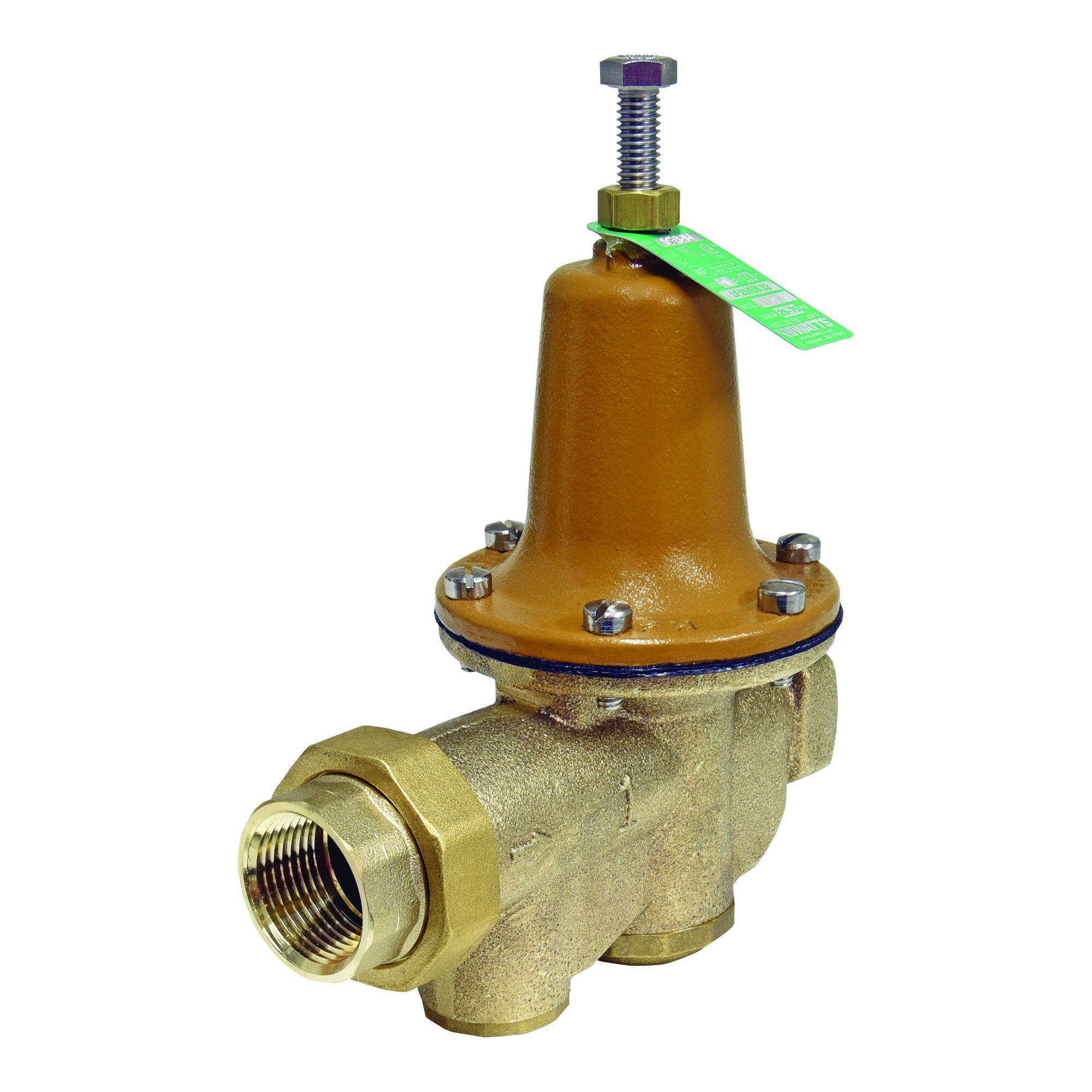

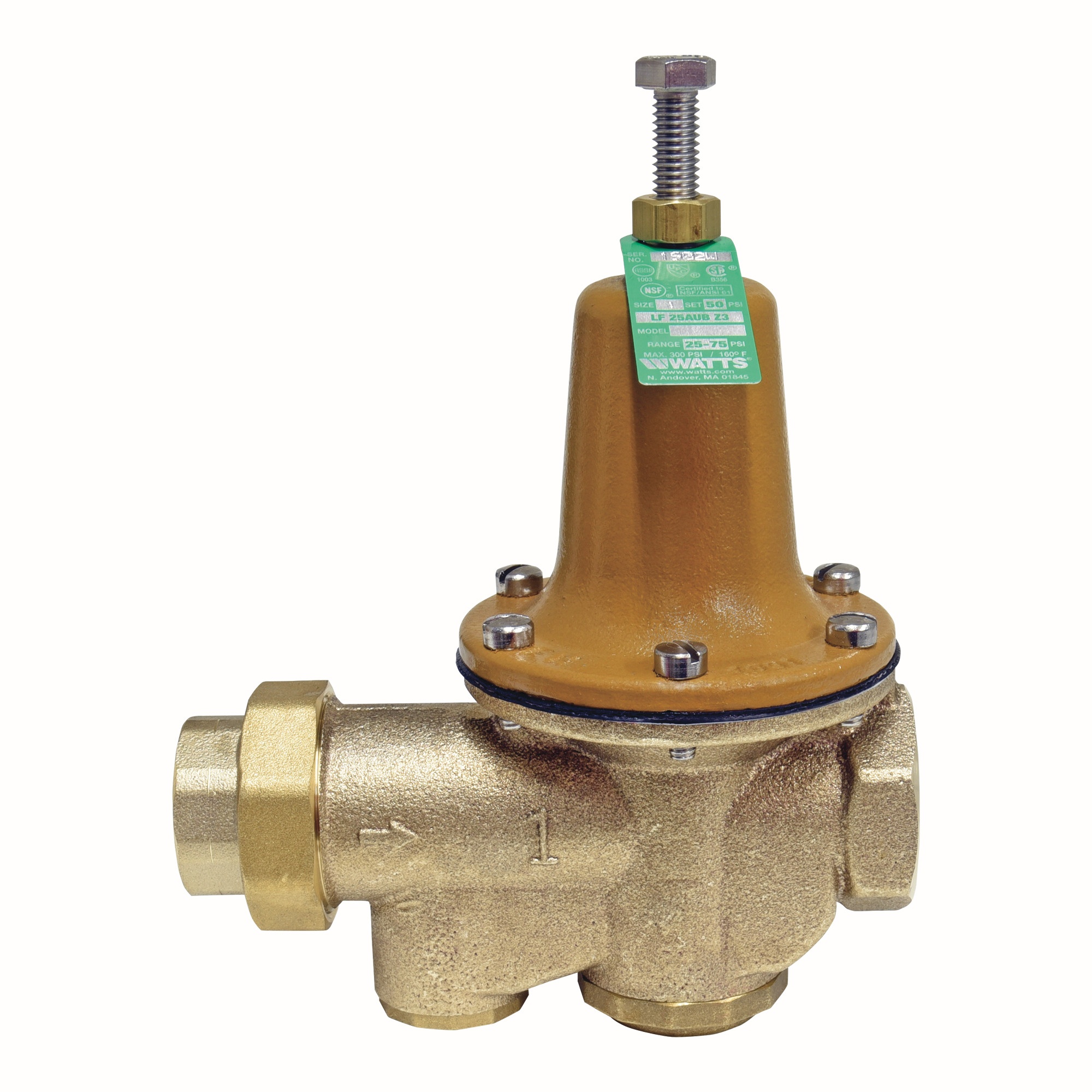

WATTS® 0009309 LF25AUB-Z3 Pressure Reducing Valve, 1 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, Cast Copper Silicon Alloy Body
This 1 inch lead free copper silicon alloy water pressure reducing valve is the standard model, designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
-
BrandWATTS®
-
UPC098268330427
-
Manufacturer Part Number0009309
-
CountryUSA|Canada
-
Temperature Rating33 to 160 deg F
-
Pressure Range25 to 75 psi
-
Top to Inlet Center9 in
-
MediaWater
-
Nominal Size1 in
-
SeriesLF25AUB-Z3
-
Inlet to Outlet Length8-3/4 in
-
Softgoods MaterialReinforced EPDM Diaphragm/Polymer Seat
-
Body MaterialCast Copper Silicon Alloy
-
End StyleFNPT Union x FNPT
- Sealed spring cage with stainless steel cage screws
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Suitable for up to 300 psi
- Temperature range is 33 to 180 deg F
- Designed to reduce incoming water pressure to protect plumbing systems
- Designed to reduce incoming water pressure to protect plumbing systems
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | WLF25AUBZ3G |
| Fastenal | 921542501 |
-
Alternative Part NumberLF25AUB-Z3 1
-
UNSPSC40141652
-
Package DescriptionEACH
-
Standards/ApprovalsANSI A112.26.2|ASSE Standard 1003|CSA Standard B356|IAPMO Listed|MIL-V-18146B Type I|NSF Approved|Southern Standard Plumbing Code|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 year Limited
-
Specification Sheet
-
Instruction/Installation Manual
