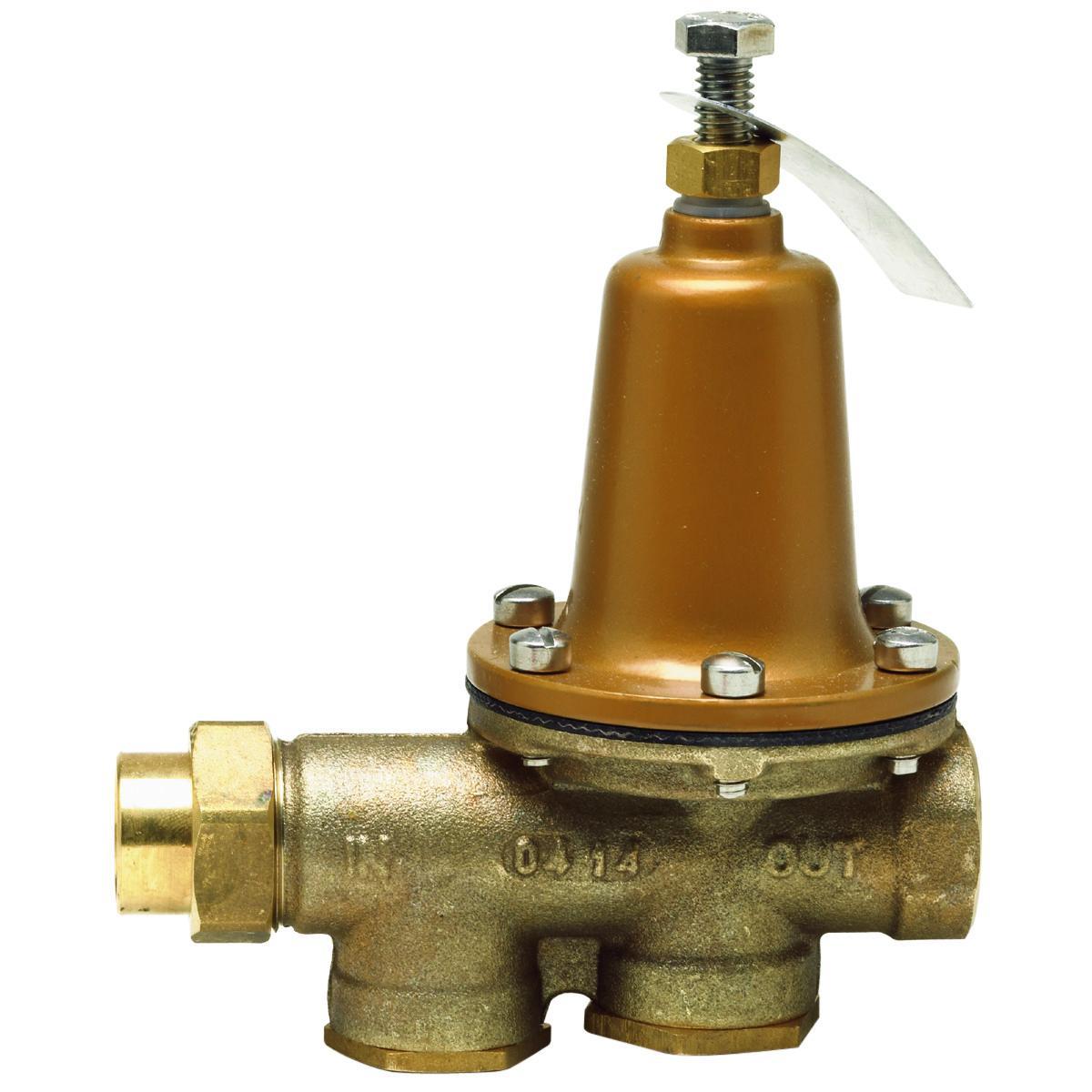

WATTS® 0009236 LF25AUB-Z3 Pressure Reducing Valve, 1/2 in Nominal, FNPT Union x FNPT End Style, 10 to 35 psi Pressure, Cast Copper Silicon Alloy Body
This 1/2 inch lead free brass water pressure reducing valve for low pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa).
-
BrandWATTS®
-
UPC098268329414
-
Manufacturer Part Number0009236
-
CountryUSA|Canada
-
Temperature Rating33 to 160 deg F
-
Pressure Range10 to 35 psi
-
Top to Inlet Center7 in
-
MediaWater
-
Nominal Size1/2 in
-
SeriesLF25AUB-Z3
-
Inlet to Outlet Length5-3/8 in
-
Softgoods MaterialReinforced EPDM Diaphragm/Polymer Seat
-
Body MaterialCast Copper Silicon Alloy
-
End StyleFNPT Union x FNPT
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- Low pressure applications
- Integral stainless steel strainer removable for cleaning
- Sealed spring cage with stainless steel cage screws
| Competitor Name | Cross-Reference Number |
|---|---|
| Ferguson | WLF25AUBLPZ3D |
-
Alternative Part NumberLF25AUB-LP-Z3 1/2
-
UNSPSC40141652
-
Package DescriptionEACH
-
Standards/ApprovalsANSI A112.26.2|ASSE Standard 1003|CSA Standard B356|IAPMO Listed|MIL-V-18146B Type I|NSF Approved|Southern Standard Plumbing Code|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 year Limited
-
Specification Sheet
-
Instruction/Installation Manual
