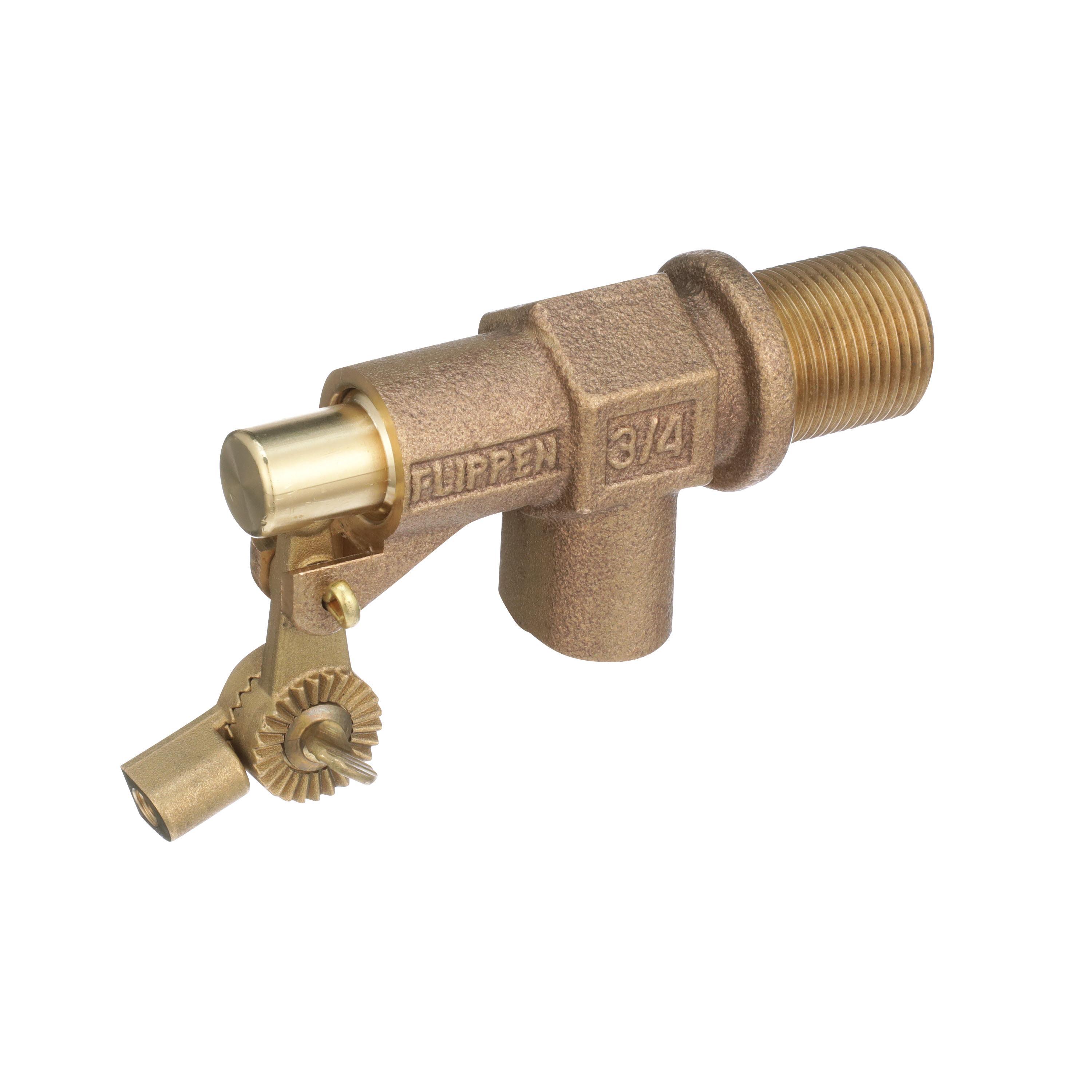

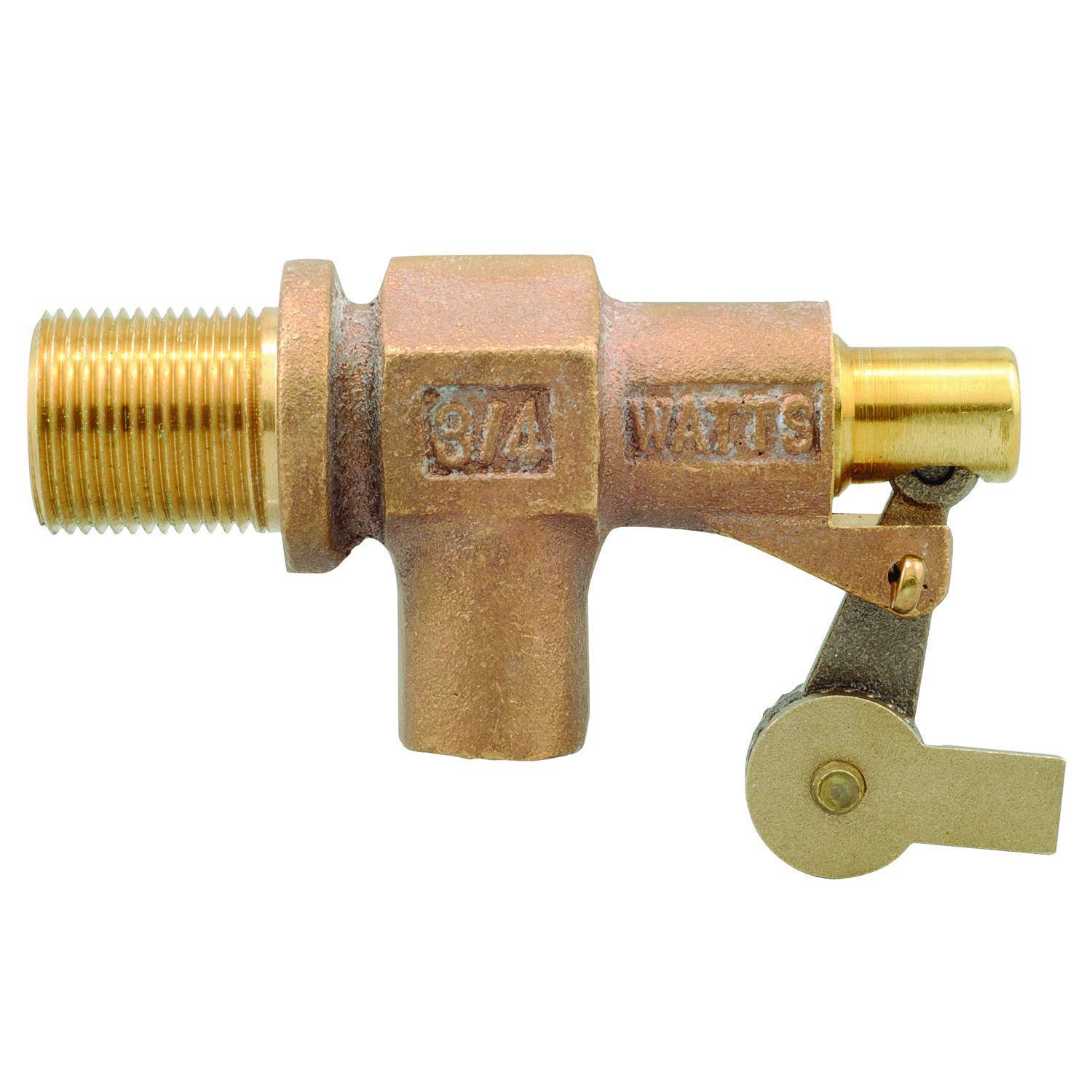

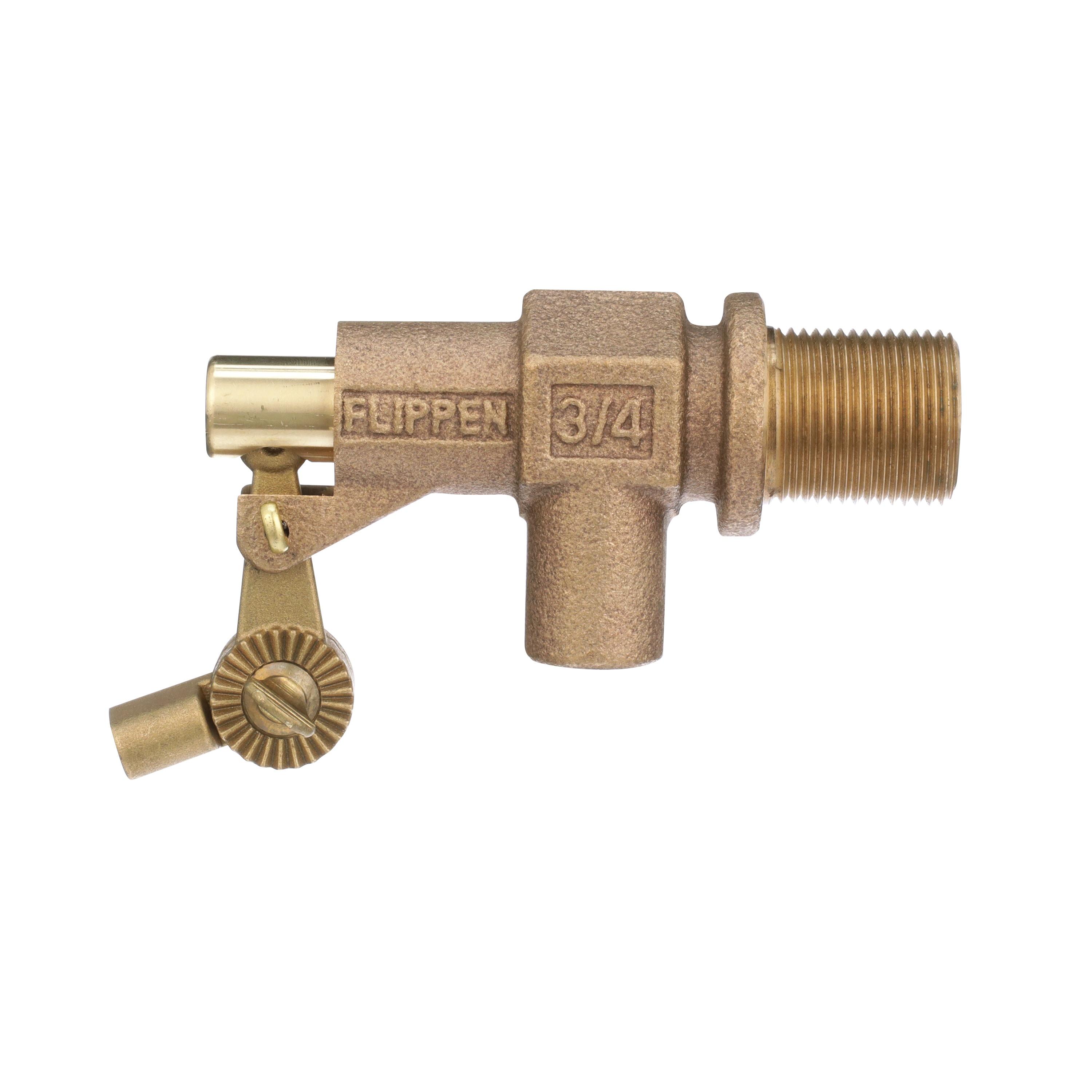

WATTS® 0780007 Standard Duty Mechanical Float Valve, 3/4 in Nominal, Machine Flange x Male Straight Pipe Threaded End Style, 53 gpm Flow Rate, 165 psi Pressure, Import
This 3/4 inch heavy duty mechanical float valve is used in commercial, industrial, and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It is ideal for use in air conditioning, refrigeration, and irrigation systems. This valve has a bronze body with a machine flange on the inlet side with 3/4 inch female NPT pipe threaded inlet connection and male straight-pipe threaded for locknut outlet connection. It has serrated arms for easy adjustment of water level, bronze long and short arms, replaceable seals, and no-jam single lever action. The maximum pressure is 165 psi (11.4 bar).
-
BrandWATTS®
-
UPC098268090901
-
Manufacturer Part Number0780007
-
CountryUSA|Canada
-
Temperature Rating180 deg F
-
Pressure Rating165 psi
-
Flow Rate53 gpm
-
TypeStandard Duty
-
Rod Thread1/4-20
-
Mounting TypeTank Wall
-
Nominal Size3/4 in
-
Domestic/ImportImport
-
Body MaterialBronze
-
End StyleMachine Flange x Male Straight Pipe Threaded
- Machined flange
- Serrated arms
- Replaceable seals
- Non-threaded outlet
- Machined flange
-
Alternative Part Number750 3/4
-
UNSPSC40141610
-
Package DescriptionEACH
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Warranty1 year Limited
-
Catalog
-
Specification Sheet
