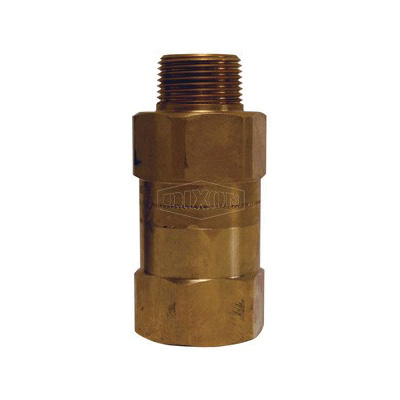

Dixon® SCVS6 Safety Check Valve, 3/4 in, Brass Body
Dixon® SCVS6 Safety Check Valve, 3/4 in, Brass Body
-
BrandDixon®
-
Manufacturer Part NumberSCVS6
-
CountryUSA
-
Temperature Rating250 deg F
-
Pressure Rating350 psi
-
Flow Rate160 to 180 scfm
-
Nominal Size3/4 in
-
Dimensions3-9/16 in L
-
Body MaterialBrass
- High flow valve to provide optimum performance
- Controls excess air flow (scfm) in only one direction

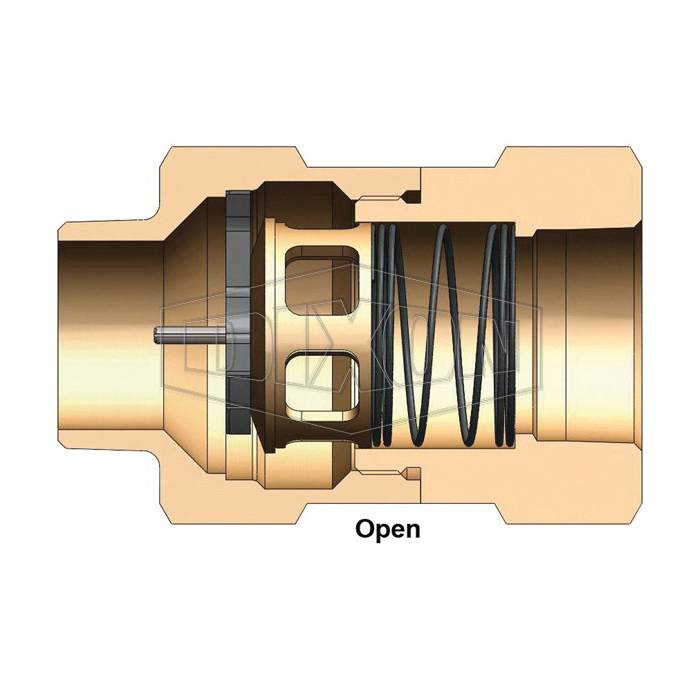

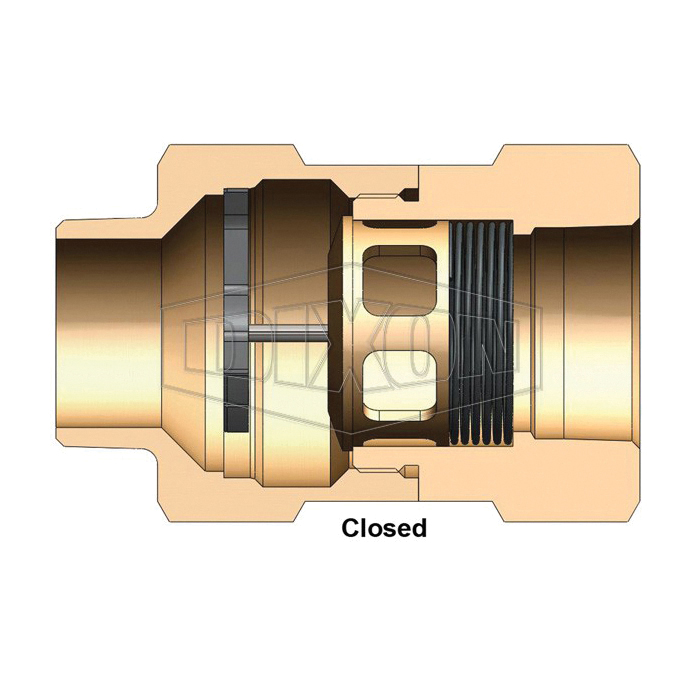

- Automatically senses change in air flow and shuts off the flow in the event of a surge in excess of valve flow rating thus preventing hose whip
- Solid brass body and valve
- Stainless steel spring and roll pin
- Does not prevent backflow
- Prop65: This product contains a chemical known to the state of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC40141600
-
Package Description10/BX
-
WarrantyLimited
-
