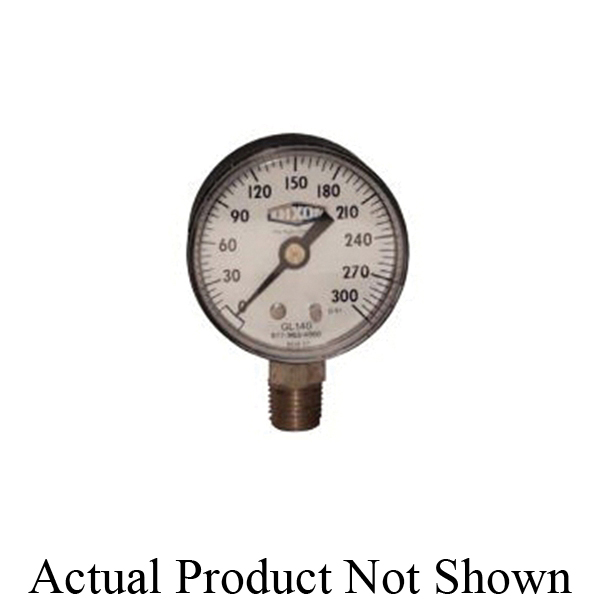

Dixon Valve 2"-FACE 1/4"BTM 60-PSI DRY GAUGE DXN GL-120
Midland Industries 80-003 Dry Standard Pressure Gauge, 0 to 60 psi, 1/4 in Connection, 2 in Dial
-
BrandMidland Industries
-
UPC089109708314
-
Manufacturer Part Number80003
-
CountryUSA
-
Temperature Rating-40 to 150 deg F
-
MaterialSteel
-
Pressure Range0 to 60 psi
-
TypeDry Standard
-
Connection Size1/4 in
-
Mounting TypeLower
-
Accuracy+/- 3-2-3 %
-
Dial Diameter2 in
-
Dimensions2.07 in Dia x 1.03 in D
- For long, reliable service under rugged conditions
- Black aluminum pointer
- C-shaped bronze safety bourdon tube
- Do not use in connection with drinking water
- Wash hands after handling
- Polycarbonate window
- Corrosion-resistant, ABS plastic case
-
UNSPSC41112400
-
Package Description1/PK
-
Standards/ApprovalsPROP65: http://www.P65Warnings.ca.gov
-
Warranty1 Year
-
Full Engineering Drawing
