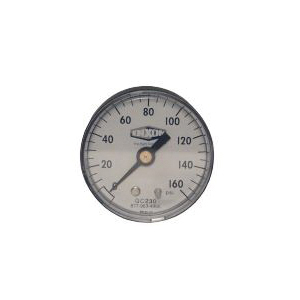

Dixon® GC230 Standard Dry Gauge, 0 to 160 psi, 1/4 in Connection, 2 in Dial, +/- 3-2-3 %
Dixon® GC230 Standard Dry Gauge, 0 to 160 psi, 1/4 in Connection, 2 in Dial, +/- 3-2-3 %
-
BrandDixon®
-
Manufacturer Part NumberGC230
-
CountryUSA
-
Temperature Rating-40 to 150 deg F
-
MaterialABS Case
-
Pressure Range0 to 160 psi
-
TypeStandard Dry
-
Connection Size1/4 in
-
Mounting TypeCenter Back
-
Accuracy+/- 3-2-3 %
-
Dial Diameter2 in
- PowerFlex™ movement with polyester segment, designed to resist the effects of shock, vibration and pulsation
- C-shaped bronze safety bourdon tube (600 psi and lower)
- Helical wound bronze safety bourdon tube (1000 psi and higher)
- Black aluminum pointer
- Do not use in connection with drinking water
- Wash hands after handling
- Polycarbonate window
- Corrosion-resistant, ABS plastic case
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 58CT71 |
-
UNSPSC41112412
-
Package Description10/BX
-
Standards/ApprovalsASME B40.100 Grade B
-
