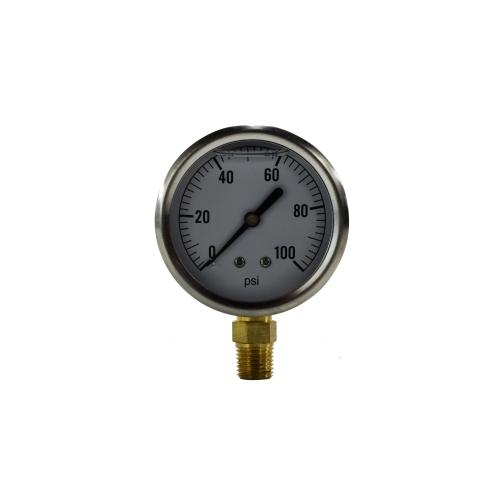

DIXON GLS-415 Liquid filled Gauge, 0 to 100 psi Pressure, 1/4 in Connection, 2-1/2 in Dia Dial, +/- 1.5 % Accuracy
Midland Industries 80064 Liquid Filled Gauge, 0 to 100 psi Pressure, 1/4 in Connection, 2-1/2 in Dia Dial, +/- 1.5 % Accuracy
-
BrandMidland Industries
-
UPC089109707492
-
Manufacturer Part Number80064
-
CountryUSA
-
Temperature Rating-104 to 158 deg F
-
MaterialStainless Steel
-
Pressure Range0 to 100 psi
-
Connection Size1/4 in
-
Mounting TypeLower
-
Accuracy+/- 1.5 %
-
Dial Diameter2-1/2 in
-
TypeLiquid Filled
-
Dimensions2.8 in Dia x 1.28 in D
- PowerFlexâ„¢ movement with polyester segment, designed to resist the effects of shock, vibration and pulsation
- Copper alloy bourdon tube
- Do not use in connection with drinking water
- Wash hands after handling
- Polycarbonate window
- White aluminum dial with black numbers and black aluminum pointer
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | DGLS415 |
-
UNSPSC41112412
-
Package Description10/BX
-
Standards/ApprovalsPROP65: http://www.P65Warnings.ca.gov
-
Warranty1 Year
-
Full Engineering Drawing
