Klein Tools DUAL-RANGE VOLTAGE TESTER W/LIGHT KLE NC-VT-3-P

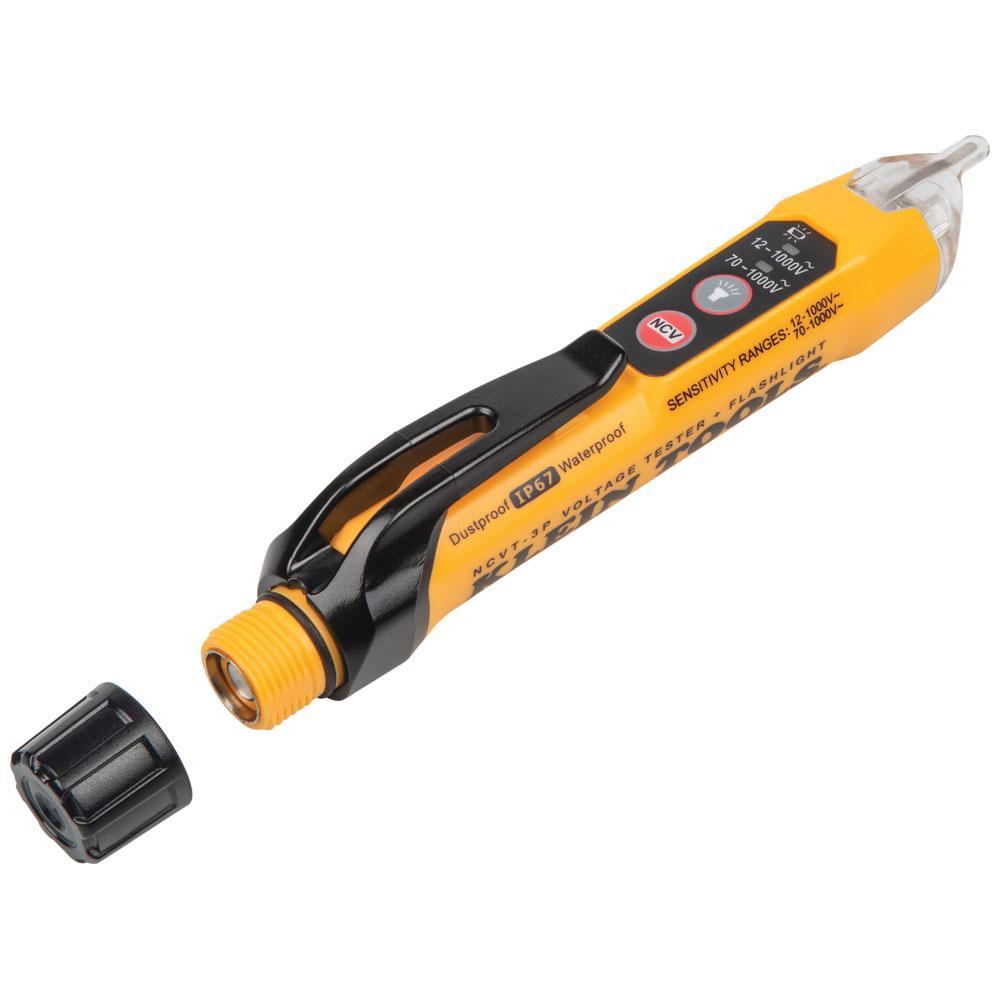

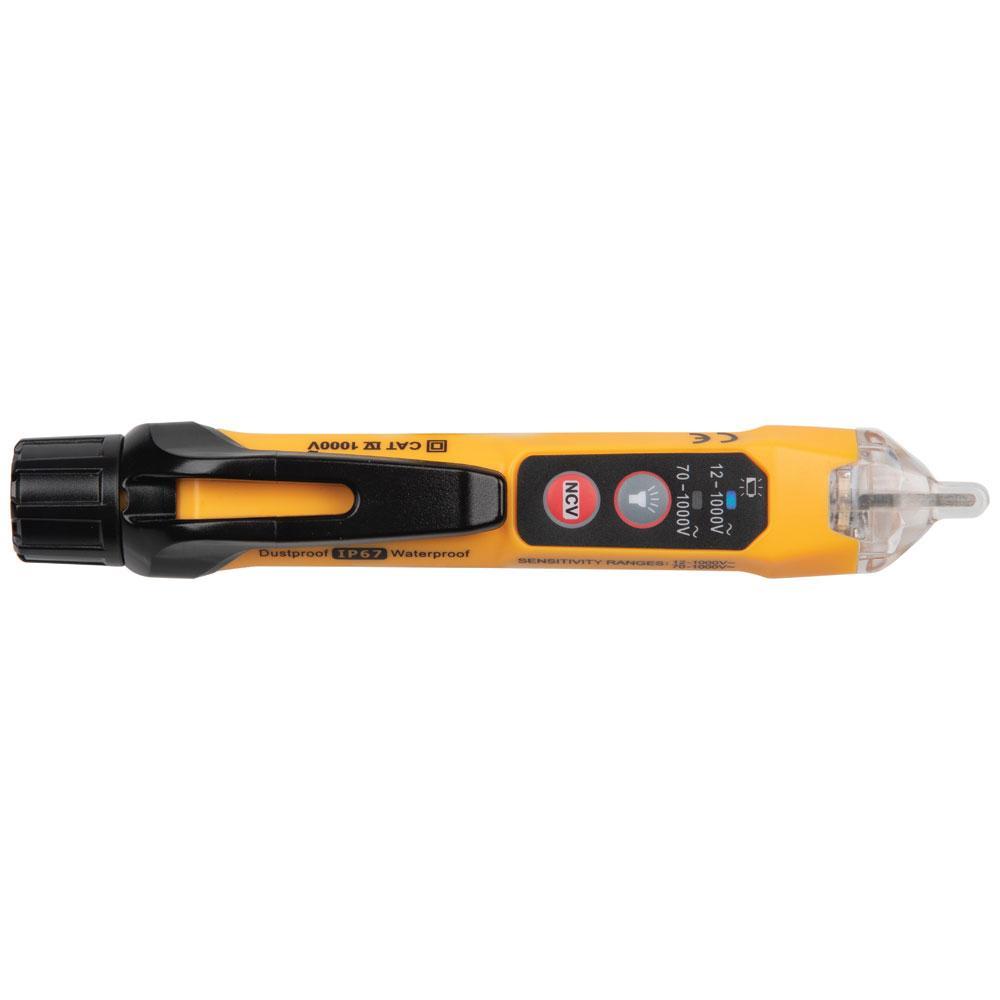

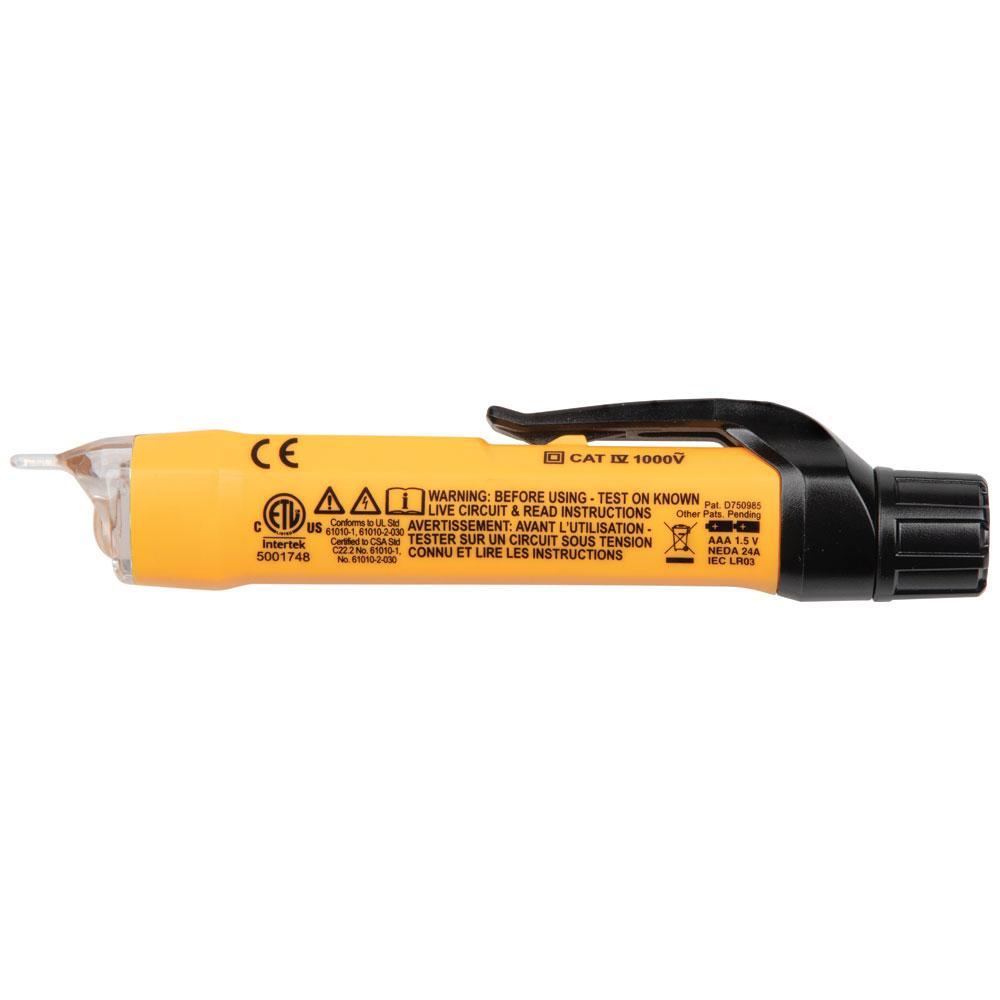

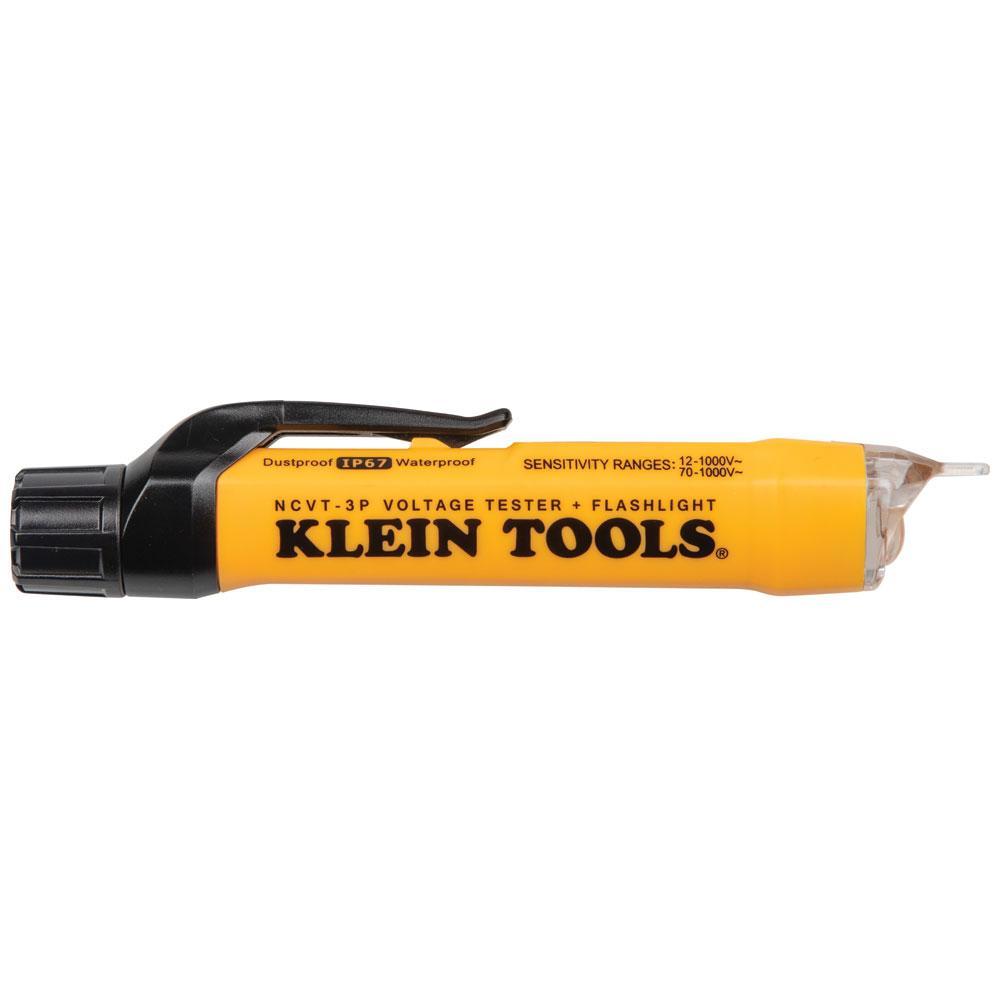

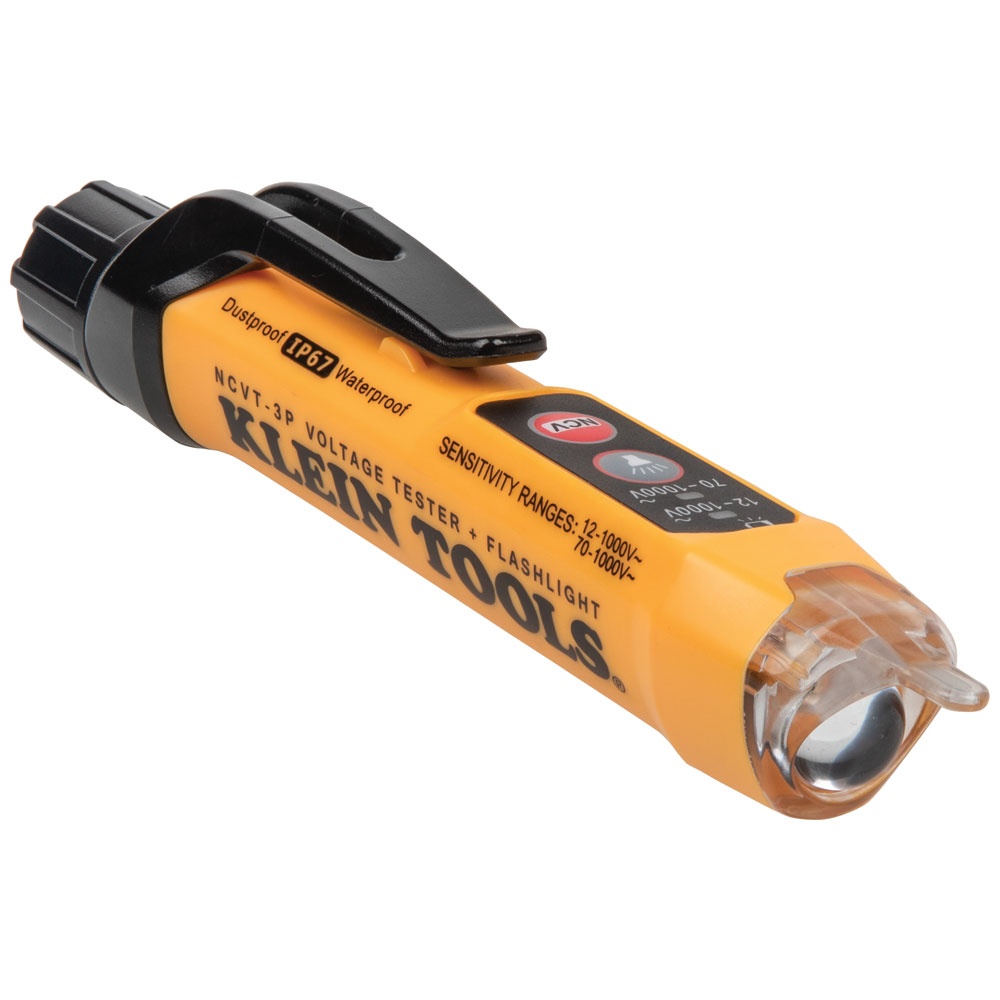

The NCVT-3P is a non-contact voltage tester with an integrated flashlight. The voltage sensor detects 12 to 1000V AC and indicates the presence of voltage in cables, cords, circuit breakers, light fixtures, switches, outlets and wires as well as AC voltage in doorbells, thermostats, low voltage lighting and irrigation systems. Includes both visual and audible signals. The NCVT-3P is rugged enough for any job site.
-
BrandKlein®
-
UPC092644693236
-
Manufacturer Part NumberNCVT3P
-
CountryUSA|Canada
-
MaterialABS
-
Maximum Measurable Voltage70 to 1000 V AC/12 to 1000 V AC
-
Frequency Rating50 to 500 Hz
-
TypeDual Range Non-Contact
-
Battery(2) AAA
-
Dimensions5.7 in L x 0.93 in W x 1.09 in H
-
Enclosure TypeIP67
- Dual modes indicates low voltage (12 to 70V AC) and standard voltage (70 to 1000V AC) allowing broad application
- Detects voltage with simultaneous visual and audible voltage indicators
- Bright flashlight illuminates work area and may be used independent of voltage detection function
- Lightweight, compact tool with pocket clip provides convenient storage and quick access
- Auto power-off feature conserves and extends battery life
- Screw-thread battery cap with O-ring ensures protection against dust and water ingress
- 6.6-Foot (2 m) drop protection
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 61HH68 |
-
Alternative Part Number15653584
-
UNSPSC41113637
-
IDEA Index ID15653584
-
Package DescriptionEACH
-
Standards/ApprovalsCAT IV 1000 V|CE Certified|ECCN: EAR99|PROP65: Cancer and reproductive harm - see www.P65Warnings.ca.gov for more information
-
WarrantyLimited
-
SDS
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
