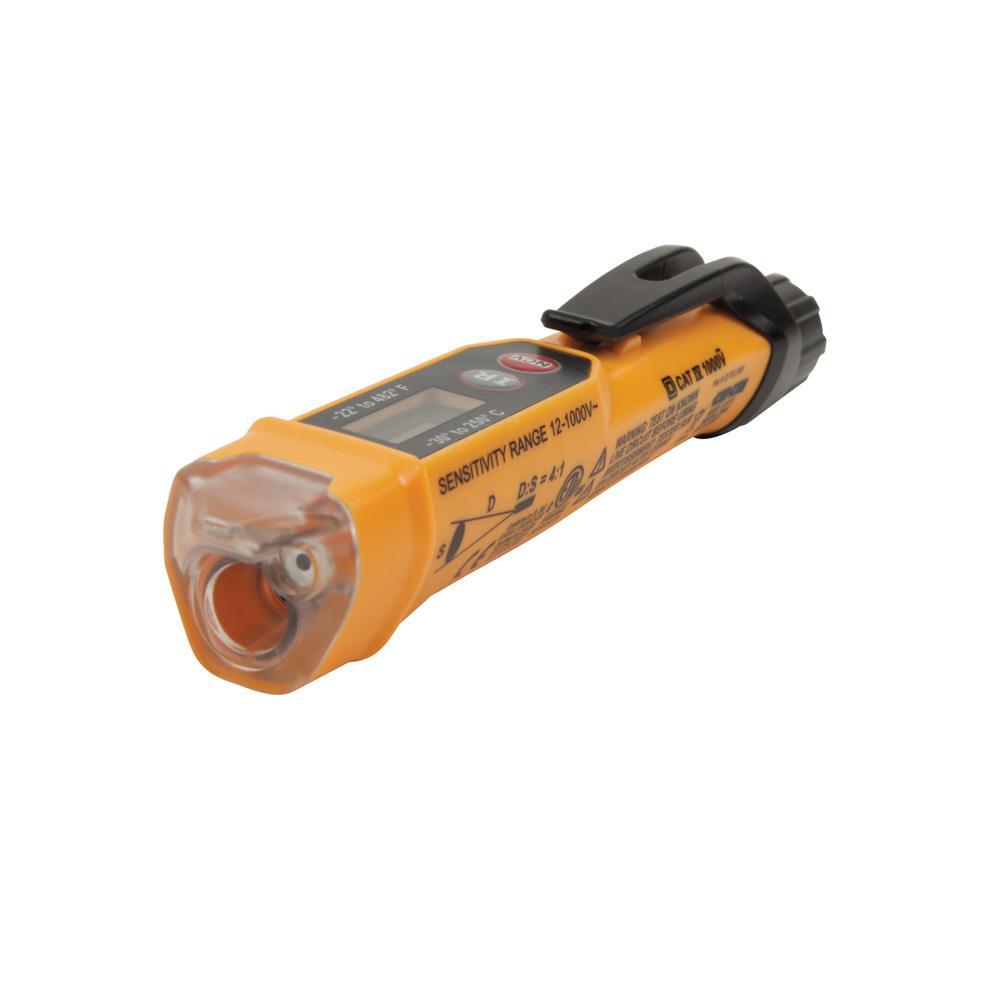

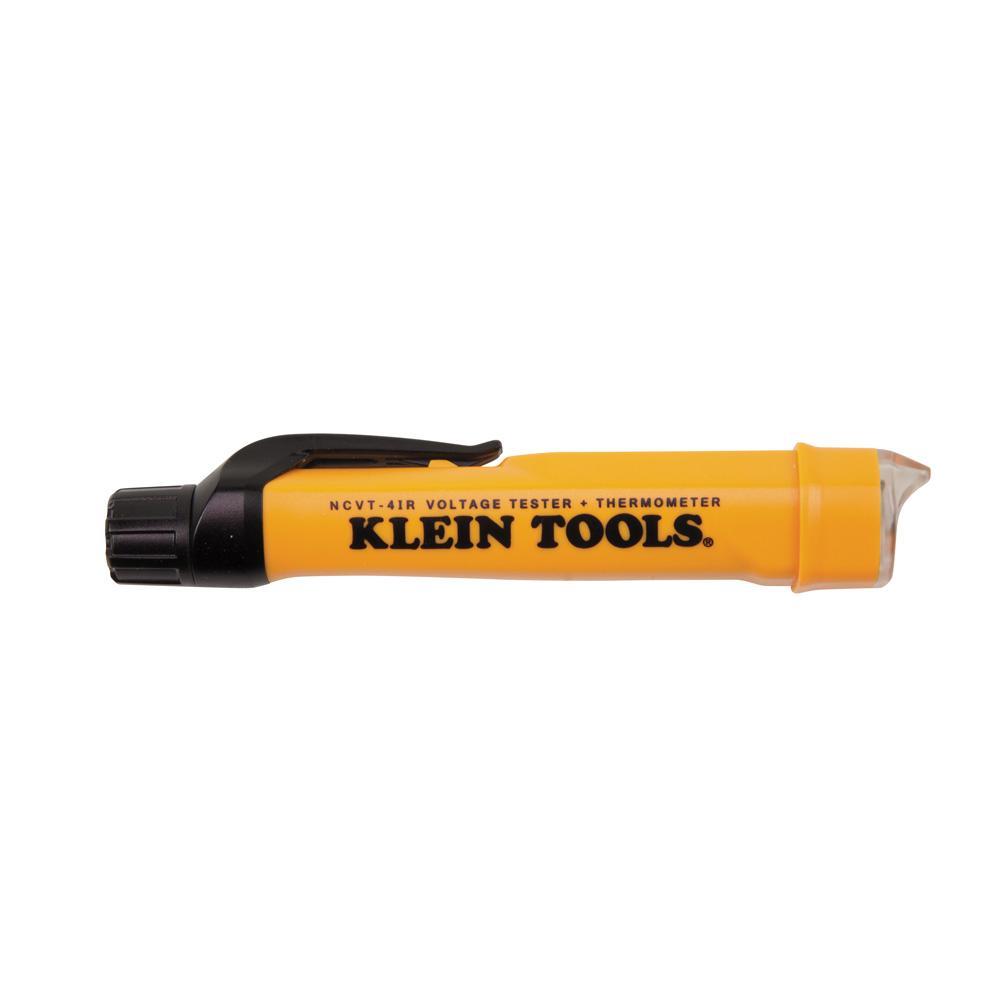

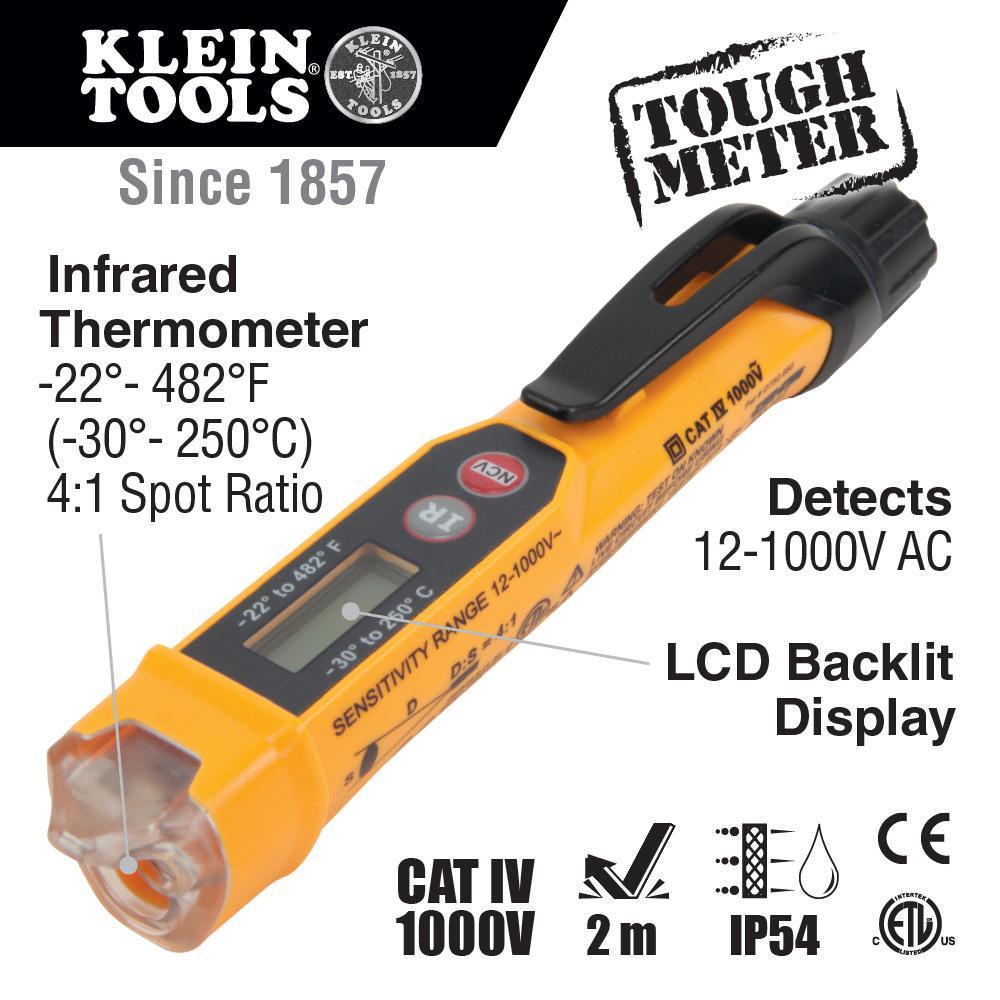

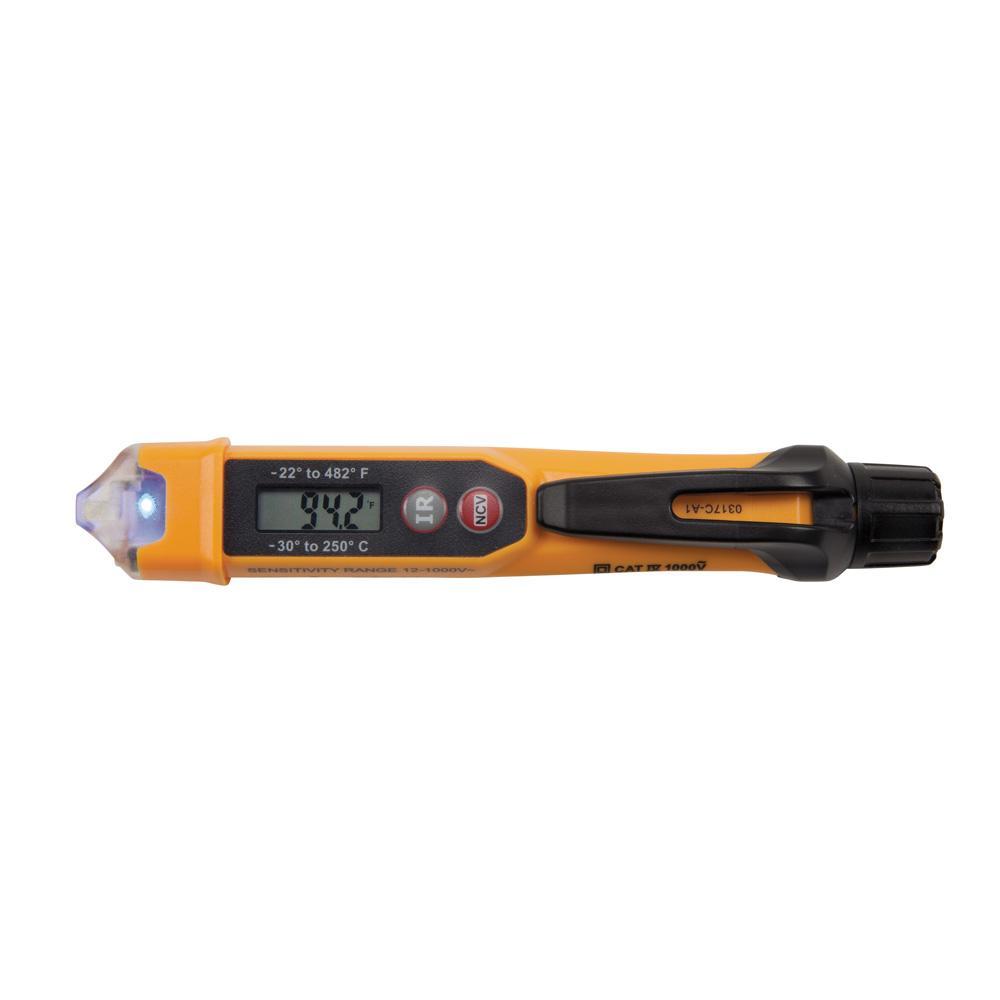

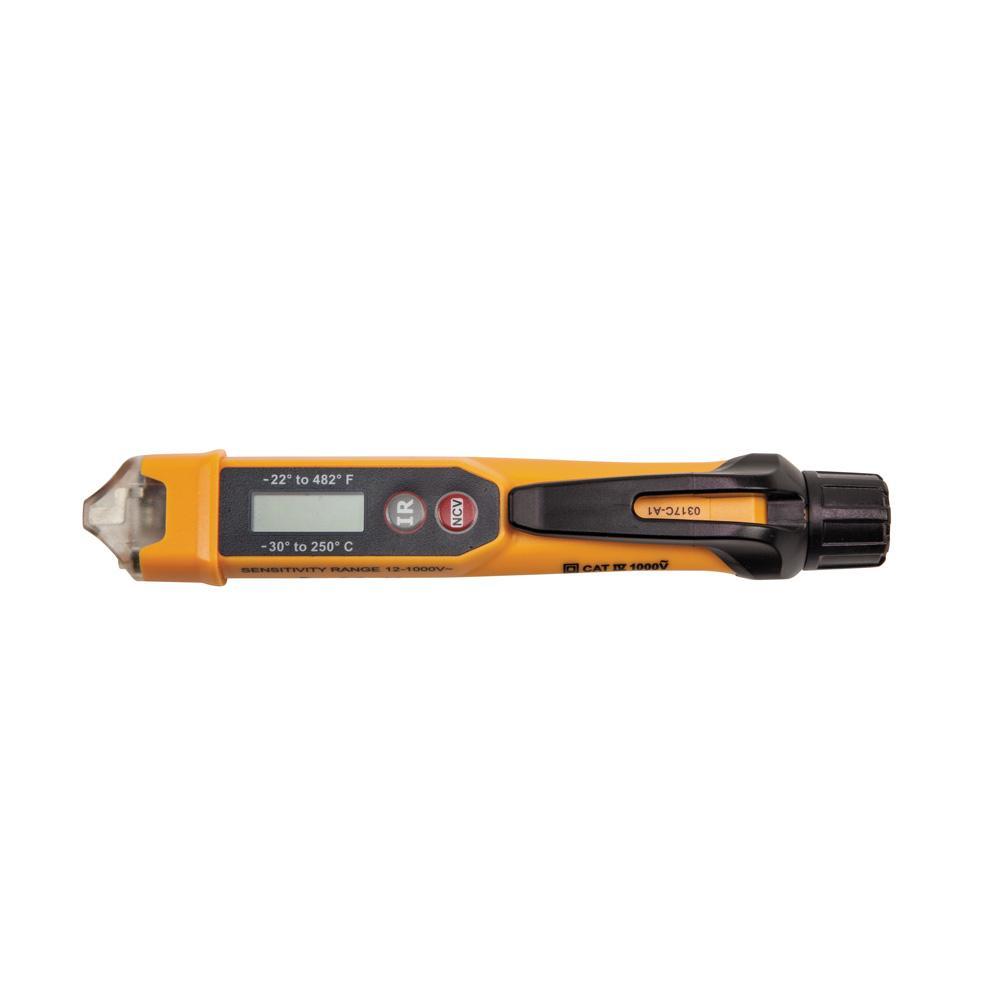

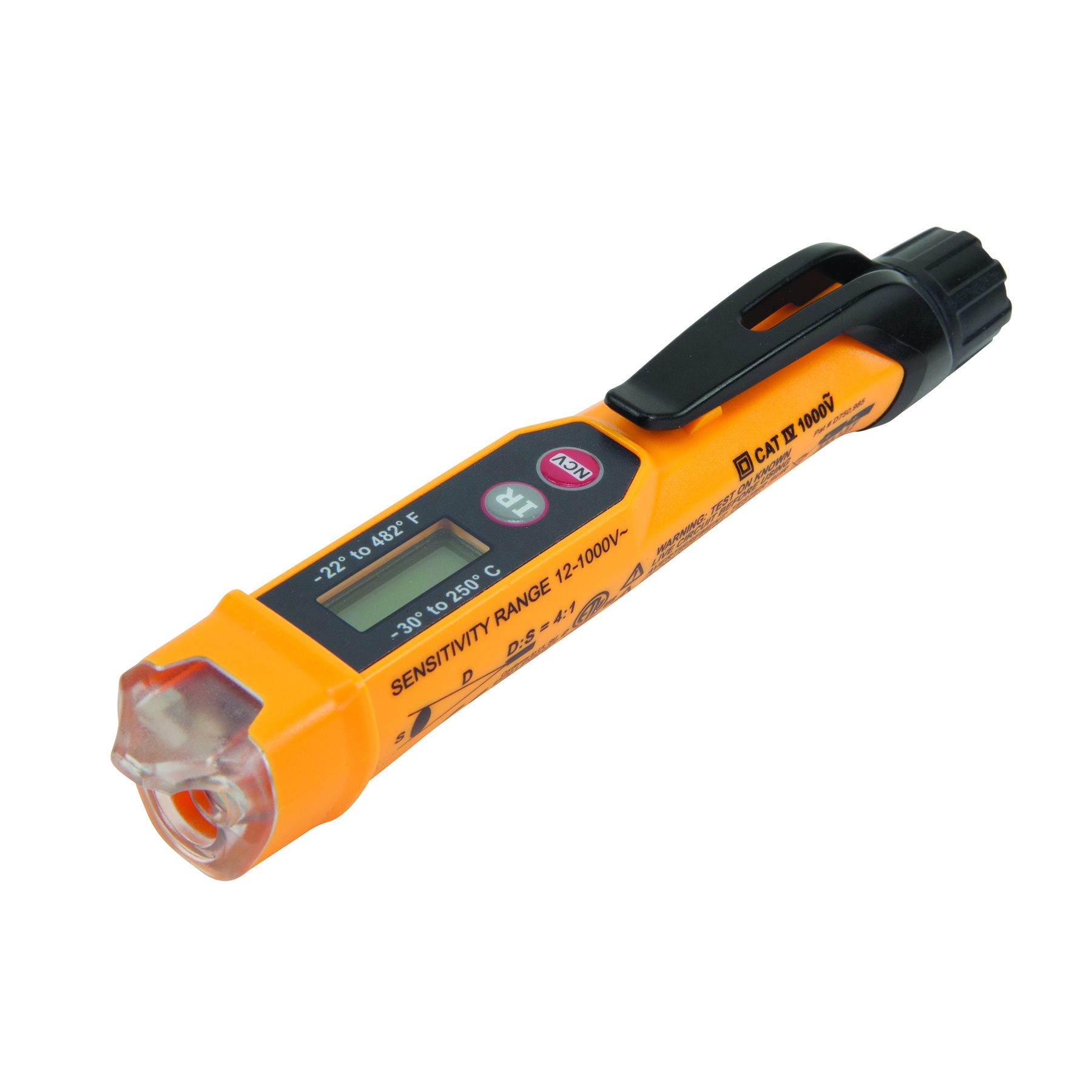

KleinĀ® NCVT-4IR Non-Contact Voltage Tester Pen With Infrared Thermometer, 12 to 1000 V AC Max Measurable
Klein Tools NCVT-4IR is a voltage tester that provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires; as well as infrared (IR) thermometer measurements, making it the perfect choice for HVAC professionals.
-
BrandKleinĀ®
-
UPC092644690617
-
Manufacturer Part NumberNCVT-4IR
-
CountryUSA|Canada
-
Maximum Measurable Voltage12 to 1000 V AC
-
Frequency Rating5 to 500 Hz
-
TypeNon-Contact
-
BatteryAAA
-
Dimensions6-1/4 in L x 1-3/16 in W x 1-1/4 in H
-
Display TypeBacklit LCD
-
Distance Range4:1
-
Enclosure TypeIP54
-
Environmental Conditions-20 to 482 deg F
-
Light SourceLED
- Voltage Tester designed specifically for HVAC applications
- Non-Contact Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, and AC voltage in security, entertainment, communications, environmental control, and irrigation systems
- Detects AC voltage from 12 to 1000V with visual and audible indicators
- 4:1 distance-to-spot ratio IR thermometer with user selectable Degrees Fahrenheit or Degrees Celsius from -22 to 482 deg Fahrenheit (-30 to 250 deg Celsius)
- Convenient laser pointer to target measurement area for temperature measurement
- Backlit LCD display with 0.1 deg resolution
- Auto power-off conserves and extends battery life
- Screw-thread battery cap with O-ring ensures dust and water resistance
- Lightweight, compact tool with pocket clip provides easy storage and quick access
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 258X17 |
-
Alternative Part Number14111542
-
UNSPSC41113637
-
IDEA Index ID14111542
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|cETLus Listed|FCC Certified|PROP65: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information
-
SDS
-
Instruction/Installation Manual
-
Owners/User Manual
