Fluke® 3610452 Voltage Detector, 600/1000 V AC/V DC, 1000 to 2500 A, CAT III 1000 V/CAT IV 600 V

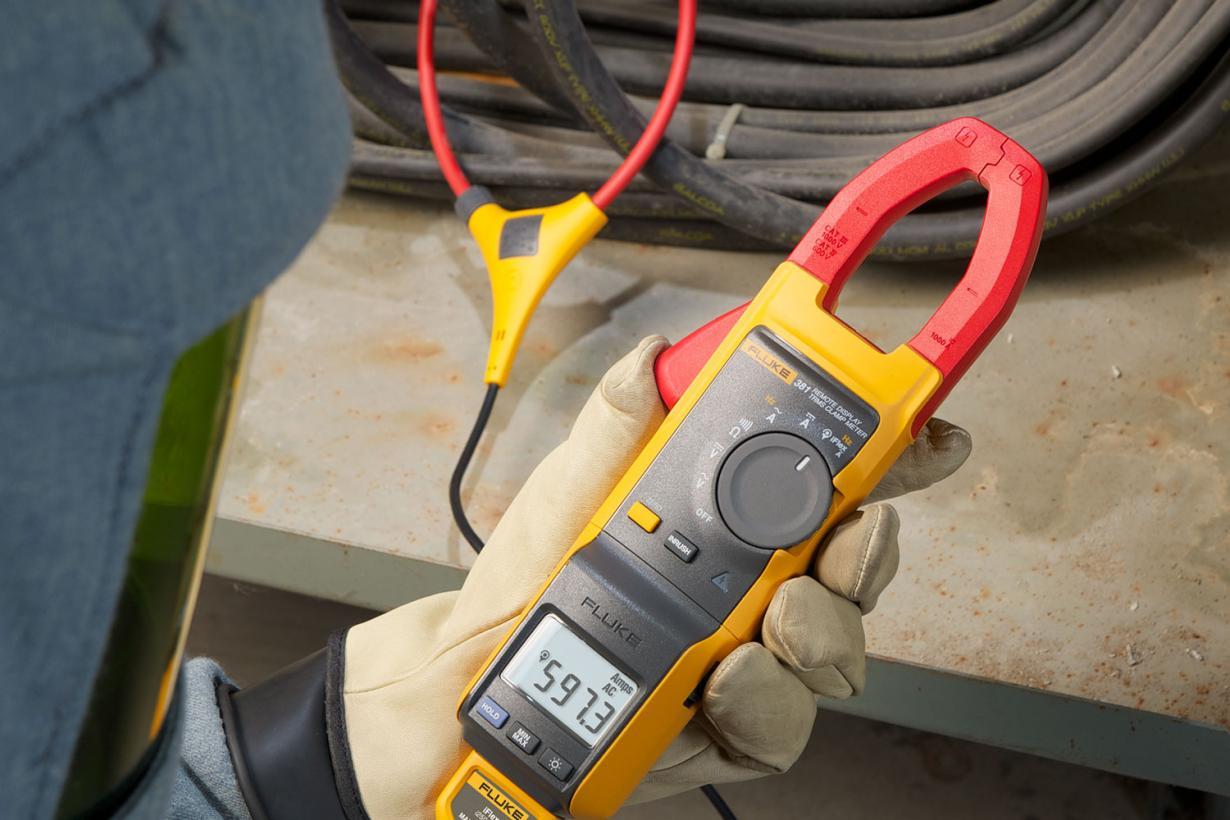

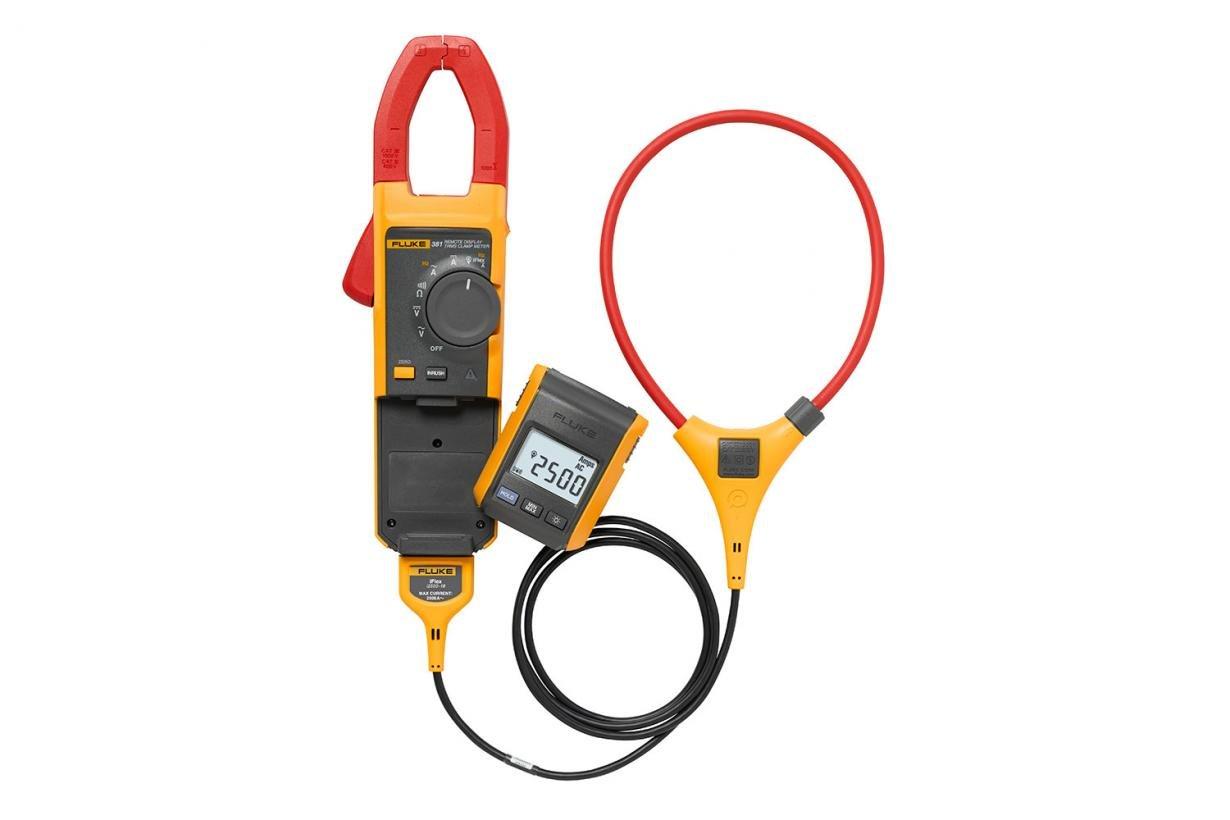

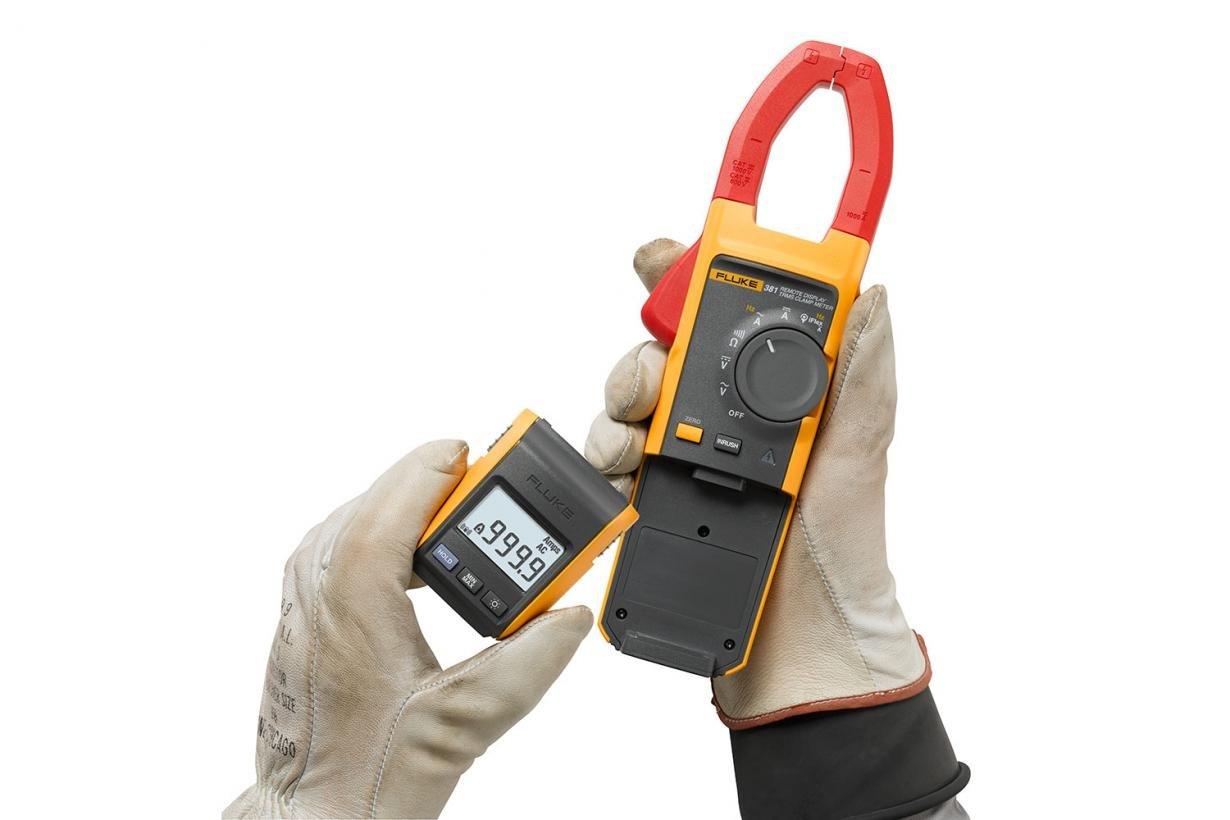

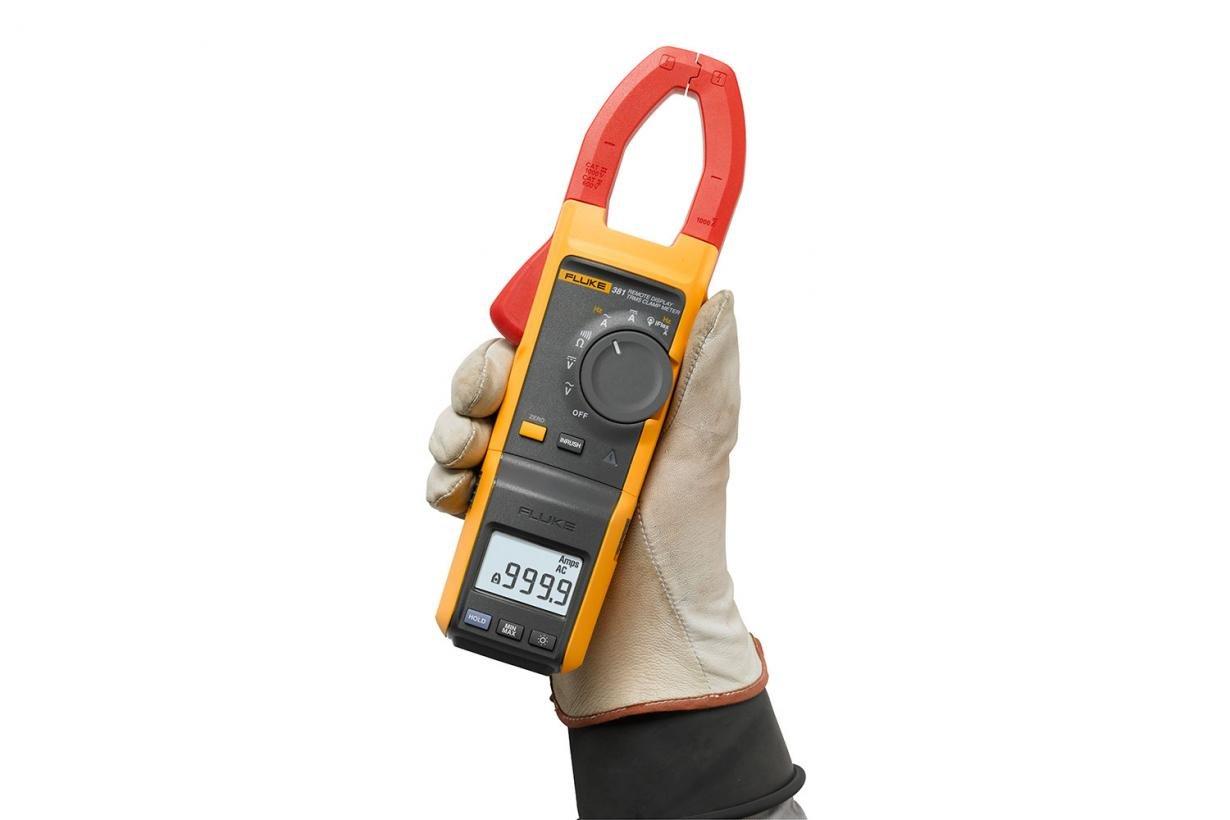

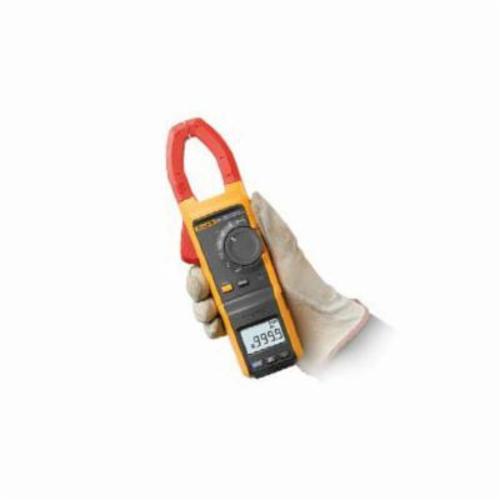

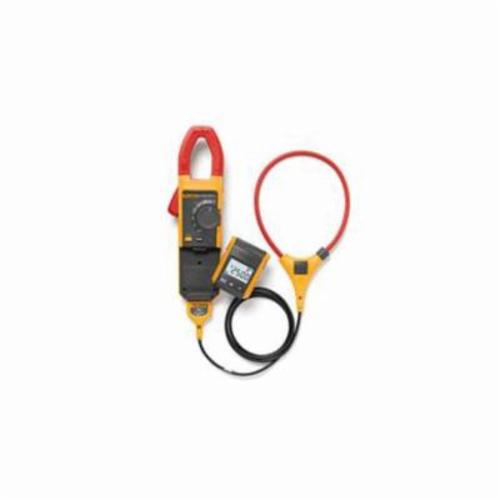

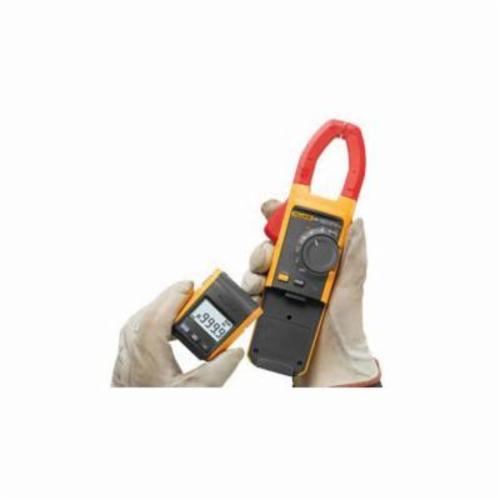

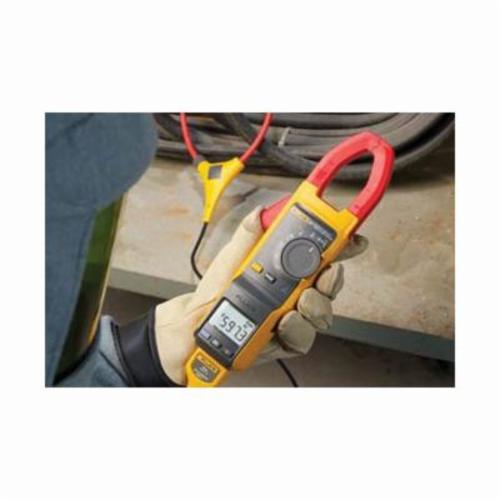

The Fluke 381 is the first clamp meter with a detachable, remote display and iFlex™ flexible current probe for easier, faster, safer measurements.
-
BrandFluke®
-
UPC095969537483
-
Manufacturer Part Number3610452
-
CountryUSA
-
MaterialHard Plastic
-
Frequency Rating500 Hz
-
Resistance60 kOhm
-
AC Current Accuracy2% +/-5 Digits at 999.9 A, 3% +/-5 Digits at 2500 A
-
Voltage Accuracy1.5% +/-5 Digits at 1000 VAC, 1% +/-5 Digits at 1000 VDC
-
Safety RatingCAT III 1000 V/CAT IV 600 V
-
Dimensions277 mm L x 88 mm W x 43 mm H
-
Display TypeRemovable Wireless
-
Jaw Capacity34 mm
-
Operating Temperature-10 to 50 deg C
-
Electrical Ratings999.9 A. 600 VAC, 1000 VDC
-
Temperature Rating-10 to 50 deg C Operation, -40 to 60 deg C Storage
-
Power Source(5) AA Alkaline Batteries
-
Voltage Rating600 V AC/1000 V DC
-
Amperage Rating1000 to 2500 A
- Easy navigation around hard to reach objects with the industry's only 320 x 240 IR camera with a 5.7 in touch screen LCD and a full 240 deg rotating lens
- The largest 5.7 in responsive LCD touch screen for a 320 x 240 infrared camera edit and analyze images on camera
- IFlex flexible current probe expands the measurement range to 2500 A ac
- Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing protective equipment
- Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
- Remote display True-rms AC/DC clamp meter
- 1000 A AC/DC current measurement with fixed jaw
- 2500 A AC current measurement with iFlex flexible current probe
- 1000 V ac and dc voltage measurement
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Frequency measurement to 500 Hz with both jaw and iFlex
- 60 kohm resistance measurement with continuity detection
- 7.5 um to 14 um (long wave) infrared spectral band, 10% to 95% non-condensing relative humidity, 0.03 g2/Hz (3.8 grams)
- < 90 % at 10 to 30 deg C, < 75% at 30 to 40 deg C operating humidity, 0 to 2000 m operating altitude, 0.01% deg C temperature coefficient, 1.3 in or 34 mm max Dia of measurable conductor
- <=30 Ohm measure continuity
- 100 ms measure inrush
- Range 5 to 500 Hz frequency via jaw and flexible current probe, 600 Ohm/6 kOhm/60 kOhm resistance, 2% +/-5 digit (10 to 100 Hz), 5% +/-5 digit (100 to 500 Hz) via jaw, 3% +/-5 digit via flexible current probe AC current accuracy, 1.5% +/-5 digit (20 to 500 Hz) AC voltage, 1% +/-5 digit DC voltage accuracy
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6FXH3 |
-
UNSPSC41113600
-
Package DescriptionBOX
-
Standards/ApprovalsEN 61326-1:2006|EN 61326-2-2:2006|ETSI EN 300 328 V1.7.1:2006|ETSI EN 300 489 V1.8.1:2008|FCC Part 15 SubPart C Section 15.207|FCC Part 15 SubPart C Section 15.209|FCC Part 15 SubPart C Section 15.249|FCCID: T68-F381RSS-210 IC: 6627A-F381|ANSI/ISA S82.02.01:2004|CAN/CSA C22.2 File No. 61010-1-04|IEC/EN 61010-1:2001 to 1000 VAC/VDC CAT III/600 VAC/VDC CAT IV|ECCN: 3A992|PROP65: This product is in compliance with Prop65, it is not known to contain any chemicals associated with this regulation
-
Warranty3 years
-
Owners/User Manual
