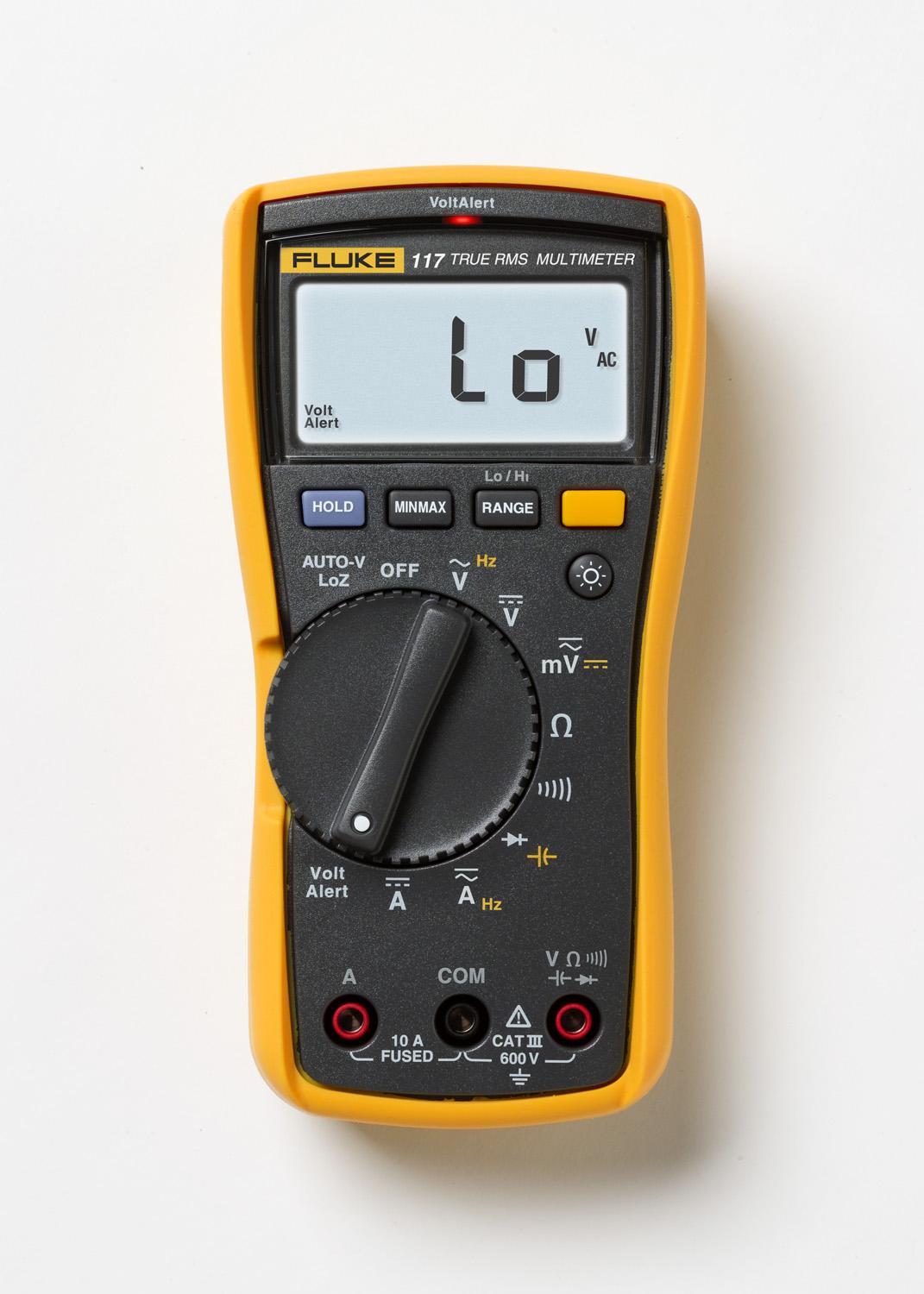

Fluke® VoltAlert™ FLUKE-117 Digital Multimeter, 600 VDC/VAC, 10 A, 40 MOhm Measuring, 600 V AC/DC, 10 A, 0.1 Ohm to 40 MOhm, Digital Display
Fluke® 117 digital multi-meter, the choice for commercial applications. Designed by electricians. Engineered by Fluke®. The compact Fluke® 117 True-RMS™ digital multi-meter is optimized to help you keep commercial buildings, hospitals and schools running right. The advanced features of the Fluke® 117 help you get the job done, quickly and safely. Integrated non-contact voltage detection helps you identify energized circuits. The AutoV/LoZ function prevents false readings caused by ghost voltage. The Fluke® 117 delivers True-RMS™ AC voltage and current readings with 6000 count resolution. It provides min max average readings and measures frequency and capacitance. The battery door is easy to access, so you and your Fluke® 117 can stay on the job. Fluke® 117 multi-meters are independently tested for safe use in CAT III 600 V environments. And check out other members of the Fluke® 110 family, Fluke® 113 utility multi-meter, the Fluke® 114 electrical multi-meter, the Fluke® 115 multi-meter and the Fluke® 116 HVAC multi-meter with temperature and microamps.
-
BrandFluke®
-
UPC095969324205
-
Manufacturer Part NumberFLUKE-117
-
CountryUSA
-
Capacitance1000 uF
-
Temperature Rating14 to 122 deg F
-
MaterialHard Plastic
-
Measuring Range600 VDC/VAC, 10 A, 40 MOhm
-
Frequency Rating5 Hz to 50 kHz
-
Resistance0.1 Ohm to 40 MOhm
-
Accuracy0.5% + 2 VAC
-
Voltage Rating600 V AC/DC
-
Safety RatingCAT III 600 VAC/VDC
-
Amperage Rating10 A
-
Battery Type9 VDC Alkaline, NEDA 1604A, IEC 6LR61
-
Dimensions1.81 in L x 3.35 in W x 6.58 in H
-
Diode TestYes
-
Display TypeDigital
-
Peak HoldNo
- VoltAlert™ technology for non-contact voltage detection
- AutoVolt automatic AC/DC voltage selection
- Low input impedance helps prevent false readings due to ghost voltage
- Large white LED backlight to work in poorly lit areas
- True-RMS for accurate AC measurements on non-linear loads
- Minimum maximum/average with elapsed time to record signal fluctuations
- Compact ergonomic design for one handed operation
- Compatible with optional magnetic hanger (ToolPak®) for hands-free operation
- 2 deg pollution
- 0.5% 2 VDC accuracy
- AC voltage at 45 Hz to 500 Hz 600 V with accuracy of +/-( 2% 3), at 500 Hz to 1 kHz 600 V with accuracy of +/-(4% 3), at 45 Hz to 500 Hz 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(1% 3), at 500 Hz to 1 kHz 600 mV, 6 V, 60 V, 600 V with accuracy of +/-(2% 3)
- Resistance range - 600 Ohm with accuracy of +/-(0.9% 2), 6 kOhm, 60 kOhm, 600 kOhm, 6 MOhm with accuracy of +/-(0.9% 1), 40 MOhm with accuracy of +/-(1.5% 2)
- Capacitance range 1000 nF, 10 uF, 100 uF, 100 uF to 1000 uF with accuracy of +/-(1.9% 2), greater than 1000 uF with accuracy of +/-(5% 20)
- Frequency range 99.99 Hz, 999.9 Hz, 9.999 kHz, 50 kHz with accuracy of +/- (0.1% 2)
- 400 hours typical alkaline, without backlight
- Digital 6000 count, update 4/s display
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 1GAJ2 |
-
Alternative Part Number2538815
-
UNSPSC41113630
-
Standards/ApprovalsCE Marking|CSA Certified|ECCN: 3A992
-
Specification Sheet
