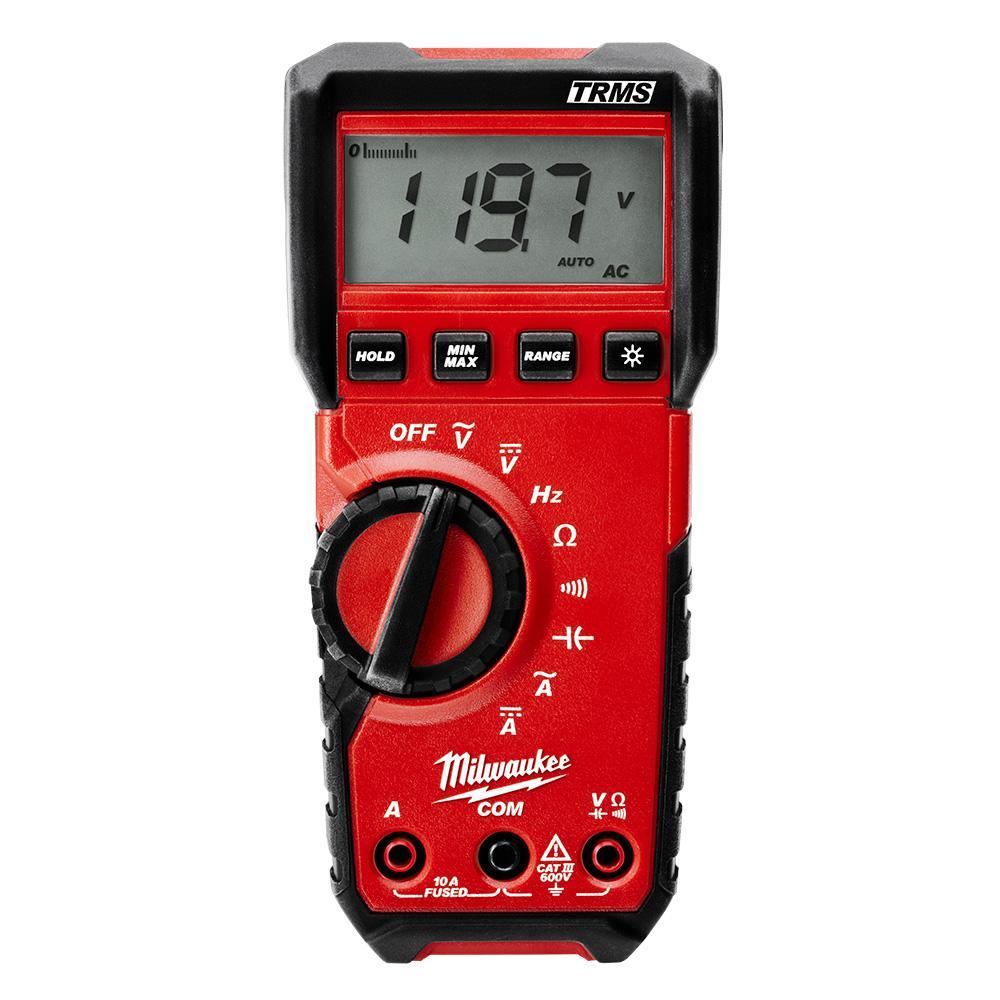

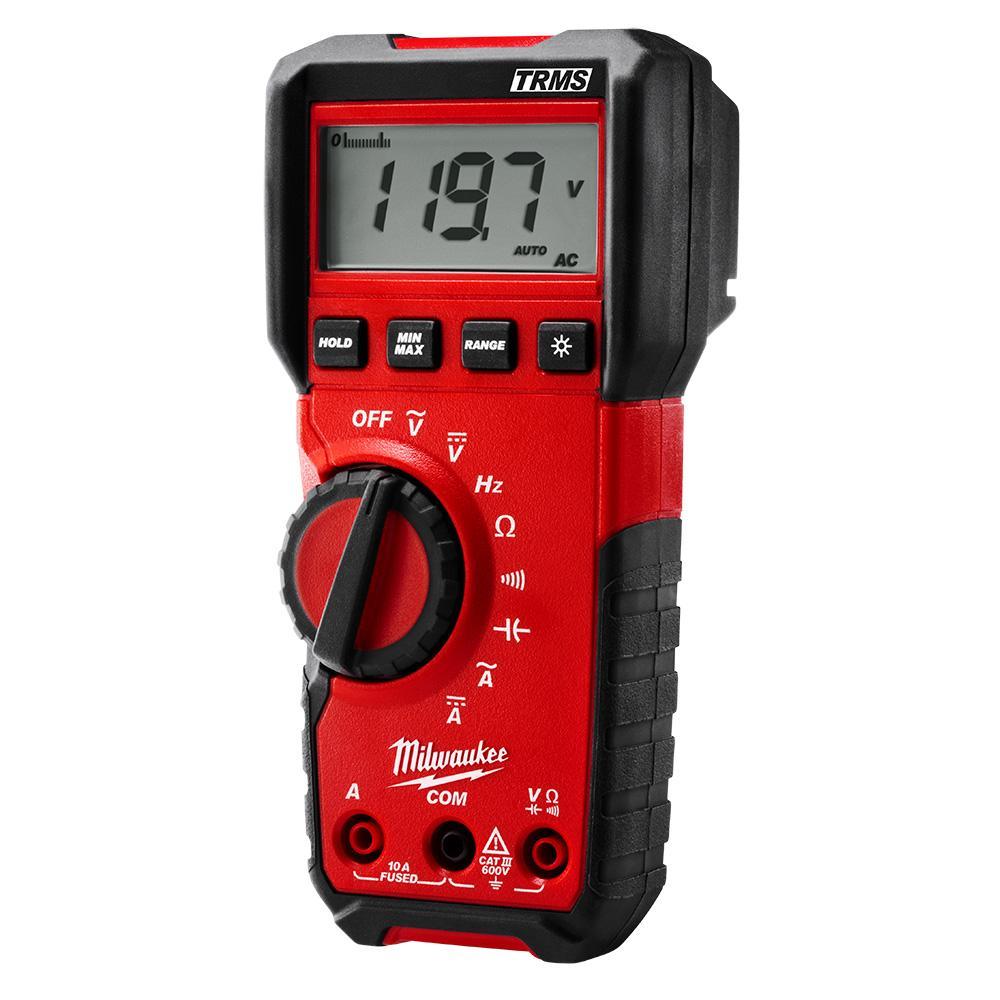

Milwaukee® 2216-20 Heavy Duty Digital Multimeter, 6 mV to 600 V AC/600 mV to 600 V DC, 10 A, 40 mOhm, Black on White LCD Display
Heavy duty True-Rms meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician; includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 digital multimeter features: true RMS measurement to accurately measure all applications; CATIII 600 V for increased safety in demanding electrical environments; AC voltage range of 6 millivolts to 600 V; DC voltage range of 600 millivolts to 600 V DC; resistance measurement from 600 ohms to 40 m Ohm; frequency measurement from 10 Hz to 50 kilohertz; detects continuity at less than 30 ohms; current measurement to 10 A AC/DC; hold function, min/max function and digital bar graph readout; black on white display and backlight for easier reading; rugged over-molding for improved durability and user grip; proprietary rail system for mounting accessories.
-
BrandMilwaukee®
-
UPC045242236923
-
Manufacturer Part Number2216-20
-
CountryUSA|Canada
-
Capacitance1000 uF
-
Temperature Rating-40 to 752 deg F
-
MaterialPolycarbonate/Rubber Overmold
-
Frequency Rating10 Hz to 50 kHz
-
Resistance40 mOhm
-
ColorBlack/Red
-
TypeHeavy Duty
-
Accuracy+/-0.003% + 2 Digits
-
Voltage Rating6 mV to 600 V AC/600 mV to 600 V DC
-
Safety RatingCat III 600 V AC
-
Amperage Rating10 A
-
Battery TypeAA Alkaline
-
Dimensions6-1/2 in L
-
Display TypeBlack on White LCD
- Frequency measurements from 10Hz to 50kHz
- Rugged over-molding increases durability and user grip
- Wide Voltage range to 600 AC /DC volts
- Wide voltage range to 600 AC /DC volts
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 6JHY3 |
| Fastenal | 0762334 |
-
Alternative Part Number13925416
-
UNSPSC41113630
-
IDEA Index ID13925416
-
Includes(1) Electrical Test Lead Set, (2) AA Batteries and (1) Manual
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
Warranty5 Year Limited Warranty
-
